USR5686G, 56K/V.92, 1 x RS232, 2 x RJ11, 244.9g, Black
The USRobotics 56K Serial Controller Faxmodem combines the superior performance and reliability of a controller-based modem with the convenience of V.92 and V.22 technologies — with up to 75% less energy use. V.22 Fast Connect, which reduces the connection sequence time for very small data transfers, and secure connectivity make this modem ideal for Point of Sale (POS) systems. The modem also enables secure Machine to Machine (M2M) applications or Remote Server Management applications for Out-of-Band remote diagnostics, troubleshooting, maintenance and back-ups of servers.
USRobotics USR5686G modem 56 Kbit/s
Part number:
USR5686G
Sale price
$115.52
Regular price
$118.99
Save
$3.47
3%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Powerful, secure dial-up connections for your businessThe USRobotics 56K Serial Controller Faxmodem combines the superior performance and reliability of a controller-based modem with the convenience of V.92 and V.22 technologies — with up to 75% less energy use. V.22 Fast Connect, which reduces the connection sequence time for very small data transfers, and secure connectivity make this modem ideal for Point of Sale (POS) systems. The modem also enables secure Machine to Machine (M2M) applications or Remote Server Management applications for Out-of-Band remote diagnostics, troubleshooting, maintenance and back-ups of servers.
Specifications
| Modem | |
|---|---|
| Modem speed | 56 Kbit/s |
| Interface | RS-232 |
| Features | |
| LED indicators | Yes |
| Internal | No |

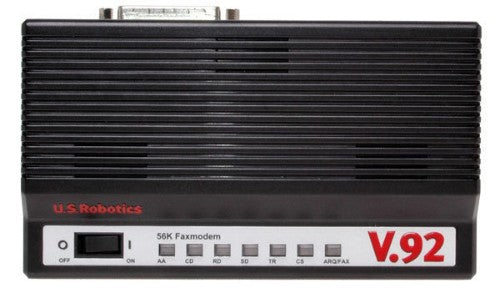

| Connectivity LEDs | AA, CD, RD, SD, TR, CS, ARQ/FAX |
| Certification | FCC IC UL CUL CE |
| Ports & interfaces | |

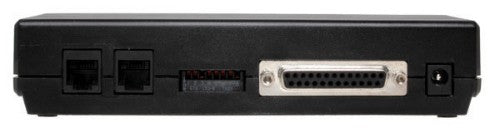

| RS-232 ports | 1 |
| Modem (RJ-11) ports | 2 |
| DC-in jack | Yes |
| Power | |
| USB powered | No |
| System requirements | |
| Minimum system requirements | Serial Port Phone Line Serial Cable |
| Mac compatibility | No |
| Compatible operating systems | Server 2011, Windows 7 64 bit, Win 7, Server 2008 64 bit, Server 2008, Vista 64 bit, Vista, Server 2003 64 bit, Server 2003, XP 64 bit, XP, NT 4.0, 2000, ME, 98, 95, 3.1, Linux, DOS |
| Certificates | |
| Certification | FCC IC UL CUL CE |
| Compliance certificates | CE, Federal Communications Commission (FCC), cUL |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
| Width | 6.5" (165.1 mm) |
| Weight | 8.64 oz (244.9 g) |
| Height | 1.3" (33 mm) |
| Depth | 3.75" (95.2 mm) |
| Packaging content | |
| Cables included | Phone (RJ-11) |
| Packaging data | |
| Package weight | 26.4 oz (748.4 g) |
| Package dimensions (WxDxH) | 9.5 x 5.71 x 2.6" (241.3 x 145 x 66 mm) |
| Indication | |
| LED indicators | Yes |
| Connectivity LEDs | AA, CD, RD, SD, TR, CS, ARQ/FAX |
| Technical details | |
| Cables included | Phone (RJ-11) |
| Width | 6.5" (165.1 mm) |
| Mac compatibility | No |
| Internal | No |
| Height | 1.3" (33 mm) |
| Depth | 3.75" (95.2 mm) |
| Compatible operating systems | Server 2011, Windows 7 64 bit, Win 7, Server 2008 64 bit, Server 2008, Vista 64 bit, Vista, Server 2003 64 bit, Server 2003, XP 64 bit, XP, NT 4.0, 2000, ME, 98, 95, 3.1, Linux, DOS |
| Compliance certificates | CE, Federal Communications Commission (FCC), cUL |
