Intel C621A, Socket 4189, 256Mb AMI UEFI, Intel X710-AT2, Intel I210, ATX
Asrock

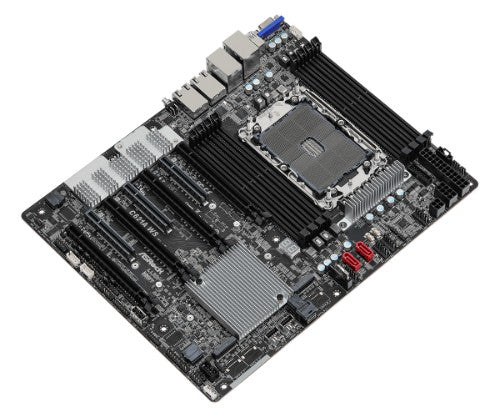

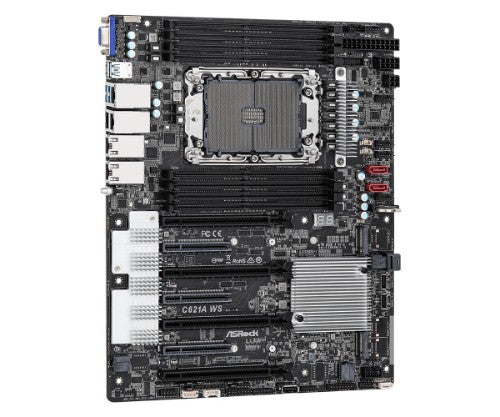

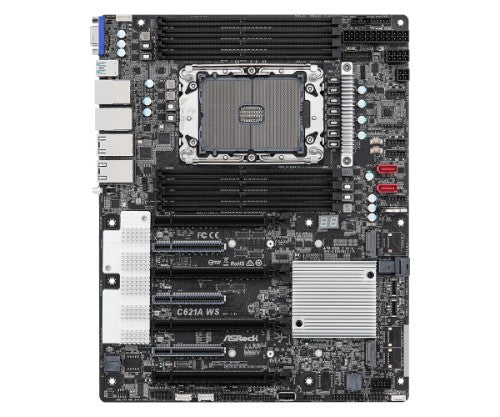

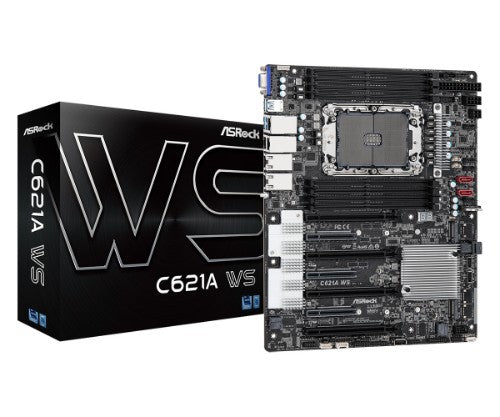

Asrock C621A WS motherboard Intel C621A LGA 4189 ATX
Part number:
C621A WS
$731.69
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports 3rd gen Intel® Xeon® Scalable Processors
- 1 LGA4189 Socket (Socket P+)
- Supports DDR4 RDIMM/ RDIMM-3DS/ LRDIMM/ LRDIMM-3DS/Intel® Optane ™ Persistent Memory 200 Series
- 4 PCIe 4.0 x16, 3 PCIe 4.0 x8
- 1 D-Sub
- 1 mini-SAS HD connector, 2 SATA, 1 Ultra M.2 (PCIe3.0 x4/SATA), 1 M.2 (PCIe3.0 x1/SATA)
- 2 Front USB3.2 Gen2 Type-C, 6 USB3.2 Gen1 (4 Rear, 2 Front), 3 USB2.0 (1 Vertical, 2 Front)
- 2 x 10 GbE LAN (Intel® X710-AT2), 2 x 1 GbE LAN (Intel® i210)
- IPMI2.0 with iKVM and vMedia support (ASPEED AST2500)
Description
7 x PCIe Gen4 Slots Supports 7 PCIe gen4 slots to deliver all the performance of PCIe 4.0 to your GPU and add-on cards. Fulfill all the professional design, deep learning, simulation and rendering applications. Various Storage Interface Selection Provides multiple interface for storage devices including mini-SAS HD connector, SATA3, and M.2 Key-M slot that can support PCIe3.0 x4 & SATA type M.2 SSD. 2 Front USB 3.2 Gen2 Type-C Ports This motherboard supports 2 USB 3.2 Gen2x2 Type-C providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. Dual 10GbE LAN equipped with the latest 10GbE controller. The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. It offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC. Aspeed® AST2500 BMC Controller AST2500 provides customer the best performance server management solution. In additional to the advanced BMC(Baseboard Management Controller) features, the on chip PCIe 2D VGA provides server systems with local display capability without adding extra cost for VGA add-on card. The embedded ARM11 and DDR4 1600Mbps meet the increasing performance requirements of the server system.Specifications
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C621A |
| On-board graphics card | Yes |
| Motherboard form factor | ATX |
| Component for | Workstation |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C621A |
| RAID levels | 0, 1, 5, 10 |
| Motherboard form factor | ATX |
| Component for | Workstation |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 4189 |
| Memory | |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 1866,2133,2400,2666,2933,3200 MHz |
| Maximum internal memory | 256 GB |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card | AST2500 |
| Internal I/O | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 2 |
| Number of COM connectors | 1 |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |

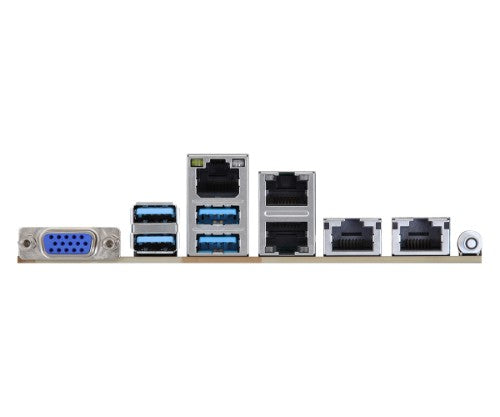

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel I210, Intel X710-AT2 |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C621A |
| Motherboard form factor | ATX |
| Component for | Workstation |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 4 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.3 |
| Video | |
| Graphics card | AST2500 |
| Weight & dimensions | |
| Width | 12" (305 mm) |
| Depth | 9.61" (244 mm) |
