7-Port Multi-Gig PoE+ Switch
Trendnet

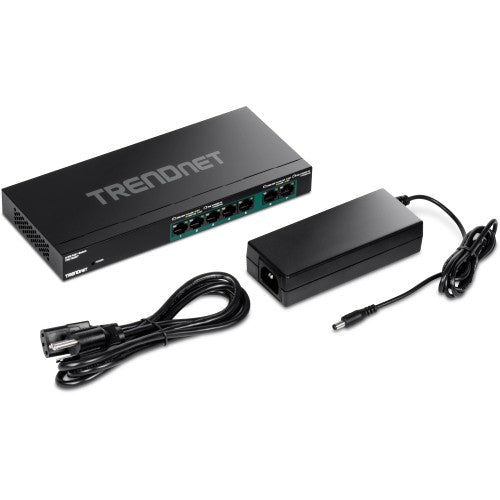

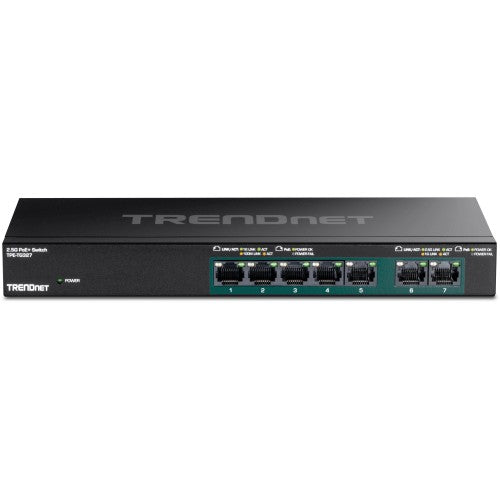

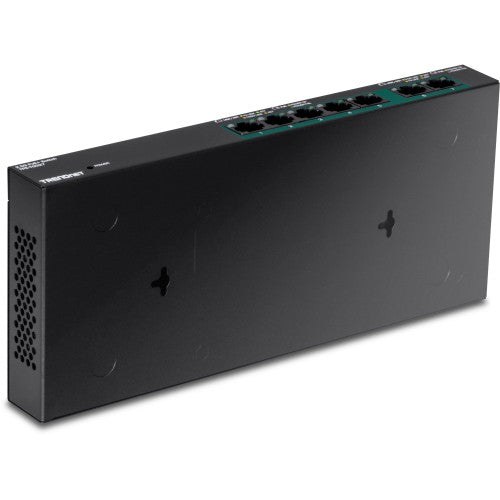

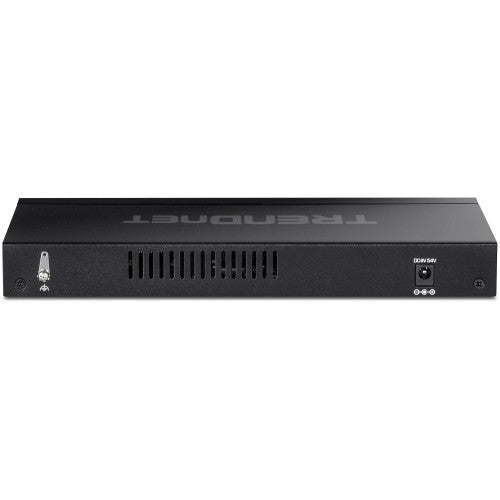

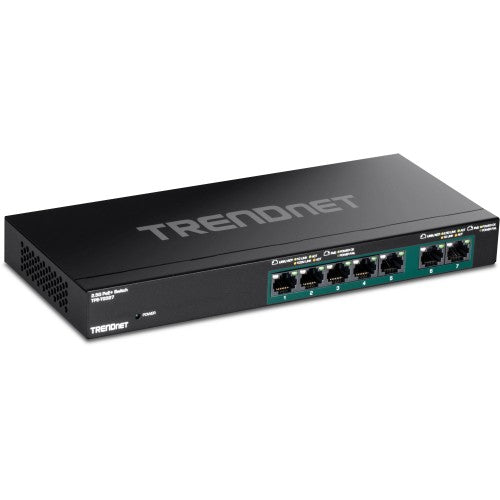

Trendnet TPE-TG327 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
TPE-TG327
Sale price
$84.96
Regular price
$89.99
Save
$5.03
6%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5 x 1G RJ-45 PoE+ ports
- 2 x 2.5G RJ-45 PoE+ ports
- 70W PoE power budget
- Compatible with existing Cat5e or better cabling
- 2.5G ports are backwards compatible with 100/1000Mbps devices
- Fanless design for silent operation
- Easy installation, no configuration required
- Supports IEEE 802.3af/at
- IEEE 802.3bz (2.5G) compliant
- 20Gbps switching capacity
- Wall mountable
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s 7-Port Multi-Gig PoE+ Switch, model TPE-TG327, is an affordable 2.5G PoE+ switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TPE-TG327 multi-gig switch offers two dedicated 2.5G PoE+ ports and five dedicated 1G PoE+ ports for high-speed network connections with a 20Gbps switching capacity. Having a sturdy compact metal housing and fanless design, the multi-gig PoE+ switch is a cost-effective solution for high-speed network connections. A 70W total PoE power budget on this affordable multi-gig PoE+ switch supplies up to seven PoE+ devices with up to 30W per port.Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| 2.5G Ethernet (copper) ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 15000 |
| MAC address table | 2000 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 14.88 Mpps |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE FCC |
| Performance | |
| Mean time between failures (MTBF) | 830917 h |
| Fanless | Yes |
| Power | |
| Power consumption (max) | 8 W |
| Power protection features | Over current, Short circuit |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 55 V |
| Power source | AC/DC/PoE |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 70 W |
| Power over Ethernet (PoE) | Yes |
| Power protection features | Over current, Short circuit |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Width | 11.3" (286 mm) |
| Depth | 4.02" (102 mm) |
| Height | 1.06" (27 mm) |
| Weight | 31.7 oz (900 g) |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 830917 h |
| Certificates | |
| Certification | CE FCC |
| Indication | |
| LED indicators | Yes |
