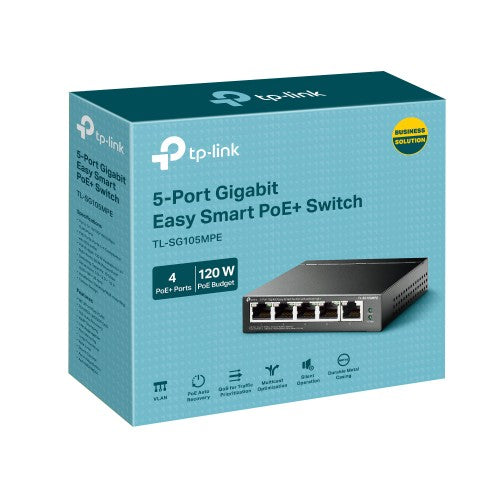

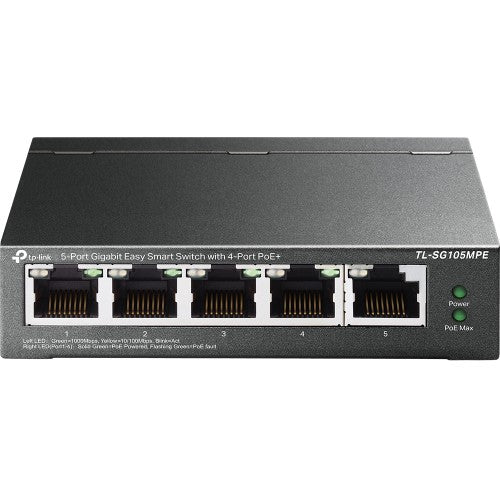

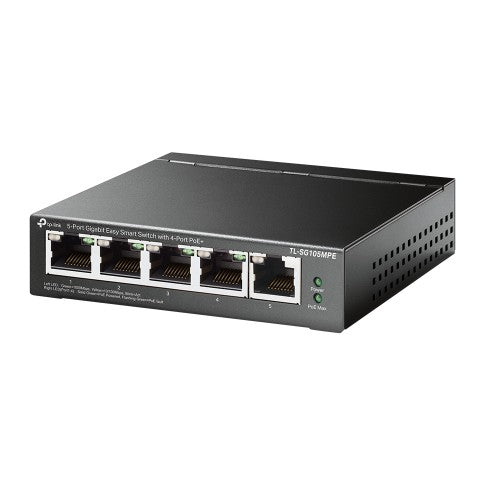

5-Port Gigabit Easy Smart Switch with 4-Port PoE+
TP-Link TL-SG105MPE network switch L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link
TP-Link TL-SG105MPE network switch L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
TL-SG105MPE
$93.48
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 120 W for all PoE ports
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Description
Specifications
| Management features | |
|---|---|
| Web-based management | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 16 |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 7.44 Mpps |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Power | |
| Power consumption (max) | 137.01 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 53.5 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 3.93" (99.8 mm) |
| Depth | 3.86" (98 mm) |
| Height | 0.984" (25 mm) |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Packaging data | |
| Package width | 9.84" (250 mm) |
| Package depth | 20.8" (528 mm) |
| Package height | 3.15" (80 mm) |
| Package weight | 6.08 lbs (2.76 kg) |
| Cables included | LAN (RJ-45) |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
