Intel Celeron 5205U (ULV), 2x SO-DIMM DDR4-2400 max. 64GB, 15.6" HD 1366 x 768 Touch, Gigabit LAN, WLAN, Bluetooth, WebCam, 65W
Shuttle

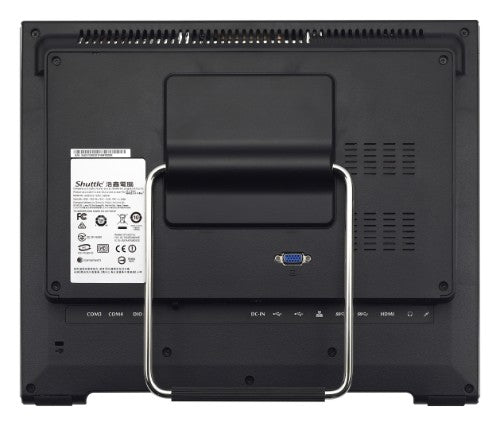

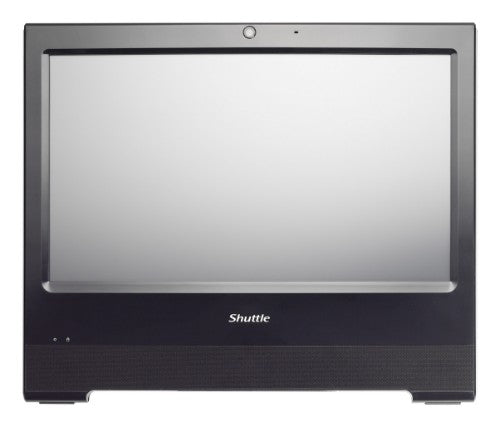

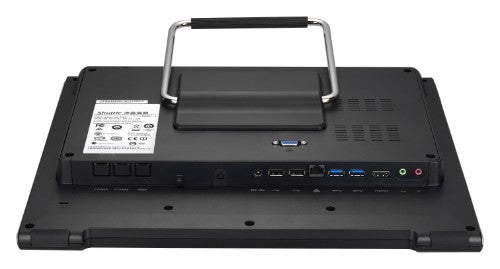

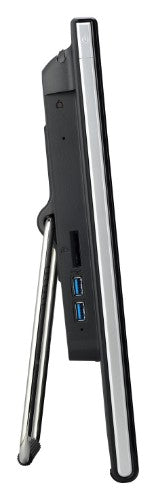

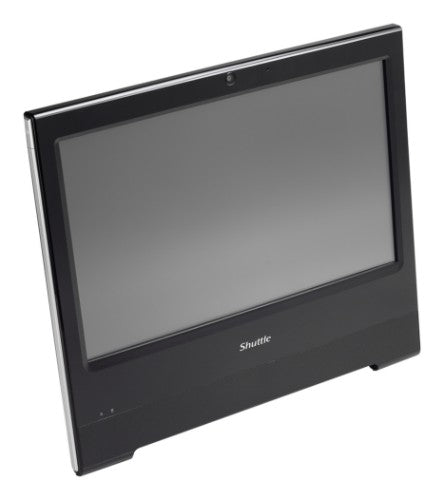

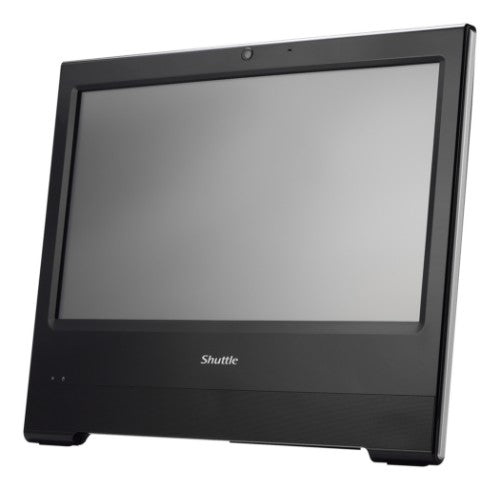

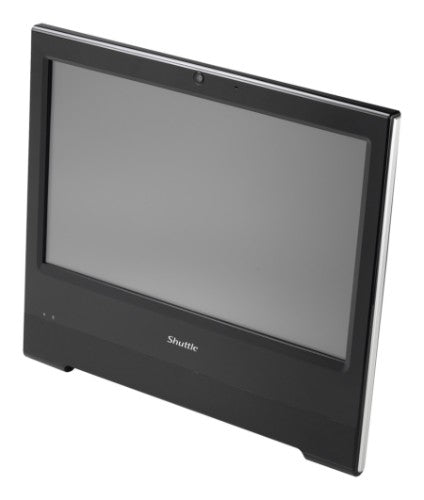

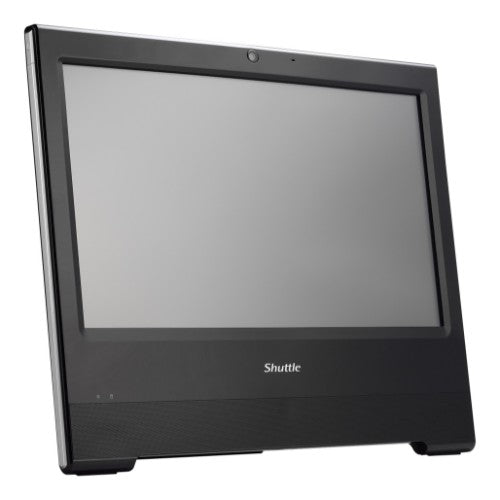

Shuttle X50V8 Intel® Celeron® 5205U 15.6" 1366 x 768 pixels Touchscreen All-in-One PC barebone Wi-Fi 5 (802.11ac) Black
Part number:
X50V8 BLACK
$670.18
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Fanless 15.6" AIO-PC with Single-touch Display
- Processor Intel Celeron 5205U
- WiFi, IP54, VESA
- 24/7 non stop operation
Description
The Shuttle XPC all-in-one X50V8 is the latest addition to the X50 Series and is powered by an Intel ULV processor of the 10th generation "Comet Lake". The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.Specifications
| Display | |
|---|---|
| HD type | HD |
| Panel type | LCD |
| Display diagonal | 15.6" |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | Yes |
| Display brightness | 220 cd/m² |
| Processor | |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-down | 12.5 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Processor frequency | 1.9 GHz |
| Processor family | Intel® Celeron® |
| Processor model | 5205U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor cache | 2 MB |
| Processor manufacturer | Intel |
| Memory | |
| Maximum internal memory | 64 GB |
| Memory slots type | SO-DIMM |
| Supported memory clock speeds | 2400 MHz |
| Hard drive | |
| Storage drive interface | Serial ATA III |
| Storage | |
| Number of storage drives supported | 1 |
| Storage drive interface | Serial ATA III |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| SSD form factor | 2.5" |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Audio | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Camera | |
| Built-in camera | Yes |
| Camera resolution | 1920 x 1080 pixels |
| Camera HD type | Full HD |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| WLAN controller model | Realtek RTL8821CE |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| HDMI version | 1.4a |
| USB4 Gen 3x2 ports quantity | 0 |
| Technical details | |
| Power cord included | Yes |
| Product type | All-in-One PC barebone |
| Product colour | Black |
| Weight | 7.72 lbs (3.5 kg) |
| Security | |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Cable lock slot | Yes |
| Design | |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Cable lock slot | Yes |
| VESA mounting | Yes |
| Performance | |
| Product type | All-in-One PC barebone |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Operating system installed | No |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| Multimedia | |
| Built-in camera | Yes |
| Camera resolution | 1920 x 1080 pixels |
| Camera HD type | Full HD |
| Weight & dimensions | |
| Package weight | 9.26 lbs (4.2 kg) |
| Weight | 7.72 lbs (3.5 kg) |
| Packaging data | |
| Package weight | 9.26 lbs (4.2 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Other features | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Storage drive interface | Serial ATA III |
| AC adapter output current | 3.42 A |
| Processor manufacturer | Intel |
| Power supply type | External AC adapter |
| Power supply | 65 W |
| Maximum resolution | 3840 x 2160 pixels |
| Chassis type | All-in-One |
| Harmonized System (HS) code | 84713000 |
