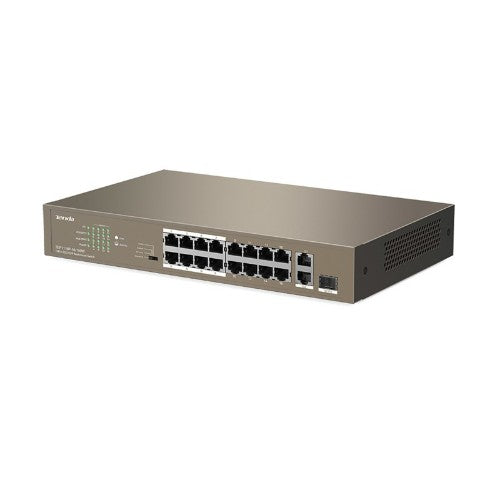

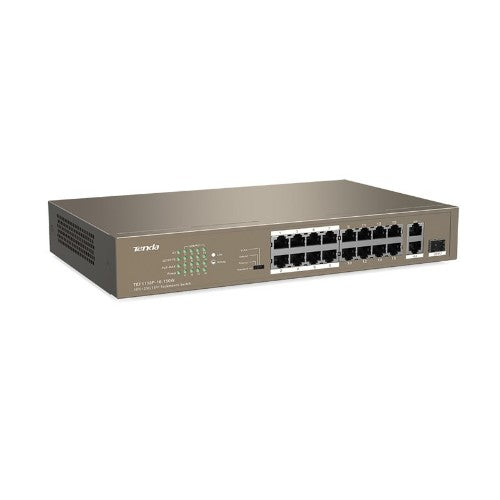

6FE+2GE/1SFP Desktop Switch With 16-Port PoE

Description

TEF1118P-16-150W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 150 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.

Dedicated for Surveillance & SMB Networking

GE & SFP uplink ports，Large Buffer of Nearly 3M

With one 10/100/1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fibermodule TEG311SM, the switch supports a maximum transmission distance up to 20km.

6KV Excellent Lightning Protection

The switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc, and these greatly protect the switch from being damaged by thunderstorm. Besides, it supports wide voltage input, AC：100-240V~50/60Hz..

Cascading with 6 Devices

Can Support IP Surveillance Project of up to 96 Cameras
In the number of about 100 terminals accessed to the network, cascading 6 devices through the G1、G2/SFP2can achieve up to 96-channel monitoring, according to the project , it supports 300W/500W IP Caccessed and ensure stable video transmission without breaking up.If the both ends of devices are connected to the NVR, the video can be watched locally.

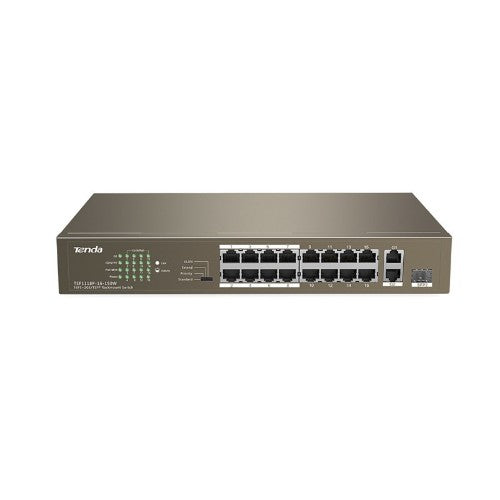

4 Modes for Different Networks

Standard mode, Port-based Priority mode, Port-based VLAN mode and Extend mode make TEF1118P-16-150W be able to deal with different networks，special for small & Medium-sized IP surveillance & WI-FI coverage project.

Mode 1: Standard Mode

This is the default working mode of TEF1118P-16-150W. In the mode, all ports can communicate with each other independently.

Mode 2： Port-based Priority Mode

In this mode, ports 1 to 8 have higher priority than other ports, and all ports can communicate with each other. When the switch is connected to multiple IP cameras, you are recommended to use this mode for better smooth transmission with the key IP cameras connected to higher priority ports, and connect the 2 uplink ports (Ports G1 & G2/SFP2) to uplink devices (such as NVR or Router).

Mode 3：Port-Based VLAN Mode

In this mode, ports 1 to 16 can communicate with uplink ports (Ports G1 & G2/SFP2), but can not communicate with each other. You can use this mode to isolate broadcaststorm and prevent ARP virus and DHCP sproofing.

Mode 4: Extend Mode

Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1118P-16-150W can support 250 meters data transmission in the Extend mode, which can save the cost of your project with less devices used.

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Combo SFP ports quantity	1
Gigabit Ethernet (copper) ports quantity	2
Fast Ethernet (copper) ports quantity	16
Virtual LAN features
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Technical details
Form factor	1U
Product colour	Black
Rack mounting	Yes
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Power over Ethernet (PoE)
Power protection features	Overload, Short circuit
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	130 W
Power over Ethernet (PoE)	Yes
Management features
Switch type	Unmanaged
Switch layer	L2
Network
Cable types supported	Cat5, Cat5e
MAC address auto-learning supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	No
Half duplex	Yes
Virtual LAN features	Port-based VLAN
Data transmission
MAC address table	4096 entries
Switching capacity	7.2 Gbit/s
Store-and-forward	Yes
Jumbo frames support	No
Forwarding rate	5.36 Mpps
Certificates
Certification	FCC, CCC
Design
Wall mountable	Yes
Form factor	1U
Product colour	Black
LED indicators	Link, PoE, Power
Certification	FCC, CCC
Rack mounting	Yes
Performance
Harmonized System (HS) code	85176990
Fanless	Yes
Indication
LED indicators	Link, PoE, Power
Power
Power supply included	Yes
Power protection features	Overload, Short circuit

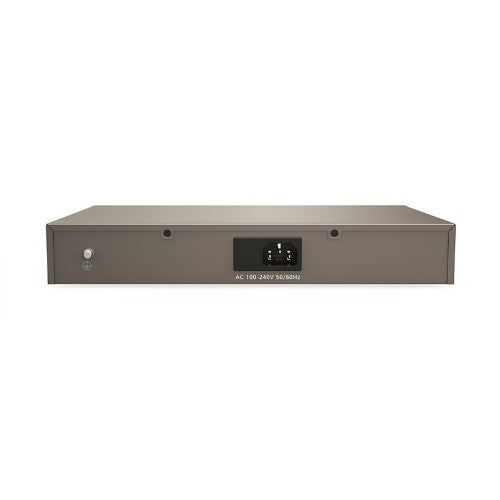

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	11.6" (294 mm)
Depth	7.04" (178.8 mm)
Height	1.73" (44 mm)
Sustainability
Sustainability compliance	Yes
Logistics data
Harmonized System (HS) code	85176990
