5 x 10/100/1000 Mbps, 100 x 100 x 26 mm, 50-57 V DC，0.6A, Brown
5-Port Gigabit PD Switch With 4-Port PoE
5 Gigabit Ports, Integrated PSE & PD Design
The 5 ports of TEG1105PD are all gigabit ports, with 4 PoE OUT ports (ports 1 to 4) and 1 PoE IN port (port 5). The switch can be powered by the IEEE 802.3af/at compliant PSE through port 5 with an Ethernet cable, and supply power to such PDs as low-power APs and IP cameras through ports 1 to 4.
Gigabit speed without reduction within 200m, Stable transmission without dropping
As a relay, the switch can extend the data transmission distance to 325 meters at most and offer long-distance PoE power supply through multiple PoE ports. Suitable for medium and long-distance wired monitoring scenarios or low-power wireless coverage scenarios such as enterprise parks, factories, schools, etc.
Cut costs,Practical & Stable,Your Better Choice
TEG1105PD does not require independent power supply, just plug and play, no need to consider the power supply during the network deployment; in addition, there is no need to pull out multiple network cables from the PoE switch (PSE) in the data equipment room to supply power to multiple PoE powered devices (PD). Therefore, the network deployment cost can be greatly saved while ensuring the quality of the project.
325m long-distance PoE relay, No power adapter required, Easy to get power supply, Suitable & Practical for your networking.
6KV lightning protection, Stable operation in thunderstorm environment
This switch provides short circuit protection for PSE and 6 kV lightning protection for all ports, protecting the switch itself to operate steadily from surge and lightning damages in thunderstorms.
Small & Delicate,Easy to be installed in the weak electric/waterproof box
TEG1105PD has a compact shell, about the size of two splicing bank cards, and can be easily installed in a weak electric box or an outdoor waterproof box. All-steel shell, sturdy and durable.
Quiet & Heat dissipation
Steel Shell, Fanless Design, Low Power Consumption
Safer
Network Construction Without Strong Electricity
Stable Operation
Few failure points, easy maintenance
Tenda

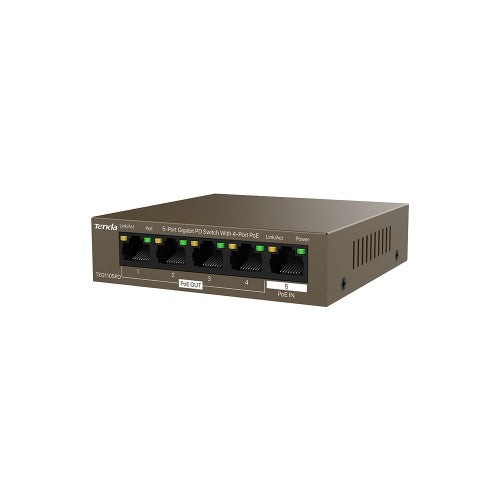

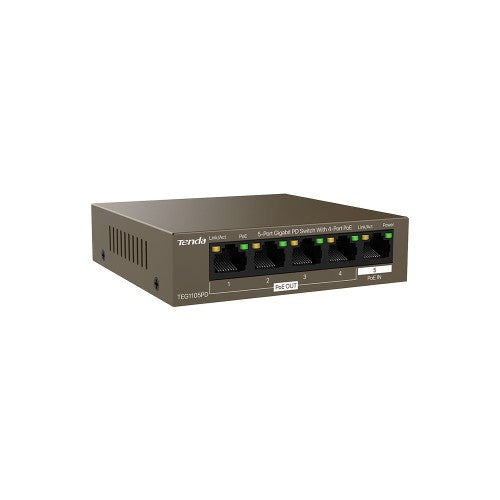

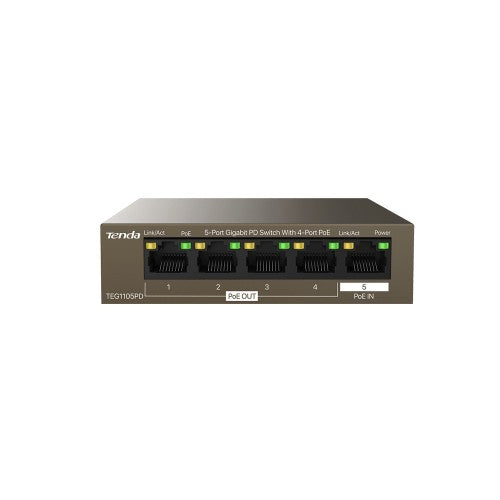

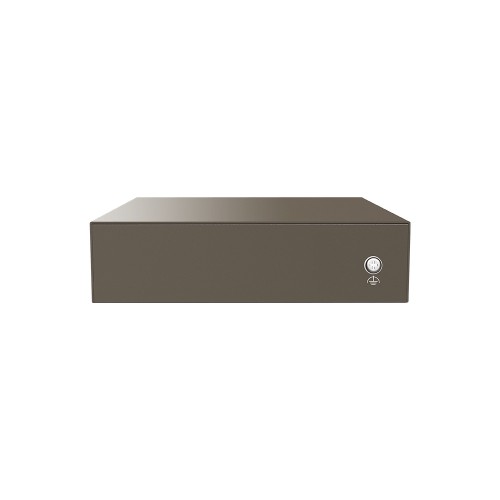

Tenda TEG1105PD network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Brown
Part number:
TEG1105PD
Sale price
$28.95
Regular price
$29.99
Save
$1.04
3%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Five 10/100/1000 Mbps auto-negotiation ports
- Port 5 supports power supply by a PSE compliant with IEEE 802.3af/at
- Ports 1 - 4 support power supply to low-power PDs compliant with IEEE 802.3af
- The switch supports auto MDI/MDIX, simplifing the network structure and maintenance
- The non-blocking wire-speed forwarding function guarantees the smooth operation of network applications
- Full-duplex flow control and half-duplex back pressure control prevent frame loss caused by port blocking
- The switch supports the store-and-forward transfer mode and a 2 K MAC address table
- The switch supports 9K jumbo frame, improving the forwarding rate of large files
- The switch supports IP camera connection and guarantees the smoothness and clearness of monitoring videos
Description
Integrated PSE & PD,No power adapter required5-Port Gigabit PD Switch With 4-Port PoE
5 Gigabit Ports, Integrated PSE & PD Design
The 5 ports of TEG1105PD are all gigabit ports, with 4 PoE OUT ports (ports 1 to 4) and 1 PoE IN port (port 5). The switch can be powered by the IEEE 802.3af/at compliant PSE through port 5 with an Ethernet cable, and supply power to such PDs as low-power APs and IP cameras through ports 1 to 4.
Gigabit speed without reduction within 200m, Stable transmission without dropping
As a relay, the switch can extend the data transmission distance to 325 meters at most and offer long-distance PoE power supply through multiple PoE ports. Suitable for medium and long-distance wired monitoring scenarios or low-power wireless coverage scenarios such as enterprise parks, factories, schools, etc.
Cut costs,Practical & Stable,Your Better Choice
TEG1105PD does not require independent power supply, just plug and play, no need to consider the power supply during the network deployment; in addition, there is no need to pull out multiple network cables from the PoE switch (PSE) in the data equipment room to supply power to multiple PoE powered devices (PD). Therefore, the network deployment cost can be greatly saved while ensuring the quality of the project.
325m long-distance PoE relay, No power adapter required, Easy to get power supply, Suitable & Practical for your networking.
6KV lightning protection, Stable operation in thunderstorm environment
This switch provides short circuit protection for PSE and 6 kV lightning protection for all ports, protecting the switch itself to operate steadily from surge and lightning damages in thunderstorms.
Small & Delicate,Easy to be installed in the weak electric/waterproof box
TEG1105PD has a compact shell, about the size of two splicing bank cards, and can be easily installed in a weak electric box or an outdoor waterproof box. All-steel shell, sturdy and durable.
Quiet & Heat dissipation
Steel Shell, Fanless Design, Low Power Consumption
Safer
Network Construction Without Strong Electricity
Stable Operation
Few failure points, easy maintenance
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Network | |
| MAC address auto-learning supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Data transmission | |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Jumbo frames | 9000 |
| Packet buffer memory | 1 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Design | |
| Product colour | Brown |
| LED indicators | Link, PoE, Power |
| Housing material | Metal |
| Certification | CQC, FCC, CE, RoHS |
| Power | |
| Power supply included | Yes |
| Input current | 0.6 A |
| DC input voltage | 50 - 57 V |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 3.94" (100 mm) |
| Depth | 3.94" (100 mm) |
| Height | 1.02" (26 mm) |
| Performance | |
| Packet buffer memory | 1 MB |
| Technical details | |
| Product colour | Brown |
| Housing material | Metal |
| Memory | |
| Packet buffer memory | 1 MB |
| Certificates | |
| Certification | CQC, FCC, CE, RoHS |
| Indication | |
| LED indicators | Link, PoE, Power |
