10.4" x 10.5" Single Socket SP5 (LGA 6096), supports AMD EPYC 9004 (with AMD 3D V-Cache Technology) and 97x4 series processors
Asrock

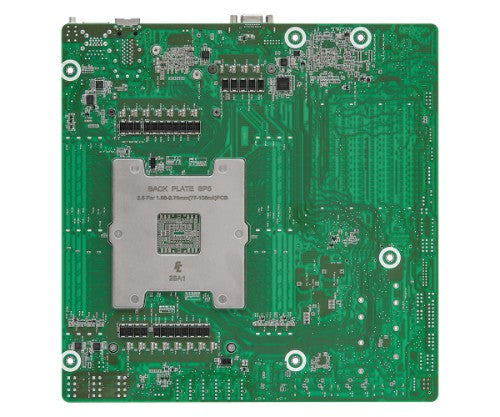

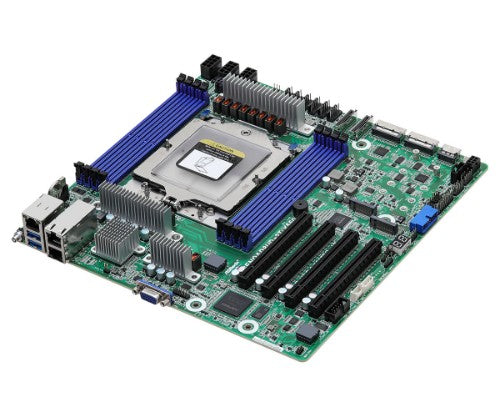

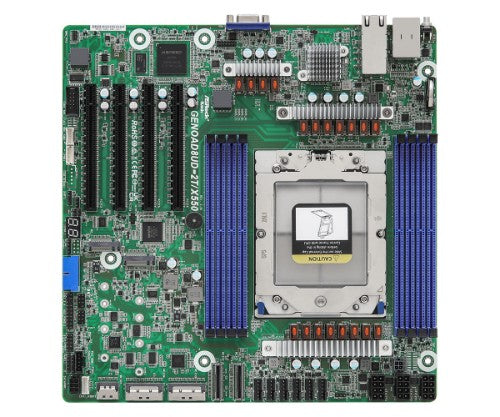

Asrock GENOAD8UD-2T/X550 motherboard Socket SP5 micro ATX
Part number:
GENOAD8UD-2T/X550
Sale price
$822.40
Regular price
$906.20
Save
$83.80
9%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 10.4" x 10.5"
- Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
- 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
- 4 PCIe5.0 / CXL1.1 x16
- 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8), 1 MCIO (PCIe5.0 x4)
- Supports 2 M.2 (PCIe5.0 x4)
- Up to 16 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel® X550-AT2
- Remote Management (IPMI)
- Support ATX PSU or 12V DC-IN
Description
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Audio connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 5.0, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 16 |
| Number of COM connectors | 1 |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket SP5 |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket SP5 |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD EPYC 9004 |
| Supported processor sockets | Socket SP5 |
| Processor socket | Socket SP5 |
| Memory | |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory voltage | 1.1 V |
| Supported memory clock speeds | 4800 MHz |
| Supported memory clock speed (max) | 4800 MHz |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 5.0, SATA III |
| Graphics | |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| LAN controller | Intel® X550-AT2 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Features | |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket SP5 |
| Compatible operating systems | Microsoft® Windows: - Server 2019 (64bit) - Server 2022 (64 bit) Linux: - RedHat Enterprise Linux Server 8.6 (64bit) / Server 8.7 (64bit) / Server 9.0 (64bit) / Server 9.1 (64bit) - SUSE SLES 15.4(64 bit) - UBuntu 20.04.5 (64 bit) / 22.04 (64 bit) / 22.10 (64 bit) Hypervisor:: - VMWare® ESXi/ 7.0 U3i / 8.0 - CITRIX Hypervisor 8.2.1 |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 4 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Video | |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| Weight & dimensions | |
| Width | 10.4" (264.2 mm) |
| Depth | 10.5" (266.7 mm) |
| Other features | |
| Compatible operating systems | Microsoft® Windows: - Server 2019 (64bit) - Server 2022 (64 bit) Linux: - RedHat Enterprise Linux Server 8.6 (64bit) / Server 8.7 (64bit) / Server 9.0 (64bit) / Server 9.1 (64bit) - SUSE SLES 15.4(64 bit) - UBuntu 20.04.5 (64 bit) / 22.04 (64 bit) / 22.10 (64 bit) Hypervisor:: - VMWare® ESXi/ 7.0 U3i / 8.0 - CITRIX Hypervisor 8.2.1 |
