1kVA, 2U, VRLA, 110/120V, 16.6 kg, Black
The Panduit® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V
and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable
power protection and power backup for your computer IT equipment. With excellent electrical
performance, enhanced intelligent monitoring and network functions, complying with ENERGY
STAR® 2.0, EMC and safety standards to meet the continually growing power demands of Data
Center, Enterprise and Edge IT equipment.
Panduit

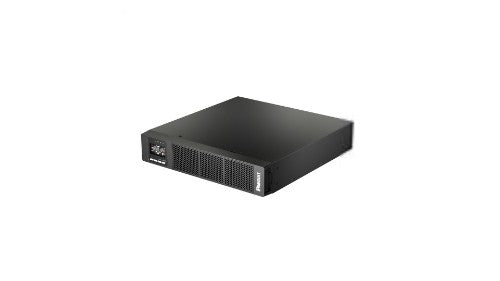

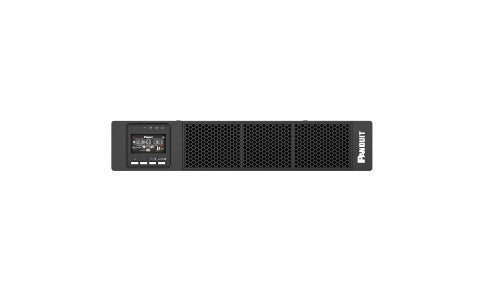

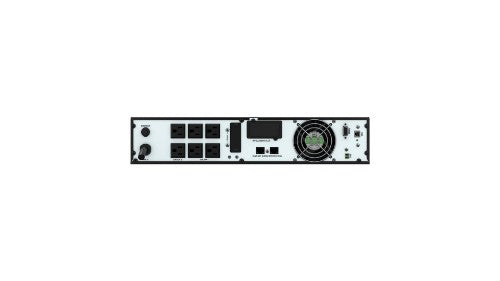

Panduit SmartZone uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W 6 AC outlet(s)
Part number:
U01S11V
Sale price
$784.42
Regular price
$984.60
Save
$200.18
20%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Rack/Tower convertible
- Wide input voltage range
- High efficiency
- Energy savings
- Expandable battery packs
- Multiple communication interface
Description
SmartZone UPS, 1kVA, 2U, 120V, single phase, double-conversion on-line power protection with Intelligent Network CardThe Panduit® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V
and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable
power protection and power backup for your computer IT equipment. With excellent electrical
performance, enhanced intelligent monitoring and network functions, complying with ENERGY
STAR® 2.0, EMC and safety standards to meet the continually growing power demands of Data
Center, Enterprise and Edge IT equipment.
Specifications
| Power | |
|---|---|
| Output frequency | 50/60 Hz |
| Output power factor | 1 |
| Input power factor | 0.98 |
| Output power | 1000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 125 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Output power capacity | 1 kVA |
| Efficiency (On-line mode) | 90% |
| Charging current | 2 A |
| Efficiency (ECO mode) | 95% |
| ECO mode | Yes |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| Cable length | 118.1" (3 m) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45, RS-232 |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Power plug | NEMA 5-15P |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Surge protection | Yes |
| Power protection features | Overcharge, Overdischarge, Overheating, Overload, Short circuit, Under voltage |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 1 |
| Input power factor | 0.98 |
| Output power | 1000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 125 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Power protection features | Overcharge, Overdischarge, Overheating, Overload, Short circuit, Under voltage |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 1 kVA |
| Efficiency (On-line mode) | 90% |
| Efficiency (ECO mode) | 95% |
| ECO mode | Yes |
| Input frequency | 40 - 70 Hz |
| Charging current | 2 A |
| Battery | |
| Battery life (max) | 5 year(s) |
| Number of batteries supported | 4 |
| Battery voltage | 36 V |
| Battery capacity | 27 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of battery cells | 3 |
| Battery recharge time | 6 h |
| Typical backup time at half load | 19.1 min |
| Typical backup time at full load | 6 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Charging current | 2 A |
| Replacement battery cartridge | UVC036 |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Cooling type | Active |
| Cable length | 118.1" (3 m) |
| Built-in fan | Yes |
| Control type | Buttons |
| Display type | LCD + LED |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, UL ECOLOGO |
| Compliance certificates | CE, REACH, RoHS |
| Certificates | |
| Compliance certificates | CE, REACH, RoHS |
| Cooling | |
| Cooling type | Active |
| Built-in fan | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, UL ECOLOGO |
| Weight & dimensions | |
| Package width | 21.9" (555 mm) |
| Package depth | 23.2" (590 mm) |
| Package height | 7.95" (202 mm) |
| Weight | 36.6 lbs (16.6 kg) |
| Width | 17.3" (440 mm) |
| Package weight | 50 lbs (22.7 kg) |
| Height | 3.41" (86.5 mm) |
| Depth | 12.8" (325 mm) |
| Packaging data | |
| Package width | 21.9" (555 mm) |
| Package depth | 23.2" (590 mm) |
| Package height | 7.95" (202 mm) |
| Package weight | 50 lbs (22.7 kg) |
