1.3 L, H610, LGA1700, 2x DDR4 SODIMM, 2x M.2, 2.5", HDMI, 2x DP, 2x USB 3.2 Gen1, 2x USB 2.0, RJ45 GbE, RJ45 2.5 GbE, RS232, 120 W
Shuttle XPC Slim series DH610 supports Intel® 12th Gen LGA1700 processors. With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.
Intel® 12th Gen processor

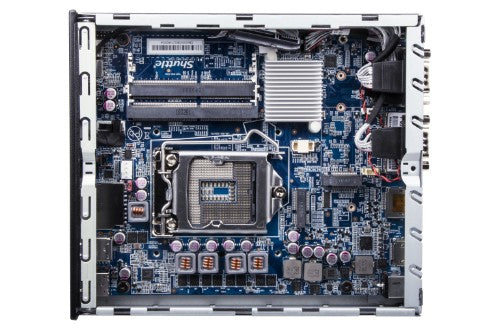

Based on the H610 chipset, DH610 is designed for 12th Gen Intel® processors in the LGA1700 socket and supports up to 64GB (32GBx2) of DDR4-3200 memory, which delivers a performance improvement uplift of up to 28%, providing powerful computing capacity. In addition, with Intel® UHD Graphics 700 series integrated, DH610 is potential for multi-platform AI deployment.
Triple-Display Productivity
With one HDMI 2.0b and two DisplayPort outputs built-in, DH610 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.
Strong Expansion Capacity with M.2
With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.
Rich Connectivity and High-speed Intel® 2.5GbE LAN

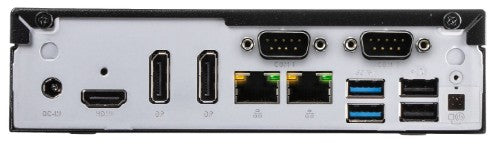

DH610 provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and two RS232 for flexible connectivity options. In addition, Intel® 2.5 GbE and Intel® 1GbE Lan are equipped to support Wake on LAN and Teaming Mode functions to provide high-speed data transfer capability and a better business networking integration.
Exclusive Cooling Technology

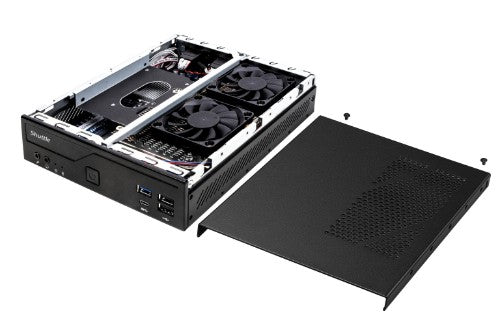

DH610 features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.
Shuttle

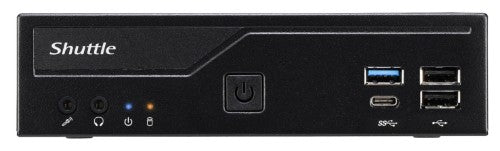

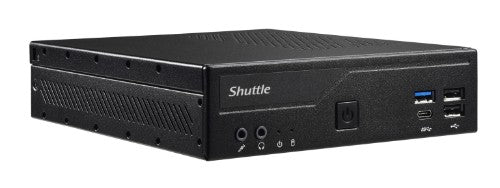

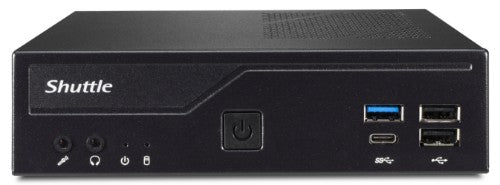

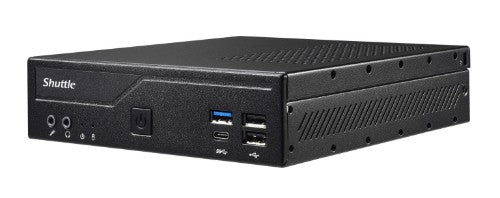

Shuttle DH610 PC/workstation barebone 1.3L sized PC Black LGA 1700
Part number:
DH610
Sale price
$480.51
Regular price
$509.99
Save
$29.48
6%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
12th Gen Hybrid Power Makes Multitask EasyShuttle XPC Slim series DH610 supports Intel® 12th Gen LGA1700 processors. With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.
Intel® 12th Gen processor
Based on the H610 chipset, DH610 is designed for 12th Gen Intel® processors in the LGA1700 socket and supports up to 64GB (32GBx2) of DDR4-3200 memory, which delivers a performance improvement uplift of up to 28%, providing powerful computing capacity. In addition, with Intel® UHD Graphics 700 series integrated, DH610 is potential for multi-platform AI deployment.
Triple-Display Productivity
With one HDMI 2.0b and two DisplayPort outputs built-in, DH610 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.
Strong Expansion Capacity with M.2
With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.
Rich Connectivity and High-speed Intel® 2.5GbE LAN
DH610 provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and two RS232 for flexible connectivity options. In addition, Intel® 2.5 GbE and Intel® 1GbE Lan are equipped to support Wake on LAN and Teaming Mode functions to provide high-speed data transfer capability and a better business networking integration.
Exclusive Cooling Technology
DH610 features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.
Specifications
| Motherboard | |
|---|---|
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| Processor | |
| Built-in processor | No |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 3200 MHz |
| Maximum internal memory | 64 GB |
| Internal memory installed | No |
| Video | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, Serial ATA, Serial ATA II, Serial ATA III |
| Storage drives installed | No |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ports & interfaces | |
| Number of SATA III connectors | 1 |
| DC-in jack | Yes |
| COM ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| Design | |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | 1.3L sized PC |
| Performance | |
| Maximum resolution | 3840 x 2160 pixels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Number of displays supported | 3 |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| Colour | |
| Product colour | Black |
| Technical details | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Quick start guide | Yes |
| Cooling type | Active |
| Chassis type | 1.3L sized PC |
| Packaging data | |
| Power cord included | Yes |
| Drivers included | Yes |
| AC adapter included | Yes |
| Indication | |
| LED indicators | HDD, Power |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Management features | |
| On/off switch | Yes |
| Features | |
| Number of displays supported | 3 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 6.32 A |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Weight & dimensions | |
| Width | 6.5" (165 mm) |
| Depth | 7.48" (190 mm) |
| Height | 1.69" (43 mm) |
| Packaging content | |
| Power cord included | Yes |
| Drivers included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Other features | |
| Chassis type | 1.3L sized PC |
