Buffalo TeraStation TS51220RH6404, NAS, Rack (2U), Annapurna Labs, AL524, 64 TB, Black
BUFFALO

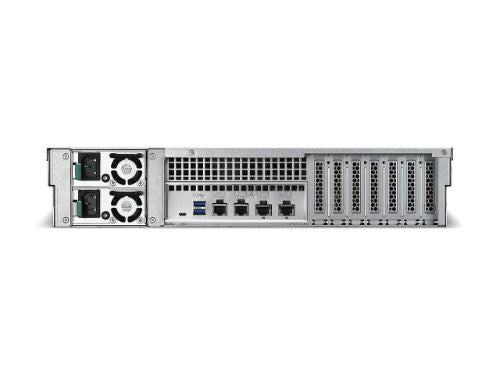

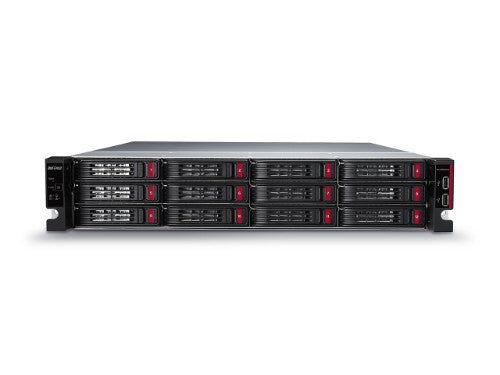

Buffalo TeraStation TS51220RH6404 NAS/storage server Rack (2U) Ethernet LAN Black AL524
Part number:
TS51220RH6404
Sale price
$6,749.39
Regular price
$7,799.99
Save
$1,050.60
13%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Buffalo TeraStation TS51220RH6404. Total installed storage capacity: 64 TB, Installed storage drive type: HDD, Storage drive capacity: 240 TB. Processor family: Annapurna Labs, Processor manufacturer: Annapurna Labs, Processor model: AL524. Internal memory: 16 GB, Internal memory type: DDR4. Ethernet LAN data rates: 10,100,1000,10000 Mbit/s. Chassis type: Rack (2U), Product color: BlackSpecifications
| Storage | |
|---|---|
| Total installed storage capacity | 64 TB |
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 4 |
| Number of storage drives supported | 12 |
| Storage drive interface | Serial ATA III |
| Storage drive capacity | 240 TB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Processor | |
| Processor manufacturer | Annapurna Labs |
| Processor frequency | 2.04 GHz |
| Processor family | Annapurna Labs |
| Processor model | AL524 |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 16 GB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| Hard drive | |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Design | |
| Product colour | Black |
| Chassis type | Rack (2U) |
| Technical details | |
| Type | NAS |
| Device class | Large Enterprise Business |
| Product colour | Black |
| Chassis type | Rack (2U) |
| Performance | |
| Type | NAS |
| Device class | Large Enterprise Business |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8.1 |
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8.1 |
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Package width | 22.9" (581.7 mm) |
| Package depth | 38.5" (977.9 mm) |
| Package height | 10.2" (259.1 mm) |
| Width | 18.9" (480 mm) |
| Depth | 29" (736.6 mm) |
| Height | 3.4" (86.4 mm) |
| Weight | 55.3 lbs (25.1 kg) |
| Package weight | 66.6 lbs (30.2 kg) |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8.1 |
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Packaging data | |
| Package width | 22.9" (581.7 mm) |
| Package depth | 38.5" (977.9 mm) |
| Package height | 10.2" (259.1 mm) |
| Package weight | 66.6 lbs (30.2 kg) |
