Intel Celeron N5095 4-core/4-thread, 2.9 GHz, Intel UHD Graphics, 2 x M.2 2280 PCIe Gen 3 x1, HDMI 2.0, 2 x Type-A, 2x USB 2.0
2.5GbE NAS is a must in 2023
With increasing availability on switches, motherboards, and laptops, 2023 is the year of 2.5GbE. By setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports to unleash network potential and increase fault tolerance, the TS-264 delivers up to 589 MB/s transfer speeds for fast data access workflow
Processor
Intel® Celeron® N5095 quad-core processor, burst up to 2.9 GHz
GPU
Built-in Intel® UHD Graphics to speed up video processing and graphical computing
Memory
Built-in 8 GB DDR4 memory..
Encryption Engine
Features Intel® AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data.
Upgrade to dual-port 10GbE with a PCIe network card
With a superior hardware design, you can install a dual-port 10GbE network card QXG-10G2TB in the TS-264. Combining 10GbE networking, quad-core processor, and M.2 SSD caching, the TS-264 unleashes its full performance potential.
Expand storage capacity up to 14 hard drives
TS-264 supports a storage capacity of up to 22 TB by installing two 3.5-inch 22 TB hard drives in RAID 1. By connecting a TL-D1600S QNAP storage expansion unit, you can add an additional fourteen hard drives to the TS-264 to achieve up to 240 TB storage space to meet growing storage requirements.
Accelerate AI–powered image recognition and caching with TPU and PCIe expansion
TS-264 has two M.2 PCIe Gen 3 slots for installing NVMe SSD (including Apacer®, Micron®, Seagate®, WD®, and more) or Edge TPU.
Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
If you have a huge number of small files requiring read/write operations, you can easily boost IOPS of TS-264 by configuring its two M.2 SSDs as a cache disk.
When transmitting bigger files, you can create a storage pool with two M.2 SSDs. With Qtier automatically moving hot data to SSD and cold data to hard drives, TS-264 allows you to enjoy exceptional application performance.
Accelerate AI–powered image recognition with TPU
By leveraging a Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-264 can perform high-speed face and object recognition. Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.
Abundant I/O capabilities with PCIe expansion
QNAP offers a wide range of expansion cards to add versatile functions to your NAS. The TS-264 has one PCIe Gen 3 x2 slot that supports various expansion cards for expanding application potential.
One Touch Copy backup with USB 3.2 Gen 2
TS-264 provides two 10Gbps USB 3.2 Gen 2 ports for faster file transfer to/from USB 3.2 Gen 2 devices. The One Touch Copy button also allows you to back up the contents of USB devices to the TS-264 with a single button press.
Smoother mobile experience with GPU
Taking a lot of photos with your smartphone? Qfile mobile app will help you free up space by automatically backing up photos to the TS-264. With Intel® UHD Graphics, the TS-264 greatly speeds up converting videos to 1080p / 720p, allowing for smooth streaming to mobile devices over varying mobile network speeds.
Use your NAS like a PC
QNAP’s exclusive Virtualization Station enables running multiple Windows®/Linux® virtual machines. By connecting a keyboard, mouse, and HDMI monitor, you can easily use the TS-264 as a PC.
QNAP

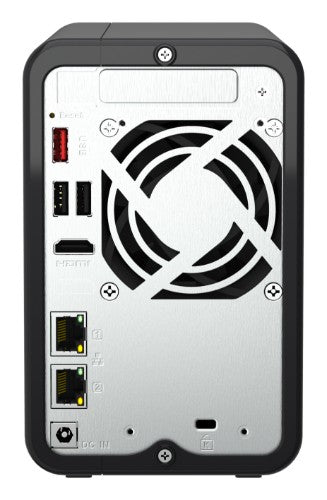

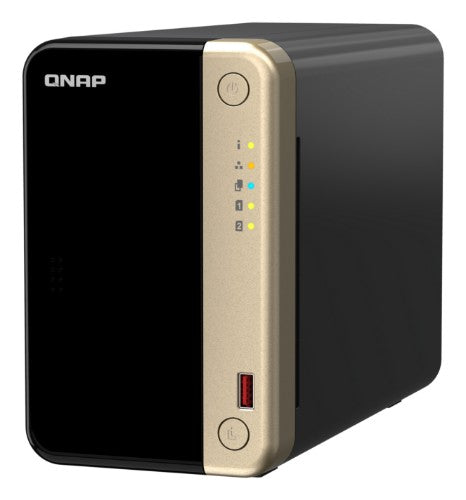

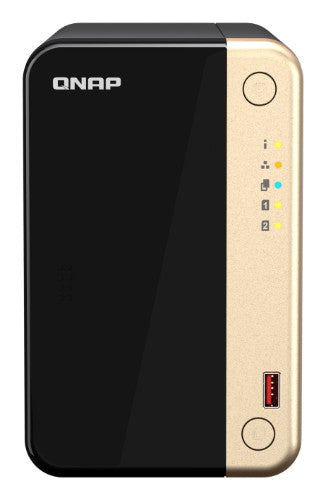

QNAP TS-264 NAS Tower Intel® Celeron® N5095 8 GB 0 TB QNAP Turbo System Black, Gold
Part number:
TS-264-8G-US
$517.36
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- TS-264 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports
- Perform additional tasks, stream more media, and have more services running with an Intel® quad-core processor optimized for multitasking
- Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices
- Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,644 MB/s transfer speed
- Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices
- If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots
Description
TS-264 is a compact 2-bay NAS with superior performance. Supporting up to 22 TB storage and 4 TB M.2 SSD caching* at an affordable price, the TS-264 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.2.5GbE NAS is a must in 2023
With increasing availability on switches, motherboards, and laptops, 2023 is the year of 2.5GbE. By setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports to unleash network potential and increase fault tolerance, the TS-264 delivers up to 589 MB/s transfer speeds for fast data access workflow
Processor
Intel® Celeron® N5095 quad-core processor, burst up to 2.9 GHz
GPU
Built-in Intel® UHD Graphics to speed up video processing and graphical computing
Memory
Built-in 8 GB DDR4 memory..
Encryption Engine
Features Intel® AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data.
Upgrade to dual-port 10GbE with a PCIe network card
With a superior hardware design, you can install a dual-port 10GbE network card QXG-10G2TB in the TS-264. Combining 10GbE networking, quad-core processor, and M.2 SSD caching, the TS-264 unleashes its full performance potential.
Expand storage capacity up to 14 hard drives
TS-264 supports a storage capacity of up to 22 TB by installing two 3.5-inch 22 TB hard drives in RAID 1. By connecting a TL-D1600S QNAP storage expansion unit, you can add an additional fourteen hard drives to the TS-264 to achieve up to 240 TB storage space to meet growing storage requirements.
Accelerate AI–powered image recognition and caching with TPU and PCIe expansion
TS-264 has two M.2 PCIe Gen 3 slots for installing NVMe SSD (including Apacer®, Micron®, Seagate®, WD®, and more) or Edge TPU.
Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
If you have a huge number of small files requiring read/write operations, you can easily boost IOPS of TS-264 by configuring its two M.2 SSDs as a cache disk.
When transmitting bigger files, you can create a storage pool with two M.2 SSDs. With Qtier automatically moving hot data to SSD and cold data to hard drives, TS-264 allows you to enjoy exceptional application performance.
Accelerate AI–powered image recognition with TPU
By leveraging a Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-264 can perform high-speed face and object recognition. Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.
Abundant I/O capabilities with PCIe expansion
QNAP offers a wide range of expansion cards to add versatile functions to your NAS. The TS-264 has one PCIe Gen 3 x2 slot that supports various expansion cards for expanding application potential.
One Touch Copy backup with USB 3.2 Gen 2
TS-264 provides two 10Gbps USB 3.2 Gen 2 ports for faster file transfer to/from USB 3.2 Gen 2 devices. The One Touch Copy button also allows you to back up the contents of USB devices to the TS-264 with a single button press.
Smoother mobile experience with GPU
Taking a lot of photos with your smartphone? Qfile mobile app will help you free up space by automatically backing up photos to the TS-264. With Intel® UHD Graphics, the TS-264 greatly speeds up converting videos to 1080p / 720p, allowing for smooth streaming to mobile devices over varying mobile network speeds.
Use your NAS like a PC
QNAP’s exclusive Virtualization Station enables running multiple Windows®/Linux® virtual machines. By connecting a keyboard, mouse, and HDMI monitor, you can easily use the TS-264 as a PC.
Specifications
| Storage | |
|---|---|
| Total installed storage capacity | 0 TB |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Disk roaming | Yes |
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| RAID levels | 0, 1, JBOD |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of M.2 (M & B) slots | 2 |
| RAID rebuild | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Processor threads | 4 |
| Processor cache | 4 MB |
| Processor boost frequency | 2.9 GHz |
| On-board graphics card model | Intel® UHD Graphics |
| CPU configuration (max) | 1 |
| Processor frequency | 2 GHz |
| Processor family | Intel® Celeron® |
| Processor model | N5095 |
| Processor cores | 4 |
| Memory | |
| Internal memory | 8 GB |
| Maximum RAM supported | 8 GB |
| Flash memory | 4000 MB |
| Network | |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| Ports & interfaces | |
| USB port | Yes |
| HDMI version | 2.0 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Concurrent connections | 1500 |
| PCI Express x2 (Gen 3.x) slots | 1 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| RAID levels | 0, 1, JBOD |
| Graphics | |
| On-board graphics card model | Intel® UHD Graphics |
| Design | |
| Cooling type | Active |
| Fan diameter | 2.76" (7 cm) |
| Cable lock slot type | Kensington |
| Product colour | Black, Gold |
| Number of fans | 1 fan(s) |
| LED indicators | HDD, LAN, Power, Status, USB |
| Chassis type | Tower |
| Cable lock slot | Yes |
| Technical details | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | USB drive, iSCSI LUN |
| Product colour | Black, Gold |
| Number of users | 4096 user(s) |
| Multilingual support | Yes |
| LED indicators | HDD, LAN, Power, Status, USB |
| Chassis type | Tower |
| Buzzer | Yes |
| Number of fans | 1 fan(s) |
| Performance | |
| Built-in FTP server | Yes |
| System log | Yes |
| Share folder access right management | Yes |
| Share folder | 512 |
| S.M.A.R.T. support | Yes |
| Hot spare | Yes |
| Browser supported | Apple Safar, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Remotely operated | Yes |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | USB drive, iSCSI LUN |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Linux operating systems supported | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2 |
| Reset button | Yes |
| Operating system version | 5.0.1 |
| Operating system installed | QNAP Turbo System |
| Number of users | 4096 user(s) |
| Multilingual support | Yes |
| Buzzer | Yes |
| Access Control List (ACL) | Yes |
| Snapshot | Yes |
| USB copy function | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 2.76" (7 cm) |
| Fan voltage | 12 V |
| Number of fans | 1 fan(s) |
| Security | |
| Cable lock slot type | Kensington |
| Security algorithms | 256-bit AES, FIPS 140-2 |
| Cable lock slot | Yes |
| Access Control List (ACL) | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Linux operating systems supported | Yes |
| Operating system version | 5.0.1 |
| Operating system installed | QNAP Turbo System |
| Management features | |
| On/off switch | Yes |
| Reset button | Yes |
| Power | |
| Power supply location | External |
| Power supply unit (PSU) capacity | 65 W |
| Fan voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 29.086 W |
| Power consumption (sleep) | 18.288 W |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 4.13" (105 mm) |
| Depth | 8.9" (226 mm) |
| Height | 6.61" (168 mm) |
| Weight | 3.42 lbs (1.55 kg) |
| Packaging content | |
| Number of screws | 12 |
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Trusted Execution Technology | No |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Cables included | AC, LAN (RJ-45) |
