8", IPS LCD, 1920x1200 WUXGA, 400cd/m2, Qualcomm Snapdragon 660, octa-core, 2.2 GHz, 4GB PLDDR4x, 64GB EMMC, Micro SD 2TB Max, 8MP Rear Cam, 5MP Front Cam, 4900mAh, 18.62WHr, 1x USB 3.0 Type-C,1x USB 2.0 Type-A, 1x AIM 14-Pin pogo, 1x 3.5mm Combo Audio, Wi-Fi 5, BT 5.0, 1x 1.5W Speaker, 142x240x14.5mm, 600g
Advantech

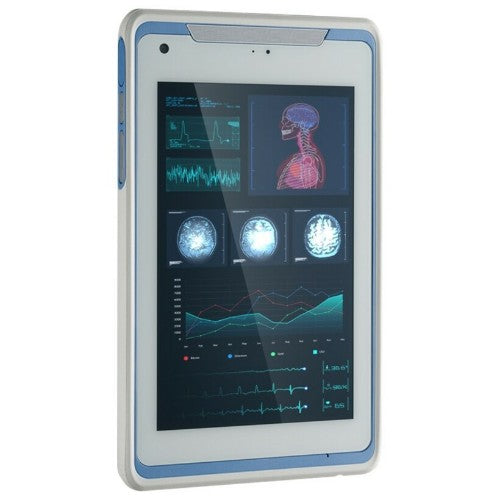

Advantech AIM-75H Qualcomm Snapdragon 64 GB 8" 4 GB Wi-Fi 5 (802.11ac) Android 10 White
Part number:
AIM-75H-211S10
$935.94
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Qualcomm® Snapdragon™ 660 processor with Android 12 and Android Enterprise Recommended certification
- 8" industrial-grade LCD with 1920x1200 resolution, 400-nit brightness, and up to 12,000 hours MTBF
- Projected capacitive touchscreen with scratch-resistant Corning® Gorilla® Glass
- Supports active stylus pen and gloved operation for increased usability
- IP65-rated protection from water and dust ingress and 4-ft drop tolerance
- Fast roaming and dual-band WLAN, BT 5.0, NFC, 3G/ 4G LTE connectivity for seamless communications
- Optional peripherals include a 1D/2D barcode scanner, LAN+COM module, and UHF RFID module
- Lightweight design and multi-tablet docking station supports deployment in diverse environments
- Equipped with DeviceOn/iService software for remote device management (Optional)
Description
Specifications
| Display | |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen type | Capacitive |
| Display brightness | 400 cd/m² |
| Display diagonal | 8" |
| Display glass type | Gorilla Glass |
| HD type | WUXGA |
| Panel type | IPS |
| Processor | |
| Processor manufacturer | Qualcomm |
| Processor boost frequency | 2.2 GHz |
| Processor model | 660 |
| Processor cores | 8 |
| Processor family | Qualcomm Snapdragon |
| Memory | |
| Internal memory | 4 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Storage | |
| Storage media | eMMC |
| Internal storage capacity | 64 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 2 TB |
| Audio | |
| Number of built-in speakers | 1 |
| Speaker power | 1.5 W |
| Camera | |
| Rear camera type | Single camera |
| Rear camera resolution (numeric) | 8 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Auto focus | Yes |
| Rear camera flash | Yes |
| Network | |
| Mobile network connection | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Near Field Communication (NFC) | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| 3.5 mm connector | Yes |
| Sensors | |
| Ambient light sensor | Yes |
| Gyroscope | Yes |
| Electronic compass | Yes |
| Design | |
| International Protection (IP) code | IP65 |
| Device type | Mobile tablet |
| Form factor | Slate |
| Product colour | White |
| Performance | |
| Operating system installed | Android 10 |
| Ambient light sensor | Yes |
| Gyroscope | Yes |
| Electronic compass | Yes |
| Technical details | |
| Device type | Mobile tablet |
| Near Field Communication (NFC) | Yes |
| Form factor | Slate |
| Product colour | White |
| Processor manufacturer | Qualcomm |
| Sustainability compliance | Yes |
| Compliance certificates | BSMI, CB, CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), NCC, RCM, State Radio Regulation of China (SRRC), Telecom Engineering Center (TELEC), UL, VCCI |
| Software | |
| Platform | Android |
| Operating system installed | Android 10 |
| Battery | |
| Battery capacity | 4900 mAh |
| Battery capacity | 18.62 Wh |
| Battery life (max) | 12 h |
| Battery recharge time | 3 h |
| Battery included | Yes |
| Power | |
| AC adapter power | 18 W |
| AC adapter output voltage | 9 V |
| AC adapter output current | 2 A |
| Endurance | |
| International Protection (IP) code | IP65 |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 9.45" (240 mm) |
| Depth | 5.59" (142 mm) |
| Height | 0.571" (14.5 mm) |
| Weight | 21.2 oz (600 g) |
| Certificates | |
| Compliance certificates | BSMI, CB, CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), NCC, RCM, State Radio Regulation of China (SRRC), Telecom Engineering Center (TELEC), UL, VCCI |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Processor manufacturer | Qualcomm |
| Processor family | Qualcomm Snapdragon |
