5-Port, 2.5 G, 9.24W, 158 x 101 x 29 mm, 480 g
RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.
Netgear

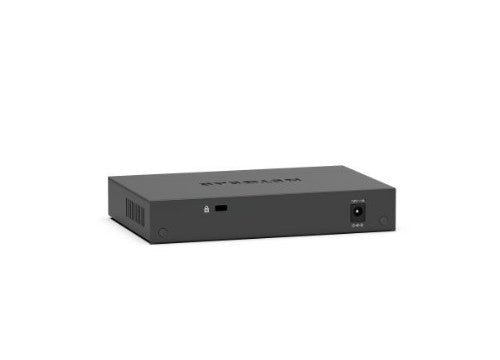

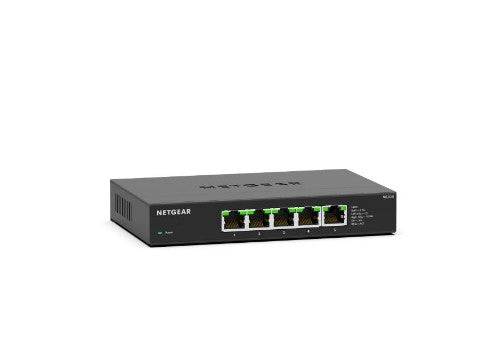

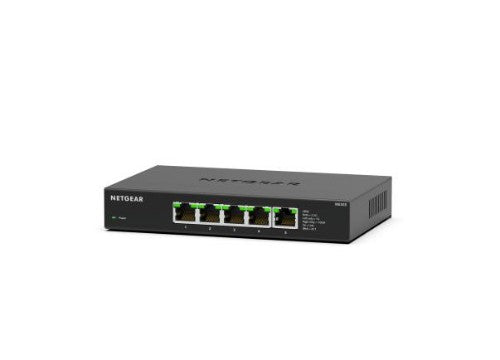

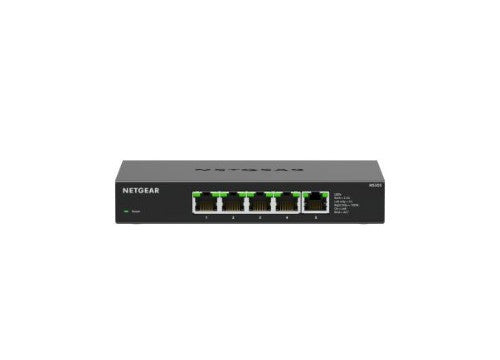

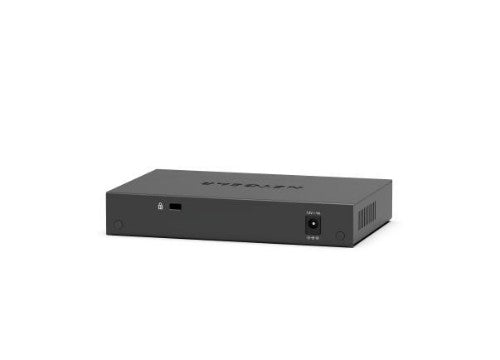

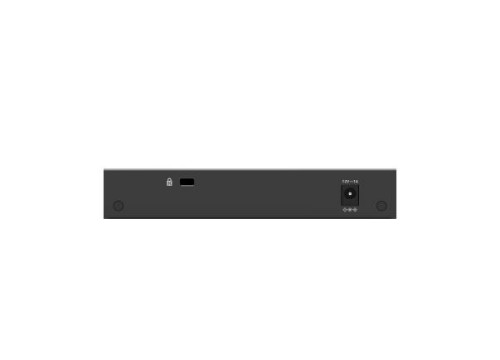

NETGEAR MS305-100NAS network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
Part number:
MS305-100NAS
Sale price
$143.54
Regular price
$170.82
Save
$27.28
16%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
The NETGEAR 5-port Multi-Gigabit Unmanaged Switch, MS305, helps businesses cost-effectively expand their networks with multi-gig speeds. The MS305 Multi-Gigabit Ethernet switch comes with five (5) 2.5G ports in a metal case and can be placed on a desk or mounted on a wall with the included wall mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.
Specifications
| Performance | |
|---|---|
| Packet buffer memory | 1 MB |
| Stackable | No |
| Mean time between failures (MTBF) | 1401743 h |
| Fanless | Yes |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Mean time between failures (MTBF) | 1401743 h |
| Housing material | Metal |
| Rack mounting | No |
| Compliance certificates | CCC, Low Voltage Directive (LVD) |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Network | |
| Cable length detection | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9720 |
| Latency (1 Gbps) | 2458 µs |
| Packet buffer memory | 1 MB |
| Jumbo frames support | Yes |
| Memory | |
| Packet buffer memory | 1 MB |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 9.24 W |
| Power supply included | Yes |
| Power consumption (typical) | 4.6 W |
| Input voltage | 12 V |
| Input current | 1 A |
| DC input voltage | 12 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Height | 1.14" (29 mm) |
| Weight | 16.9 oz (480 g) |
| Other features | |
| Input voltage | 12 V |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
