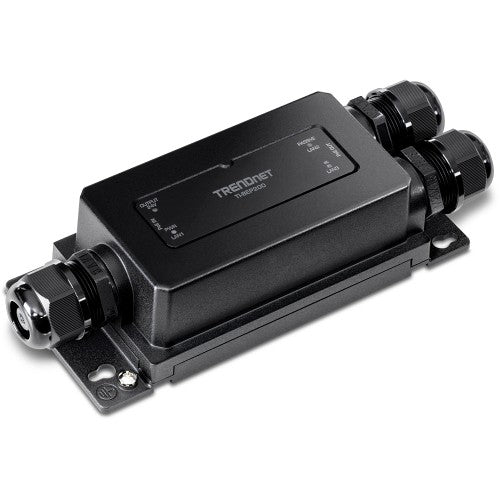

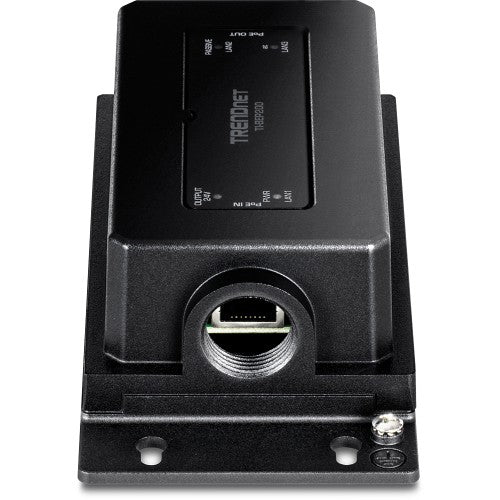

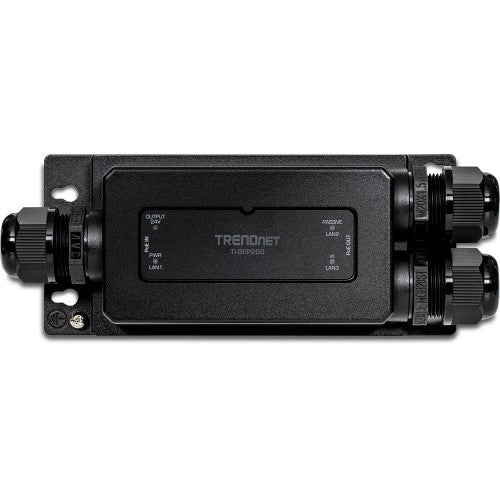

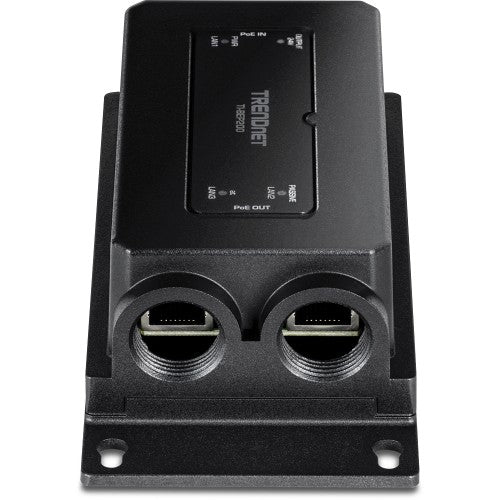

2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender
Trendnet
Trendnet TI-BEP200 network extender Network transmitter & receiver Black 10, 100, 1000 Mbit/s
Part number:
TI-BEP200
Sale price
$225.09
Regular price
$229.99
Save
$4.90
2%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Easy installation
- Extends 100m for a total distance of up to 200m (656 ft.)
- Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.)*
- Use a single PoE++ connection to extend PoE for up to two devices
- Supports PoE (15.4W), PoE+ (30W), and Passive PoE (24-48V) devices
- Supports single output Passive PoE (24-48V)
- Wide operating temperature range of -40°– 75° C (-40° – 167° F)
- IP67 outdoor weather rated housing
- No external power adapter required
- Built-in True Surge 4kV Protection
- Wall mountable
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s 2-Port Industrial Outdoor Gigabit PoE Extender, model TI-BEP200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE devices. It auto-detects a PoE (15.4W), PoE+ (30W), or PoE+ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1,640 ft.). This outdoor PoE extender features a single PoE++ input port, and one PoE+ and one Passive PoE output ports.Specifications
| Performance | |
|---|---|
| Jumbo frames support | Yes |
| MAC address table | 2048 entries |
| Flow control support | Yes |
| Duplex system | Full |
| International Protection (IP) code | IP67 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 7874" (200 m) |
| Data transfer rate | 2000 Mbit/s |
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| Host interface | RJ-45 |
| Design | |
| LED indicators | Yes |
| Certification | FCC IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| Product colour | Black |
| Quantity per pack | 1 pc(s) |
| Power | |
| Power consumption (max) | 3.9 W |
| Total Power over Ethernet (PoE) budget | 60 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 6.57" (167 mm) |
| Depth | 2.91" (74 mm) |
| Height | 1.73" (44 mm) |
| Weight | 9.38 oz (266 g) |
| Packaging content | |

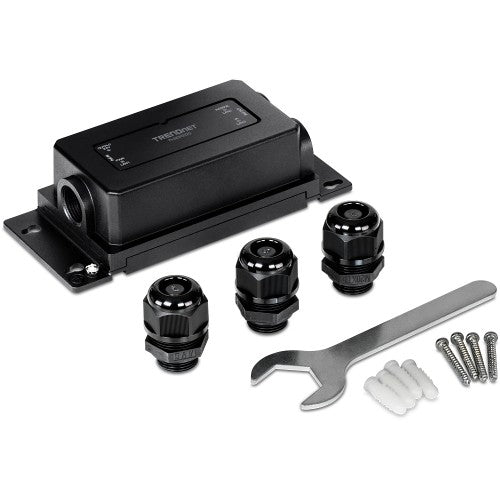

| Wall mounting kit | Yes |
| AC adapter included | No |
| Quick start guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Jumbo frames support | Yes |
| MAC address table | 2048 entries |
| Flow control support | Yes |
| Duplex system | Full |
| International Protection (IP) code | IP67 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LED indicators | Yes |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 7874" (200 m) |
| Data transfer rate | 2000 Mbit/s |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| Compliance certificates | CE, RoHS |
