EPYC3101D4I-2T, AMD EPYC 3101, 4x DDR4 DIMM, M.2, 6x SATA III, 2x 10G RJ-45, VGA, USB 3.0, Mini-ITX, 170.2x170.2 mm
Asrock

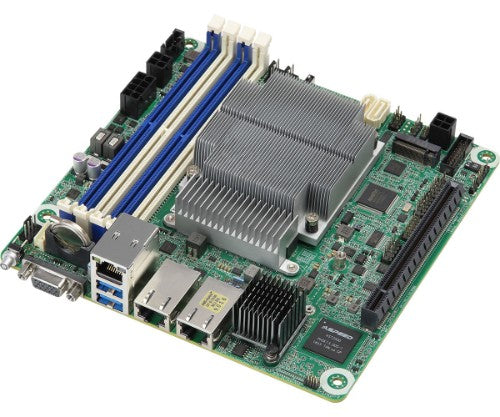

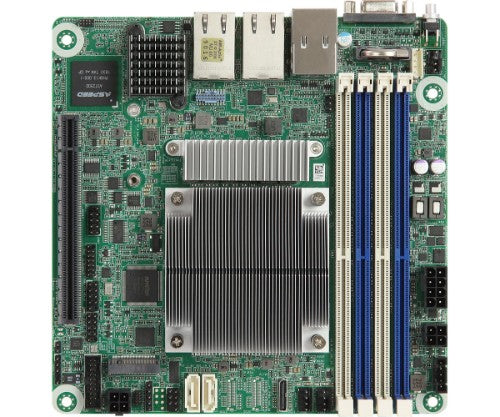

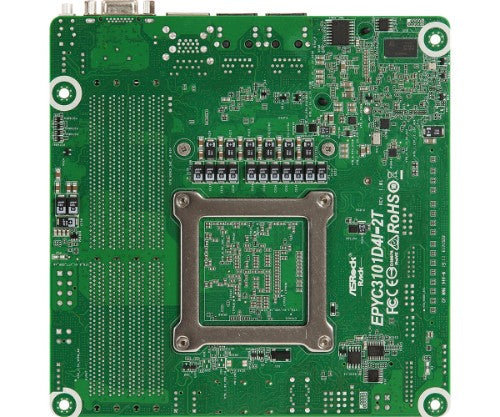

Asrock EPYC3101D4I-2T motherboard System on Chip mini ITX
Part number:
EPYC3101D4I-2T
$637.92
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports AMD EPYC™ 3101 Processor
- Supports 4x DDR4 ECC/UDIMM, RDIMM up to 2667MT/s; 2DPC
- Supports up to 1 x OCulinks (PCIe3.0x4 or 4x SATAIII 6Gb/s)
- 1 x PCIe x 16 slot
- Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
- Supports 12V DC or ATX Power Source
Description
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Supported storage drive interfaces | SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 6 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| CPU fan connector | Yes |
| Technical details | |
| Motherboard chipset | System on Chip |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Motherboard form factor | mini ITX |
| Component for | Workstation |
| Performance | |
| Motherboard chipset | System on Chip |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Motherboard form factor | mini ITX |
| Component for | Workstation |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD EPYC |
| Processor number of cores supported | 4 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Supported RDIMM clock speeds | 2133,2400,2666 MHz |
| Supported UDIMM clock speeds | 2133,2400,2666 MHz |
| Supported RDIMM module capacity | 128GB, 4GB, 8GB, 16GB, 32GB, 64GB |
| Supported UDIMM module capacity | 4GB, 8GB, 16GB, 32GB, 64GB |
| Maximum internal memory | 256 GB |
| Storage controllers | |
| Supported storage drive interfaces | SATA III |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card model | Aspeed AST2500 |

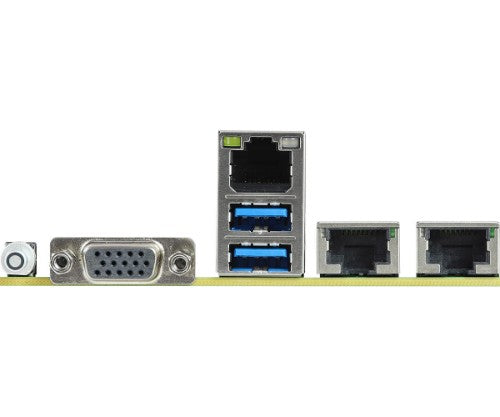

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel® X550-AT2, Realtek RTL8211E |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Features | |
| Motherboard chipset | System on Chip |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Compatible operating systems | Windows Server 2016 (x64); Linux Red Hat Enterprise Linux Server 7.4 (x64), CentOS 7.4 (x64) / 7.6 (x64), Ubuntu 18.04.2 (x64) |
| Motherboard form factor | mini ITX |
| Component for | Workstation |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0 |
| System Management BIOS (SMBIOS) version | 2.8 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
| Width | 6.7" (170.2 mm) |
| Depth | 6.7" (170.2 mm) |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | SATA |
| Other features | |
| Supported RDIMM clock speeds | 2133,2400,2666 MHz |
| Supported UDIMM clock speeds | 2133,2400,2666 MHz |
| Supported RDIMM module capacity | 128GB, 4GB, 8GB, 16GB, 32GB, 64GB |
| Supported UDIMM module capacity | 4GB, 8GB, 16GB, 32GB, 64GB |
| Quick installation guide | Yes |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Compatible operating systems | Windows Server 2016 (x64); Linux Red Hat Enterprise Linux Server 7.4 (x64), CentOS 7.4 (x64) / 7.6 (x64), Ubuntu 18.04.2 (x64) |
