Mini-ITX (6.7'' x 6.7''), Supports Intel Xeon D-2163 Processors, 4 x 288-pin DDR4 DIMM slots, up to 256GB DDR4 ECC RDIMM/LR DIMM, 1.2V
Asrock

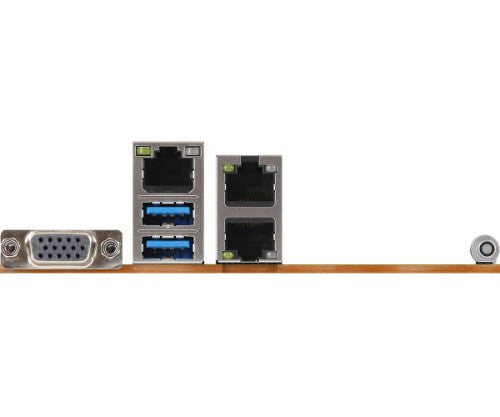

Asrock D2163D4I2-2T motherboard mini ITX
Part number:
D2163D4I2-2T
Sale price
$1,768.02
Regular price
$1,784.80
Save
$16.78
1%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports Intel® Xeon® D-2163 Processors
- Support 4 x DDR4 2133/2400/2666* R DIMM, LR DIMM; 1DPC
- 4 OCuLinks support PCIe3.0 x4; 2 of OCulinks support 4 SATAIII 6Gb/s each
- 1 PCIe3.0 x 16
- Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
- Supports 12V DC-IN or ATX Power Source
Description
Specifications
| Technical details | |
|---|---|
| Motherboard form factor | mini ITX |
| Component for | PC |
| Performance | |
| RAID levels | 0, 1, 5, 10 |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Quad-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Maximum internal memory | 256 GB |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 256 MB |
| Internal I/O | |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel X557-AT2 |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| ACPI version | 1.1 |
| System Management BIOS (SMBIOS) version | 2.3.1 |
| Video | |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
