1/2.7” RGB CMOS, F2.0, 0.16 lux, WDR, 1024MB RAM, 8192 MB Flash, PoE, RJ-45
Axis

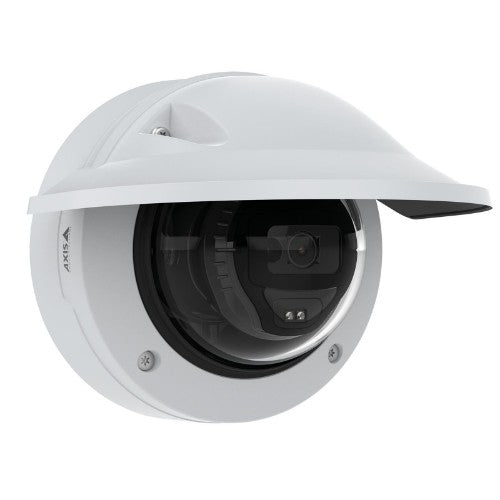

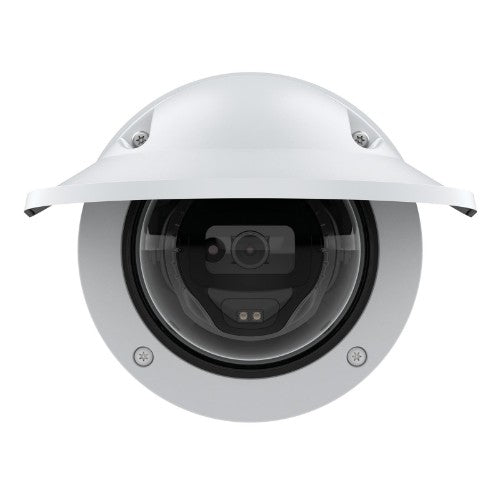

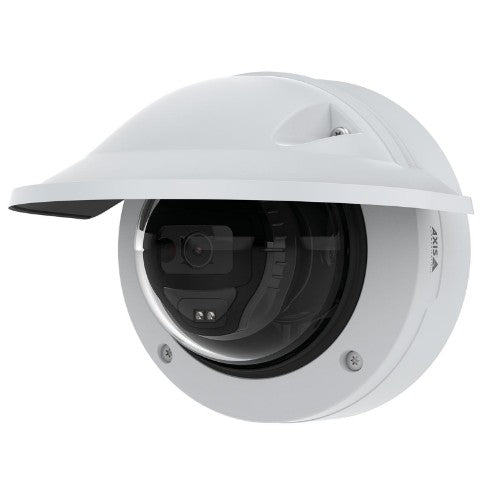

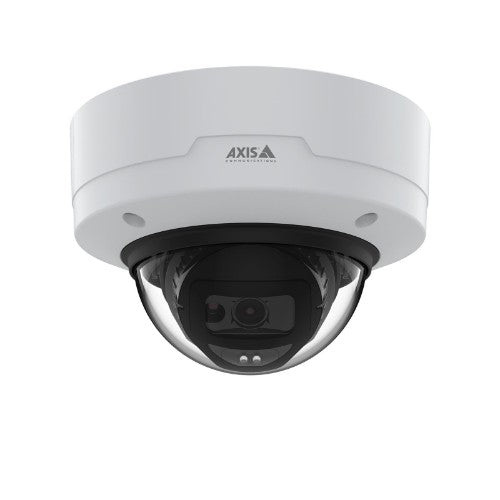

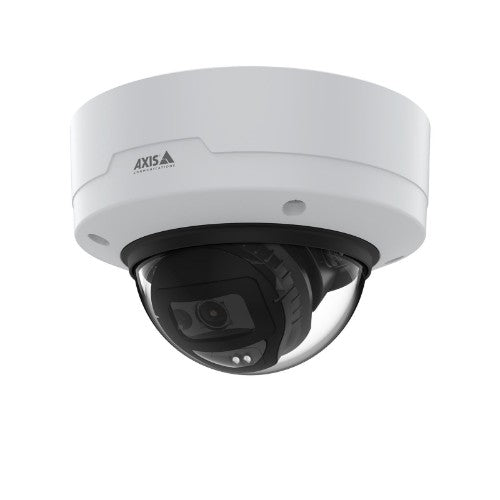

Axis M3216-LVE Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall
Part number:
02372-001
$733.26
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Analytics with deep learning; Audio and I/O connectivity; Built-in cybersecurity features; Excellent image quality in 4 MP; Lightfinder, Forensic WDR, OptimizedIR
Description
This cost-effective fixed focal dome offers Lightfinder, Forensic WDR, and OptimizedIR, and ensures excellent image quality under any light conditions. Built on ARTPEC-8, it includes a deep learning processing unit enabling powerful analytics based on deep learning on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. And AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Featuring audio and I/O connectivity, you can integrate for instance a microphone to extend the value of your system. Furthermore, built-in cybersecurity features safeguard your system.Specifications
| Performance | |
|---|---|
| PTZ modes | Digital PTZ |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| IK code | IK10 |
| Fog proof | Yes |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Housing material | Plastic, Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0.16 lx |
| Tilt angle range | -10 - 80° |
| Pan range | 0 - 190° |
| Angle of rotation | 190° |
| Camera shutter speed | 1/50000 - 1/5 s |
| Lens viewing angle, horizontal | 102° |
| Lens viewing angle, vertical | 73° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/2.7" |
| Lens system | |
| Closest focusing distance | 39.4" (1 m) |
| Minimum aperture number | 2 |
| Zoom capability | Yes |
| Fixed focal length | 0.114" (2.9 mm) |
| Night vision | |
| Night vision | Yes |
| LED type | IR |
| Video | |
| Privacy masking | Yes |
| Video compression formats | H.264, H.265 |
| Maximum resolution | 2688 x 1512 pixels |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 1024 MB |
| Flash memory | 8192 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 8192 MB |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Video compression formats | H.264, H.265 |
| Type | IP security camera |
| Form factor | Dome |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Progressive scan | Yes |
| Security | |
| Security algorithms | EAP-TLS, HTTPS |
| HTTPS encryption | Yes |
| Material | |
| Housing material | Plastic, Polycarbonate (PC) |
| Power | |
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
| Certificates | |
| International Protection (IP) code | IP66 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 4.02" (102 mm) |
| Diameter | 5.87" (14.9 cm) |
| Weight | 27.9 oz (791 g) |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265 |
