2-Port Gigabit PoE++ Extender
Trendnet

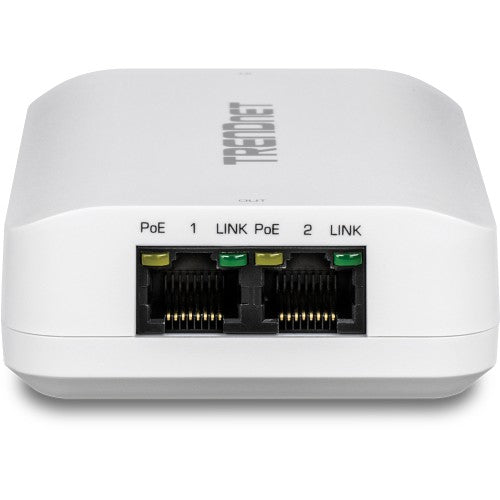

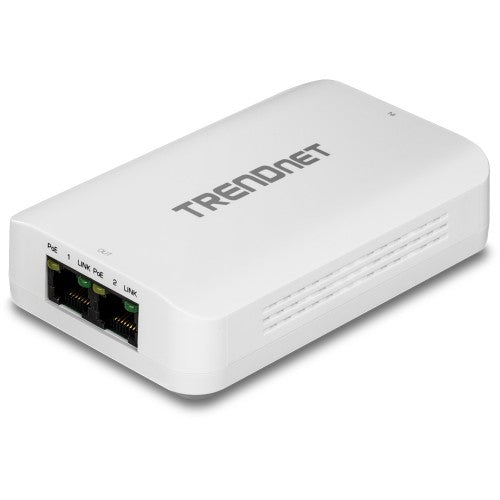

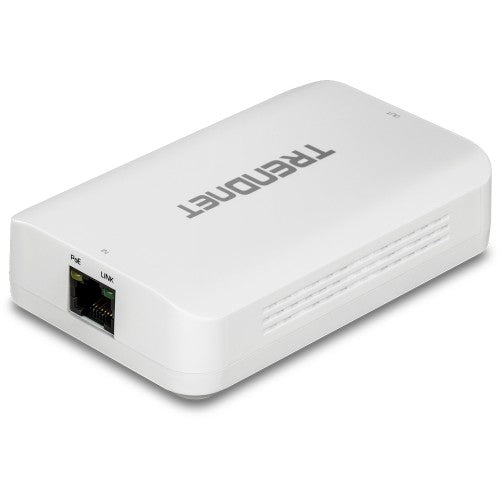

Trendnet TPE-BE200 network extender Network transmitter & receiver White 10, 100, 1000 Mbit/s
Part number:
TPE-BE200
$62.20
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Easy installation
- Extends 100m (328 ft.) for a total distance of up to 200m (656 ft.)
- Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.)
- Use a single PoE++ (60W) connection to extend PoE+ (30W) for up to two devices
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices
- Convenient wall mountable design
- No external power adapter required
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s 2-Port Gigabit PoE++ Extender, model TPE-BE200, takes a single PoE++ (60W) connection and extends it an additional 100m (328 ft.) for up to two PoE+ (30W) devices. This dual/multi-port extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) input, and extends it for a total distance of up to 200m (656 ft.) from the PoE source. Daisy chain up to four extenders for a total PoE network extension of up to 500m (1,640 ft.). This gigabit PoE++ range extender features a single PoE++ (60W) input port and two PoE+ (30W) output ports.Specifications
| Performance | |
|---|---|
| Jumbo frames support | Yes |
| MAC address table | 2048 entries |
| Flow control support | Yes |
| Duplex system | Full, Half |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 7874" (200 m) |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 2000 Mbit/s |
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| Design | |
| LED indicators | Yes |
| Certification | FCC NDAA / TAA |
| Product colour | White |
| Quantity per pack | 1 pc(s) |
| Power | |
| Power consumption (max) | 3.3 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 60 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
| Width | 2.76" (70 mm) |
| Depth | 4.33" (110 mm) |
| Height | 1.14" (29 mm) |
| Weight | 4.41 oz (125 g) |
| Packaging content | |
| Wall mounting kit | Yes |
| AC adapter included | No |
| Quick start guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Jumbo frames support | Yes |
| MAC address table | 2048 entries |
| Flow control support | Yes |
| Duplex system | Full, Half |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LED indicators | Yes |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 7874" (200 m) |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 2000 Mbit/s |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Colour | |
| Product colour | White |
| Certificates | |
| Certification | FCC NDAA / TAA |
| Compliance certificates | CE |
