6MP X 2 IR outdoor Dome
Hanwha

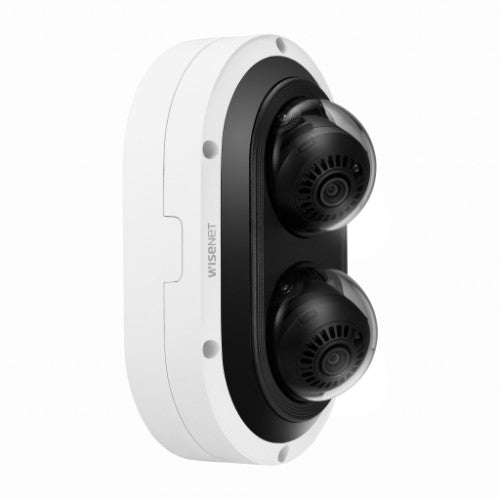

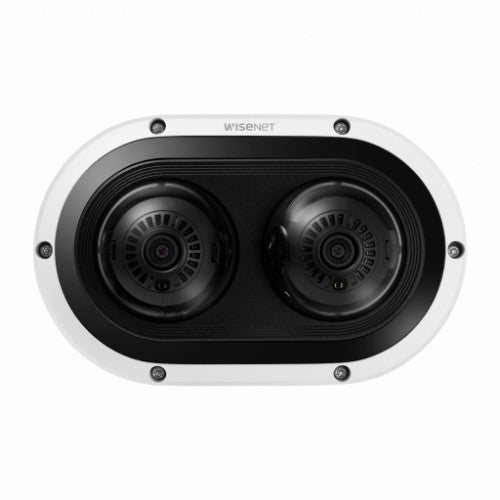

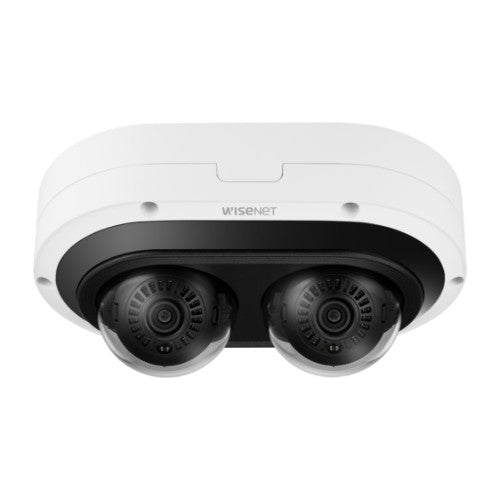

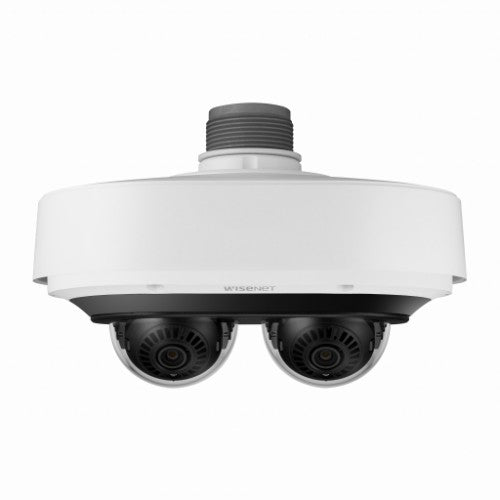

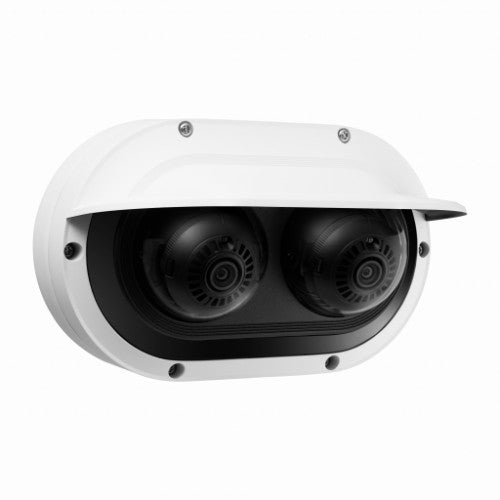

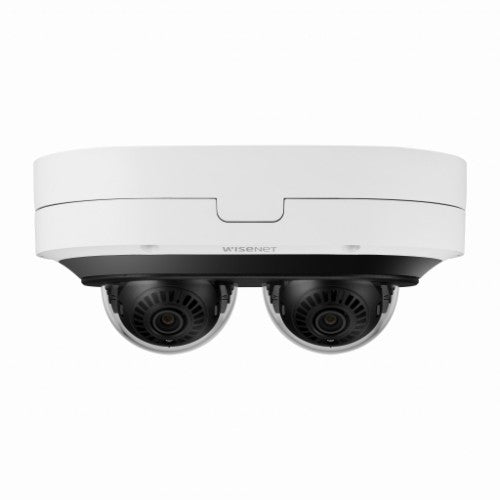

Hanwha PNM-12082RVD security camera Dome IP security camera Outdoor 3328 x 1872 pixels Ceiling
Part number:
PNM-12082RVD
Sale price
$1,167.87
Regular price
$1,700.00
Save
$532.13
31%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
The PNM-12082RVD is an outdoor vandal-rated network camera featuring 2 Channels, with IR in a dome camera form factor. Featuring 6MP X 2 sensors, each at 15fps with a 3.4~6.8mm(2x) (95.08°~47.64°) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG). The IR viewable length is 25m (82ft), and features a USB port for easy installation, Day & Night (ICR), extremeWDR (120dB), DIS, & Handover. License-free intelligent video analytics include: Virtual line/direction, Enter/Exit, Appear/Disappear, Loitering, intrusion, Defocus detection, Motion detection, Tampering. Audio detection, Sound classification (with optional I/O Box). FIPS 140-2, micro SD card 512GB, IP66, NEMA4X, IK10. Operating temperature: -40°C~+55°C(-40°F ~ +131°F), Power: PoE+, Metal shielded RJ-45, Hard-coated dome bubbleSpecifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Dynamic range | 120 dB |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminum |
| Camera | |
| Adjustment shutter speed | Auto |
| Minimum illumination | 0.016 lx |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 355° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Angle of rotation | 180° |
| Camera shutter type | Electronic |
| Camera shutter speed | 2 ~1/12,000 s |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 1/2.8" |
| Number of sensors | 2 |
| Lens system | |
| Maximum aperture number | 2.64 |
| Focal length range | 3.54 - 6.69 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 25 m |
| Video | |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Gain control type | Manual |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Back Light Compensation (BLC) | Yes |
| Maximum resolution | 3328 x 1872 pixels |
| Video formats supported | H.264, H.265, MJPG |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2592 x 1944, 2688 x 1520, 3072 x 1728 |
| Frame rate | 15 fps |
| Total megapixels | 6 MP |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Storage | |
| Maximum memory card size | 512 GB |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 4 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| USB port | Yes |
| Connectivity technology | Wired |
| Memory | |
| Internal memory | 4 MB |
| Flash memory | 512 MB |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Type | IP security camera |
| Form factor | Dome |
| Placement supported | Outdoor |
| Product colour | White |
| Mounting type | Ceiling |
| Wide Dynamic Range (WDR) | Yes |
| Security | |
| HTTPS encryption | Yes |
| Mirror | Yes |
| Material | |
| Housing material | Aluminum |
| Power | |
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 13.5 W |
| Certificates | |
| International Protection (IP) code | IP66, IP67 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Weight & dimensions | |
| Width | 8.46" (215 mm) |
| Depth | 5.31" (135 mm) |
| Height | 3.67" (93.2 mm) |
| Weight | 2.93 lbs (1.33 kg) |
| Packaging content | |
| Number of cameras | 1 |
