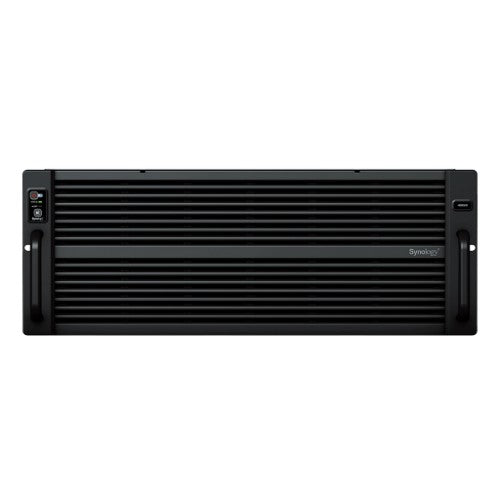

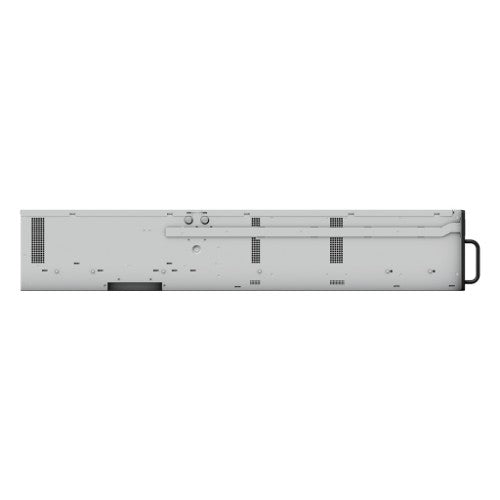

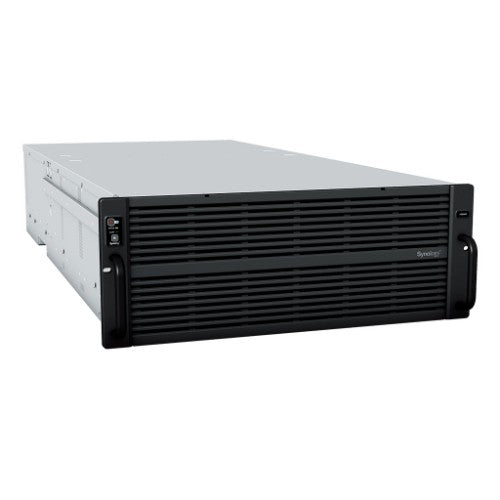

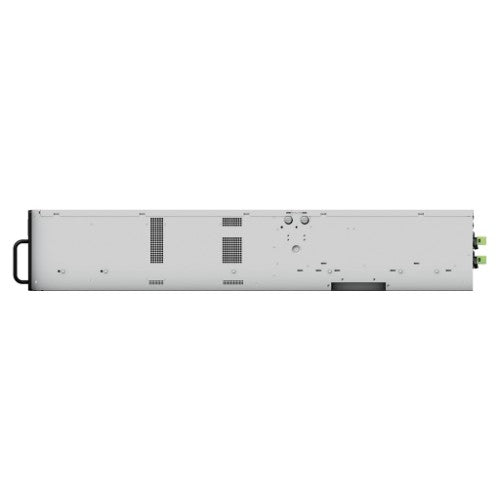

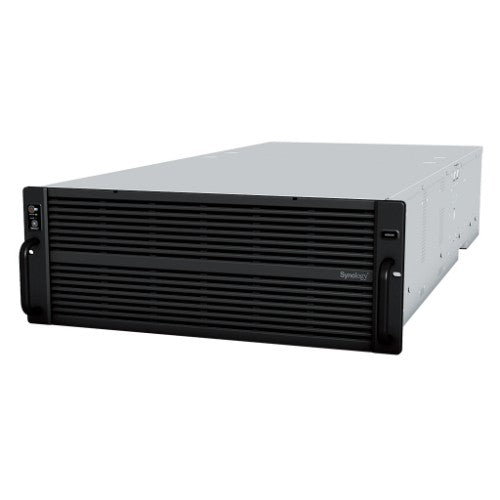

High Density HD6500, 2 x Intel Xeon Silver 4210R 10-core, 64 GB DDR4 ECC RDIMM, 60 x 3.5" SAS HDD, Rackmount 4U
With 60 bays in a 4U rackmount enclosure and support for up to 300 drives after expansion, the Synology HD6500 is the ideal high-density storage solution for large-scale warm and cold storage applications such as full system backups, video post-production, and large surveillance deployments.
Consistent performance at five times the size
The HD6500 is designed to scale up to 5 times in capacity with four additional RX6022sas expansion units. SAS multipath-enabled connectivity provides up to double the typical performance together and increased redundancy.
Built for high reliability
The HD6500 is built to keep mission-critical data and services accessible, so that businesses can continue to perform even when disaster strikes.
Out-of-band (OOB) management
Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.
Dual power supply
Reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability with redundant PSUs.
High-reliability expansion architecture
Redundant SAS links prevent single points of failure from affecting other expansion units, ensuring higher data and service availability.
Powerful networking options
The HD6500 supports a large variety of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.
Built-in fast connectivity

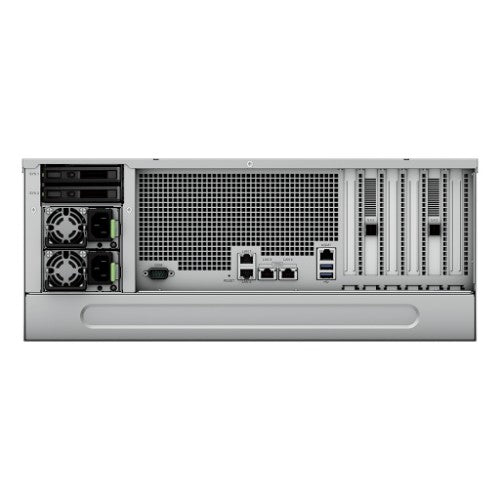

Three Gigabit Ethernet and two 10GbE RJ-45 ports allow for rapid transfer speeds right out of the box.
Mix and match network ports
Add extra 10GbE SFP+/RJ-45, 25GbE SFP28, or Fibre Channel ports in varying configurations by leveraging the four expansion slots.2
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Consolidate your data storage
Back up your backup solutions, bring all your files together in one place, or bring distributed surveillance deployments under central control.
Massive file server
Host and retrieve massive files from extensive archives whenever needed. Provide user friendly access and set up powerful cross-site syncing.
Central backup server
Protect large numbers of PCs, servers, Synology systems, and hypervisors, or back up your backup servers with a central storage solution.
Main surveillance storage
Manage distributed deployments of hundreds of local recording servers and thousands of IP cameras centrally.
Get more with DiskStation Manager
Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.
Synology
Synology HD6500 NAS/storage server Rack (4U) Intel Xeon Silver 4210R 64 GB DDR4 Black
Part number:
HD6500
$20,616.41
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
All the space you will ever needWith 60 bays in a 4U rackmount enclosure and support for up to 300 drives after expansion, the Synology HD6500 is the ideal high-density storage solution for large-scale warm and cold storage applications such as full system backups, video post-production, and large surveillance deployments.
Consistent performance at five times the size
The HD6500 is designed to scale up to 5 times in capacity with four additional RX6022sas expansion units. SAS multipath-enabled connectivity provides up to double the typical performance together and increased redundancy.
Built for high reliability
The HD6500 is built to keep mission-critical data and services accessible, so that businesses can continue to perform even when disaster strikes.
Out-of-band (OOB) management
Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.
Dual power supply
Reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability with redundant PSUs.
High-reliability expansion architecture
Redundant SAS links prevent single points of failure from affecting other expansion units, ensuring higher data and service availability.
Powerful networking options
The HD6500 supports a large variety of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.
Built-in fast connectivity
Three Gigabit Ethernet and two 10GbE RJ-45 ports allow for rapid transfer speeds right out of the box.
Mix and match network ports
Add extra 10GbE SFP+/RJ-45, 25GbE SFP28, or Fibre Channel ports in varying configurations by leveraging the four expansion slots.2
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Consolidate your data storage
Back up your backup solutions, bring all your files together in one place, or bring distributed surveillance deployments under central control.
Massive file server
Host and retrieve massive files from extensive archives whenever needed. Provide user friendly access and set up powerful cross-site syncing.
Central backup server
Protect large numbers of PCs, servers, Synology systems, and hypervisors, or back up your backup servers with a central storage solution.
Main surveillance storage
Manage distributed deployments of hundreds of local recording servers and thousands of IP cameras centrally.
Get more with DiskStation Manager
Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.
Specifications
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 60 |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 3.5" |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| Storage drive sizes supported | 3.5" |
| Total installed system drives capacity | 960 GB |
| Number of system drives installed | 2 |
| Number of system drives supported | 2 |
| System drive type | SSD |
| System drive capacity | 480 GB |
| Processor | |
| Processor manufacturer | Intel |
| Processor threads | 20 |
| Processor cache | 13.75 MB |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.4 GHz |
| Processor family | Intel Xeon Silver |
| Processor model | 4210R |
| Processor cores | 10 |
| Number of processors supported | 2 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 64 GB |
| Maximum RAM supported | 512 GB |
| Memory form factor | RDIMM |
| ECC | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Supported network protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| iSCSI support | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| External mini-SAS ports | 2 |
| Ethernet LAN (RJ-45) ports | 5 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Design | |
| Cooling type | Active |
| Fan diameter | 3.15" (8 cm) |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| LED indicators | Yes |
| Chassis type | Rack (4U) |
| Technical details | |
| Type | Storage server |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Product colour | Black |
| Number of users | 16000 user(s) |
| Multilingual support | Yes |
| LED indicators | Yes |
| Chassis type | Rack (4U) |
| Number of fans | 4 fan(s) |
| Performance | |
| Built-in FTP server | Yes |
| Share folder access right management | Yes |
| Remotely operated | Yes |
| Type | Storage server |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Web-based management | Yes |
| Security algorithms | HTTPS, SSH, SSL/TLS |
| Number of users | 16000 user(s) |
| Multilingual support | Yes |
| Access Control List (ACL) | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 3.15" (8 cm) |
| Number of fans | 4 fan(s) |
| Security | |
| Security algorithms | HTTPS, SSH, SSL/TLS |
| Access Control List (ACL) | Yes |
| Management features | |
| Web-based management | Yes |
| Power | |
| Power supply location | Built-in |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Weight & dimensions | |
| Width | 17.2" (438 mm) |
| Depth | 38.8" (985 mm) |
| Height | 6.93" (176 mm) |
| Weight | 83.6 lbs (37.9 kg) |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Operating altitude | 0 - 196850.4" (0 - 5000 m) |
