mini ITX, Intel Celeron Quad-Core J6412, 2 x DDR4 SO-DIMM, Gigabit Ethernet, 1 x SATA Gen 3.0, HDMI, Displayport
ASUS J6412T-IM-A is a Thin Mini-ITX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller and thinner board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with a mini PCIe slot, M.2 E key, M.2 M key, ASUS J6412T-IM-A is an ideal choice for a wide range of embedded applications.
As the world’s No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
ASUS

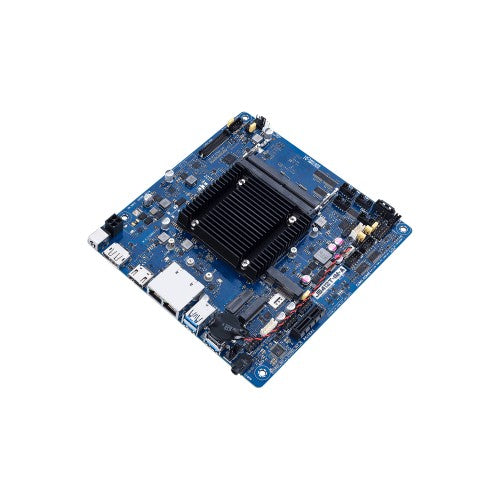

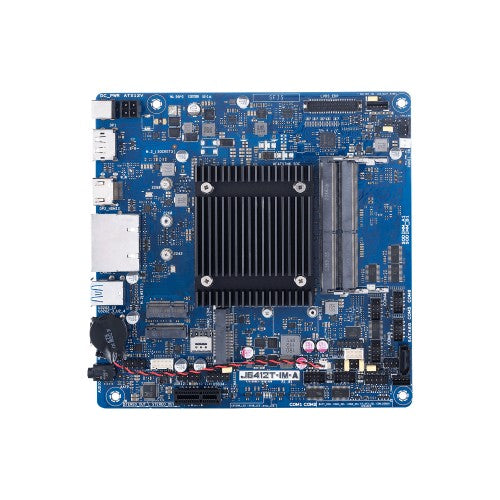

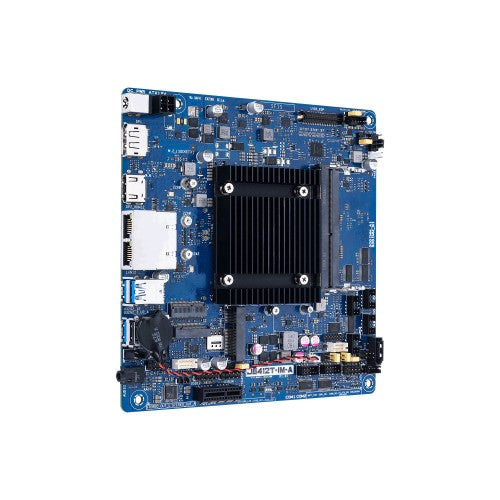

ASUS J6412T-IM-A mini ITX
Part number:
J6412T-IM-A
$169.78
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Fan-less mini-ITX Industrial MB with Intel Celeron® J6412 processor
- Supports 3 displays configuration by multiple interface: HDMI/DP/LVDS/eDP(optional)
- 7 years of longevity with extended product life cycles
- Advanced I/O and connectivity features
- Wide temperature range endurance: 0–60°C
Description
Fan-less thin mini-ITX motherboard for Intel Celeron® Quad-Core J6412 processor, Low-power, 2 x SO-DIMM slots, HDMI, LVDS, M.2 E Key, M.2 M Key, Mini-PCIe, 6 x COMASUS J6412T-IM-A is a Thin Mini-ITX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller and thinner board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with a mini PCIe slot, M.2 E key, M.2 M key, ASUS J6412T-IM-A is an ideal choice for a wide range of embedded applications.
As the world’s No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
Specifications
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Serial port headers | 6 |
| HDMI version | 1.4b |
| Motherboard form factor | mini ITX |
| Performance | |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 IoT Enterprise, Windows 10 x64 |
| Linux operating systems supported | Yes |
| Certification | CE, FCC, VCCI, BSMI, RCM CE-LVD |
| Motherboard form factor | mini ITX |
| Processor | |
| Processor manufacturer | Intel |
| Processor cores | 4 |
| Processor model | J6412 |
| Compatible processor series | Intel® Celeron® |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Supported memory types | DDR4-SDRAM |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200 MHz |
| Maximum internal memory | 32 GB |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 6 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 1 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| Chassis intrusion connector | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| DisplayPort version | 1.2 |
| USB 2.0 ports quantity | 1 |
| HDMI version | 1.4b |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Features | |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 IoT Enterprise, Windows 10 x64 |
| Linux operating systems supported | Yes |
| Certification | CE, FCC, VCCI, BSMI, RCM CE-LVD |
| Motherboard form factor | mini ITX |
| Audio chip | Realtek ALC897 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| Certificates | |
| Certification | CE, FCC, VCCI, BSMI, RCM CE-LVD |
| Software | |
| Windows operating systems supported | Windows 10 IoT Enterprise, Windows 10 x64 |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 6.69" (170 mm) |
| Depth | 6.69" (170 mm) |
