Intel Celeron N5105, 8GB SO-DIMM DDR4, 250W x1, 185.5 (H) x 233 (W) x 230 (D) mm, 100V to 240V AC
The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel’s Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance.
The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.
Unleashed Potential
Supports Premiere Pro & Final Cut Pro
Easily collaborate with anyone, anywhere.
Adobe Creative Cloud data backup and version control
Stream YouTube and/or Twitch videos with rebroadcasting and live recording functionality
CPU
Intel’s newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.
USB 3.2 Gen 2x1 – A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps.
Four M.2 Slots
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.
Asustor

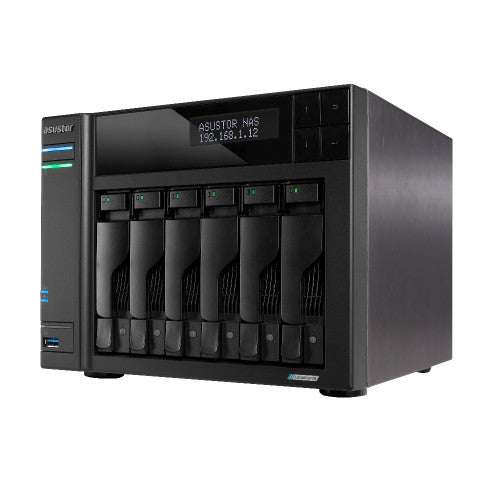

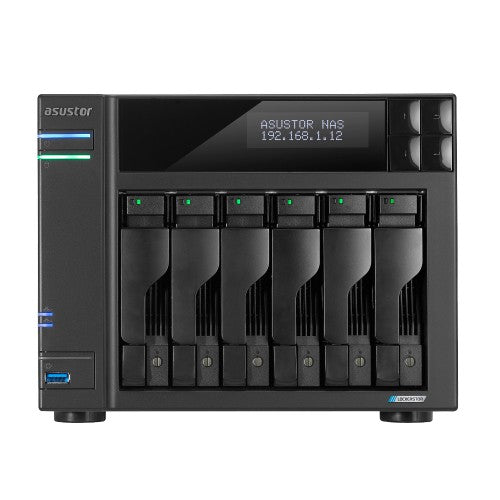

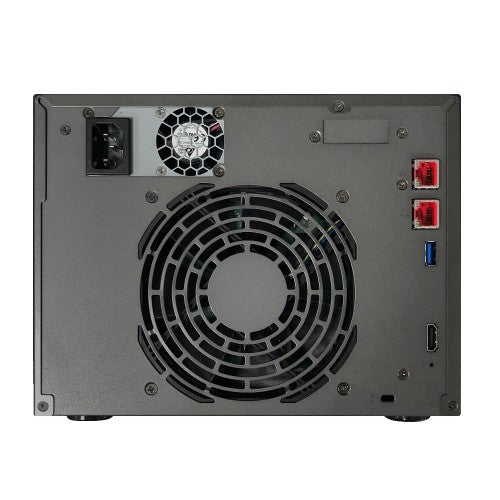

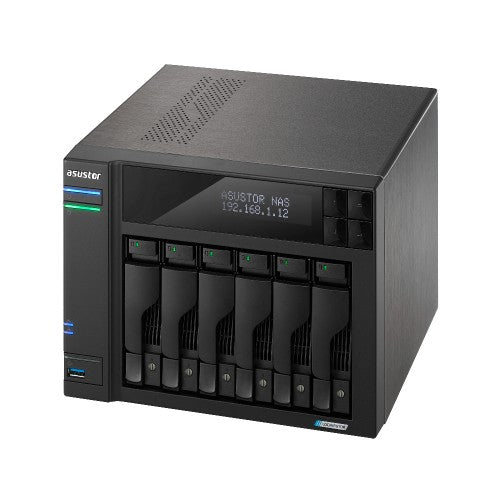

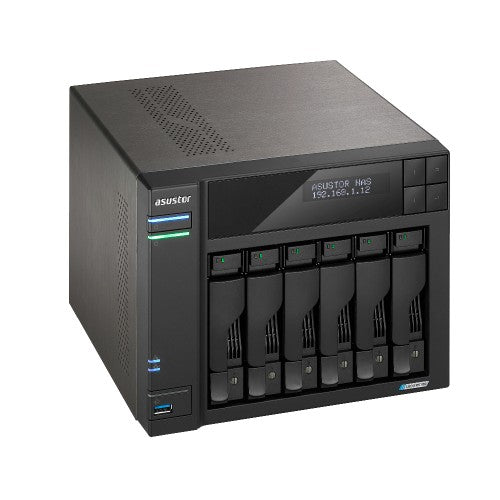

Asustor LOCKERSTOR 6 NAS Desktop Ethernet LAN Black N5105
Part number:
AS6706T
Sale price
$803.45
Regular price
$891.99
Save
$88.54
10%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Quad-Core 10 nm Intel Celeron N5105 CPU brings 31% more performance
- Superfast 2.5-Gigabit Ethernet ports
- Flexible PCIe slot for 10GbE NICs or M.2 SSDs
- Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0
- Uses DDR4-2933 with 40% more performance
- USB 3.2 Gen2 ports – 10Gbps speed
- Enjoy, download, upload and stream content with 4K transcoding
- Increased ventilation for SSDs
- Supports Wake on LAN and Wake on WAN
Description
Enthusiast-grade NAS with two, four or six baysThe LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel’s Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance.
The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.
Unleashed Potential
Supports Premiere Pro & Final Cut Pro
Easily collaborate with anyone, anywhere.
Adobe Creative Cloud data backup and version control
Stream YouTube and/or Twitch videos with rebroadcasting and live recording functionality
CPU
Intel’s newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.
USB 3.2 Gen 2x1 – A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps.
Four M.2 Slots
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.
Specifications
| Storage | |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 6 |
| Storage drive interface | M.2, Serial ATA, Serial ATA II, Serial ATA III |
| RAID support | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Number of M.2 (M & B) slots | 4 |
| Processor | |
| Processor manufacturer | Intel |
| Processor threads | 4 |
| Processor boost frequency | 2.9 GHz |
| On-board graphics card model | Intel® UHD Graphics |
| CPU configuration (max) | 1 |
| Processor frequency | 2 GHz |
| Processor family | Intel® Celeron® |
| Processor model | N5105 |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 8 GB |
| Maximum RAM supported | 16 GB |
| Memory slots | 2 |
| Flash memory | 8000 MB |
| Memory form factor | SO-DIMM |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Supported network protocols | CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog |
| Jumbo frames support | Yes |
| Ports & interfaces | |
| USB port | Yes |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Graphics | |
| On-board graphics card model | Intel® UHD Graphics |
| Design | |
| Cooling type | Active |
| Fan diameter | 4.72" (12 cm) |
| Built-in display | Yes |
| Display type | LCD |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Chassis type | Desktop |
| Technical details | |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Built-in display | Yes |
| Display type | LCD |
| Product colour | Black |
| Noise level | 18.1 dB |
| Chassis type | Desktop |
| Number of fans | 1 fan(s) |
| Harmonized System (HS) code | 84714100 |
| Performance | |
| Browser supported | Firefox, Chrome, Safari, Microsoft Edge |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Windows operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2012 Core, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Operating system version | 4.1 |
| Operating system installed | ADM |
| Noise level | 18.1 dB |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 4.72" (12 cm) |
| Number of fans | 1 fan(s) |
| Software | |
| Windows operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2012 Core, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Operating system version | 4.1 |
| Operating system installed | ADM |
| Power | |
| Power consumption (HDD standby) | 27.7 W |
| Power supply location | External |
| Power supply unit (PSU) capacity | 250 W |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 48.5 W |
| Power consumption (sleep) | 0.81 W |
| Weight & dimensions | |
| Width | 9.17" (233 mm) |
| Depth | 9.06" (230 mm) |
| Height | 7.3" (185.5 mm) |
| Weight | 9.7 lbs (4.4 kg) |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Trusted Execution Technology | No |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2012 Core, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
