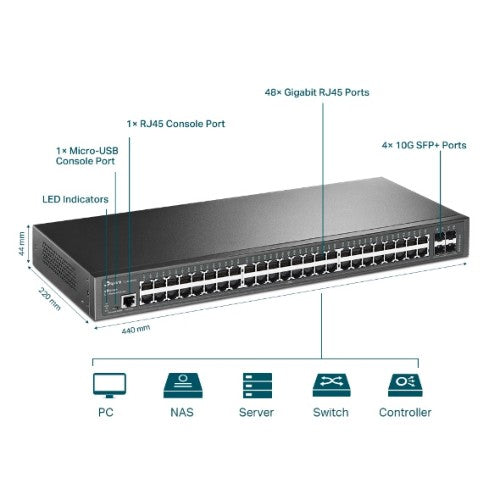

48x 10/100/1000 Mbps RJ45, 4x 10G SFP+, RJ45 Console Port, Micro-USB Console Port, 176 Gbps, 130.9 Mpps, 16 K Mac, 9 KB Jumbo Frame, 440 × 220 × 44 mm
- 10G Lightning-Fast Uplink Connection
4× 10Gbps SFP+ Slots for High-Bandwidth Connectivity
- Gigabit Connections
48× Gigabit Ethernet Ports Offer Reliable Connections
- Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
- Advanced L2+ Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More
Enterprise Switch
with 10G Uplink
4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features**
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to the appropriate subscribers, cutting unnecessary traffic. IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features**
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to www.tp-link.com/en/omada-cloud-based-controller/product-list/ to find all the models supported by Omada Cloud-Based Controller.
**L3 and ISP features can only be configured in standalone mode.
TP-Link
TP-Link JetStream TL-SG3452X network switch Managed L2+ Gigabit Ethernet (10/100/1000) 1U Black
Part number:
TL-SG3452X
$521.15
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
- Gigabit Speeds: 48× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management
Description
10G Uplink Managed Switch for a Complete Omada Network- 10G Lightning-Fast Uplink Connection
4× 10Gbps SFP+ Slots for High-Bandwidth Connectivity
- Gigabit Connections
48× Gigabit Ethernet Ports Offer Reliable Connections
- Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
- Advanced L2+ Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More
Enterprise Switch
with 10G Uplink
4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features**
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to the appropriate subscribers, cutting unnecessary traffic. IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features**
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to www.tp-link.com/en/omada-cloud-based-controller/product-list/ to find all the models supported by Omada Cloud-Based Controller.
**L3 and ISP features can only be configured in standalone mode.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, |
| Switch layer | L2+ |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN |
| IPv6 routes | 48 |
| IPv4 routes | 48 |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IGMP proxy | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Number of static routes | 48 |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 130.9 Mpps |
| Number of VLANs | 4000 |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication |
| Static port security | Yes |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Password protection | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| IGMP proxy | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 0 fan(s) |
| Certification | CE, FCC, RoHS |
| Power | |
| Power consumption (max) | 32.72 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 111.65 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 8.66" (220 mm) |
| Height | 1.73" (44 mm) |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging data | |
| Package width | 20.8" (528 mm) |
| Package depth | 13.2" (336 mm) |
| Package height | 3.94" (100 mm) |
| Package weight | 8.82 lbs (4 kg) |
| Rack rails | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Performance | |
| Packet buffer memory | 12 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 12 MB |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Indication | |
| LED indicators | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
