7.68 TB, 2.5", NVMe, V-NAND TLC, PCIe 4.0 x4, TRIM, S.M.A.R.T., AES 256-bit
Enhanced for speed and reliability
The PM9A3 is the solution to achieving high responsiveness in data centers requiring accelerated performance. Available in capacities of 960GB, 1.92TB, 3.84TB and 7.68TB, the PM9A3 enables your business to excel in handling big data.
Seamless, high-powered performance
Get fast results with the next-gen NVMe interface. Sequential read/write speeds of up to 6,900/4,100 MB/s, random read/write speeds of up to 1100K/200K IOPS and a suberb level of QoS (quality of service) allow for real-time big data analytics.
Secure critical data
Data integrity is critical to data center SSD. The PM9A3 NVMe U.2 is safeguarded with end-to-end data protection to ensure consistency over the entire data transfer path and prevents data corruption in case of power failure with power loss protection.
Enhanced operations efficiency
Accomplish far more with less. Achieve higher efficiency and performance compared to legacy storage systems, with fewer servers, reduced power and cooling, and lower TCO, all with efficient management from the advanced Samsung SSD Toolkit software.
Samsung reliability and quality
Experience the superior SSD quality and reliability of in-house production using Samsung built components. Empower your 24/7 business to run faster, more efficiently, and at reduced costs with world-class dependability with a limited 5-year warranty or 1.0 DWPD.
Samsung

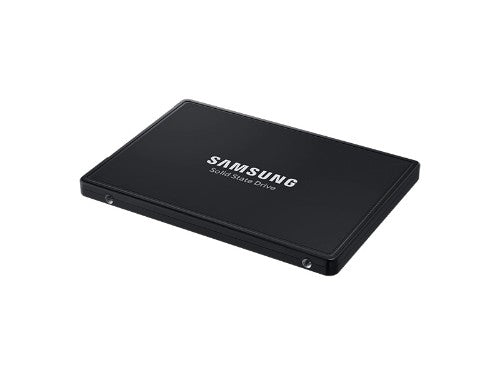

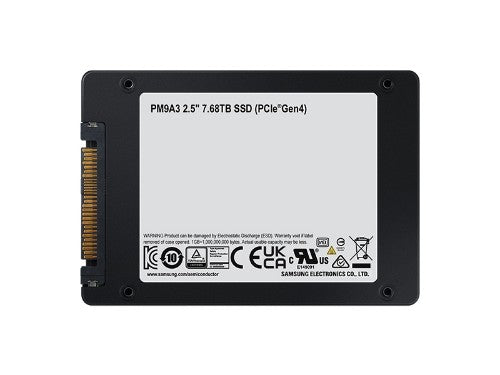

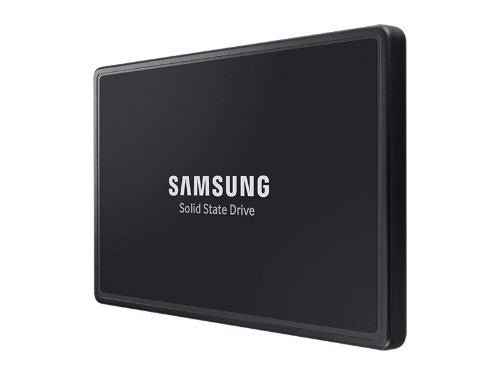

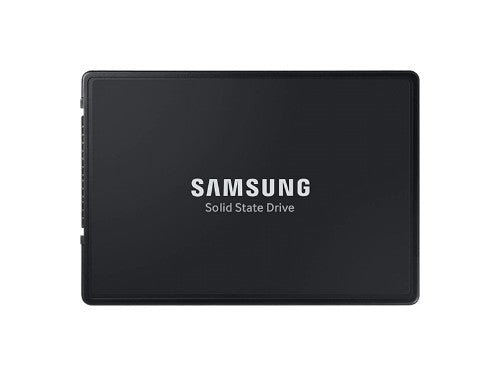

Samsung PM9A3 7.68 TB 2.5" PCI Express 4.0 NVMe V-NAND TLC
Part number:
MZ-QL27T600
$1,215.32
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
High performance, highly reliable and secure NVMe U.2 SSD designed for servers that need enhanced data reliability to safeguard critical data.Enhanced for speed and reliability
The PM9A3 is the solution to achieving high responsiveness in data centers requiring accelerated performance. Available in capacities of 960GB, 1.92TB, 3.84TB and 7.68TB, the PM9A3 enables your business to excel in handling big data.
Seamless, high-powered performance
Get fast results with the next-gen NVMe interface. Sequential read/write speeds of up to 6,900/4,100 MB/s, random read/write speeds of up to 1100K/200K IOPS and a suberb level of QoS (quality of service) allow for real-time big data analytics.
Secure critical data
Data integrity is critical to data center SSD. The PM9A3 NVMe U.2 is safeguarded with end-to-end data protection to ensure consistency over the entire data transfer path and prevents data corruption in case of power failure with power loss protection.
Enhanced operations efficiency
Accomplish far more with less. Achieve higher efficiency and performance compared to legacy storage systems, with fewer servers, reduced power and cooling, and lower TCO, all with efficient management from the advanced Samsung SSD Toolkit software.
Samsung reliability and quality
Experience the superior SSD quality and reliability of in-house production using Samsung built components. Empower your 24/7 business to run faster, more efficiently, and at reduced costs with world-class dependability with a limited 5-year warranty or 1.0 DWPD.
Specifications
| Hard drive | |
|---|---|
| PCI Express interface data lanes | x4 |
| SSD capacity | 7.68 TB |
| Memory type | V-NAND TLC |
| Data transmission | |
| Read speed | 6700 MB/s |
| Write speed | 4000 MB/s |
| Random write (4KB) | 200000 IOPS |
| Random read (4KB) | 1100000 IOPS |
| Security | |
| Security algorithms | 256-bit AES |
| Endurance | |
| Mean time between failures (MTBF) | 2000000 h |
| Features | |
| Interface | PCI Express 4.0 |
| Component for | PC |
| NVMe | Yes |
| NVMe version | 1.4 |
| Sequential write speed (AS SSD) | 4000 MB/s |
| Sequential read speed (AS SSD) | 6700 MB/s |
| End-to-End Data Protection | Yes |
| PCI Express interface data lanes | x4 |
| SSD capacity | 7.68 TB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 6700 MB/s |
| TRIM support | Yes |
| Write speed | 4000 MB/s |
| Memory type | V-NAND TLC |
| Random write (4KB) | 200000 IOPS |
| Random read (4KB) | 1100000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Hardware encryption | Yes |
| SSD form factor | 2.5" |
| Power | |
| Power consumption (max) | 3.5 W |
| Power consumption (write) | 13.5 W |
| Power consumption (read) | 11 W |
| Operating voltage | 12 V |
| Performance | |
| Interface | PCI Express 4.0 |
| Component for | PC |
| NVMe | Yes |
| NVMe version | 1.4 |
| Sequential write speed (AS SSD) | 4000 MB/s |
| Sequential read speed (AS SSD) | 6700 MB/s |
| End-to-End Data Protection | Yes |
| PCI Express interface data lanes | x4 |
| SSD capacity | 7.68 TB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 6700 MB/s |
| TRIM support | Yes |
| Write speed | 4000 MB/s |
| Memory type | V-NAND TLC |
| Random write (4KB) | 200000 IOPS |
| Random read (4KB) | 1100000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Hardware encryption | Yes |
| Design | |
| Component for | PC |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 4.34" (110.2 mm) |
| Weight | 3.17 oz (90 g) |
| Height | 0.15" (3.8 mm) |
| Depth | 0.866" (22 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating shock | 1500 G |
| Technical details | |
| Interface | PCI Express 4.0 |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| TRIM support | Yes |
| Operating shock | 1500 G |
| Hardware encryption | Yes |
| SSD form factor | 2.5" |
