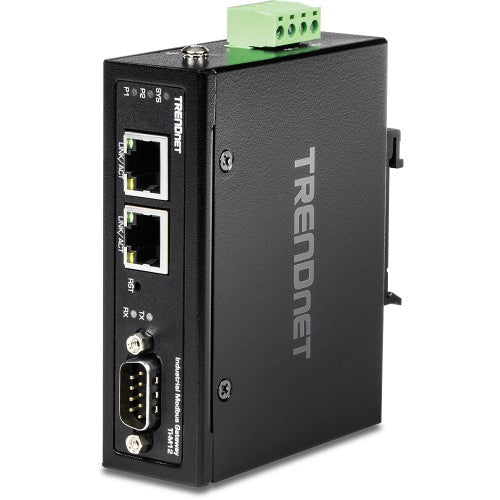

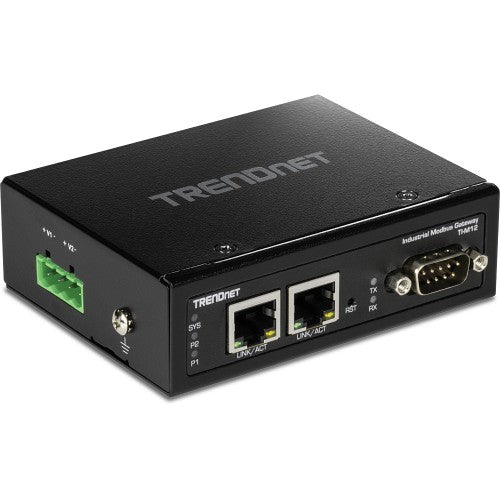

Industrial Modbus Gateway, 1 x serial port, 2 x Fast Ethernet ports
Trendnet
Trendnet TI-M12 gateway/controller 10, 100 Mbit/s
Part number:
TI-M12
Sale price
$213.83
Regular price
$219.99
Save
$6.16
3%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features

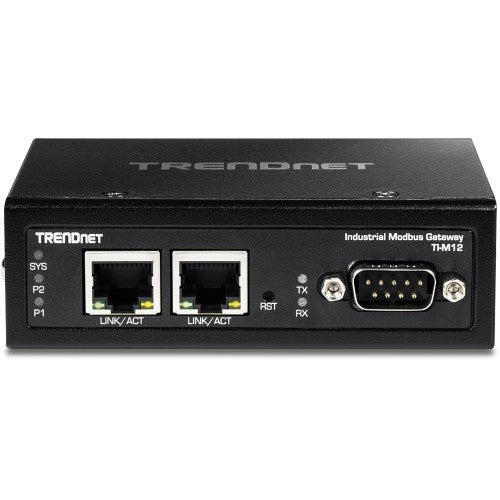

- 1 x serial port, 2 x Fast Ethernet ports
- Connect a RS-232/RS-422/RS-485 serial device, such as a modem, to a network
- Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps
- Wide operation temperature range -40° - 75° C (-40° – 167° F)
- IP30 rated metal housing
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network.Specifications
| Design | |
|---|---|
| LED indicators | Yes |
| Certification | FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 |

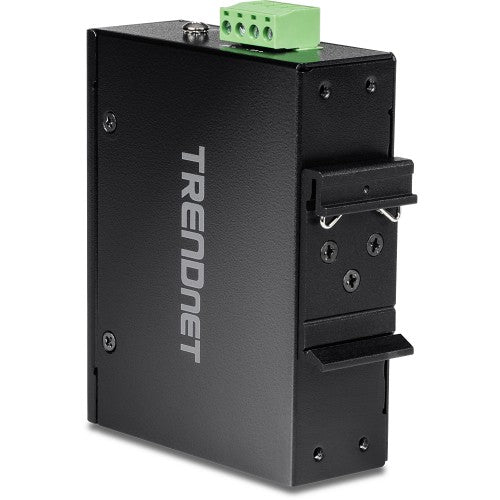

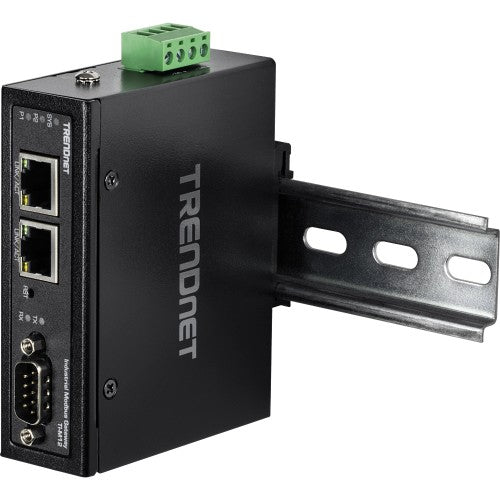

| Mounting type | DIN-rail |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| Enclosure material | Metal |
| Features | |
| Mean time between failures (MTBF) | 521243 h |
| Protocols | |
| DHCP server | Yes |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial interface type | RS-232 |
| Power | |

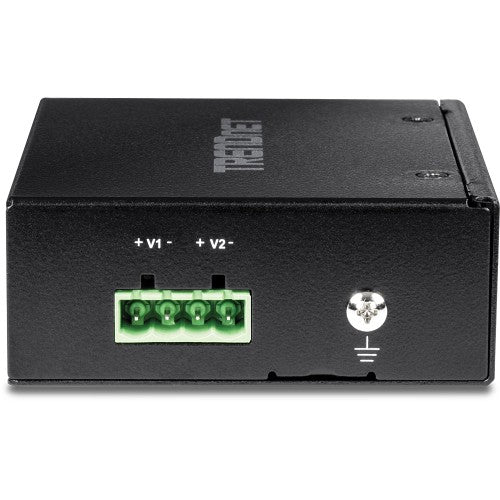

| Input voltage | 12 - 56 V |
| Power consumption (max) | 3.84 W |
| Weight & dimensions | |
| Weight | 5.43 oz (154 g) |
| Width | 1.22" (31 mm) |
| Height | 4.06" (103 mm) |
| Depth | 3.15" (80 mm) |
| Packaging content | |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Wi-Fi | No |
| Full duplex | Yes |
| Sustainability compliance | Yes |
| Mean time between failures (MTBF) | 521243 h |
| Compliance certificates | CE |
| Indication | |
| LED indicators | Yes |
| Certificates | |
| Certification | FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 |
| Compliance certificates | CE |
| Performance | |
| Certification | FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 |
| Mounting type | DIN-rail |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| Enclosure material | Metal |
