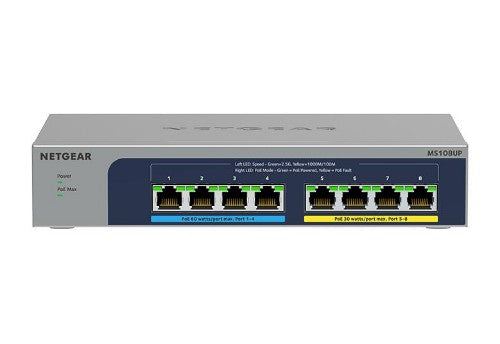

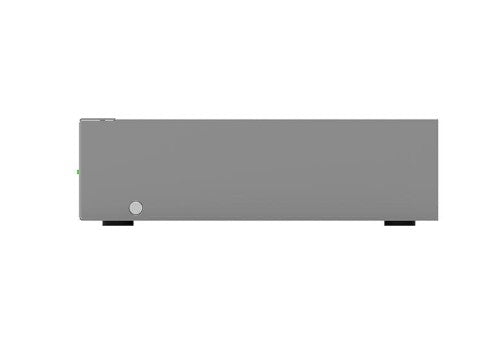

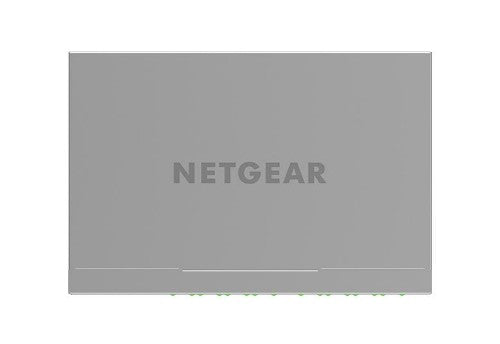

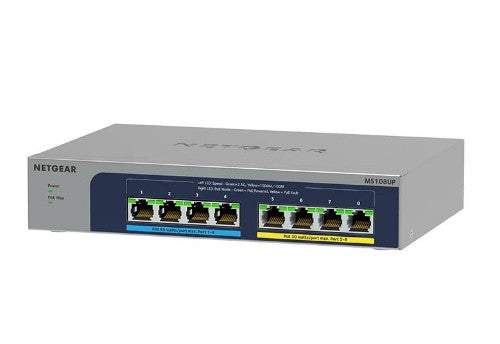

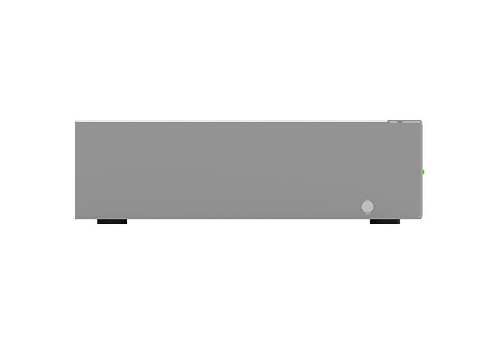

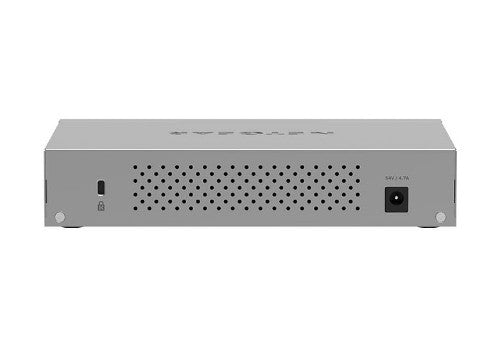

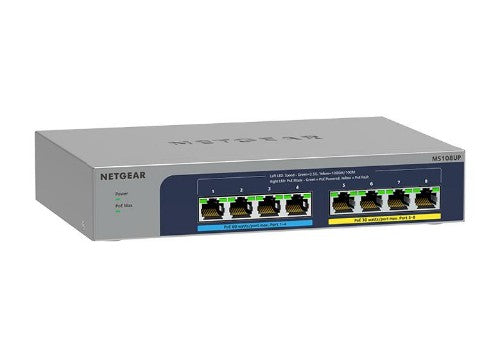

NETGEAR MS108UP, Unmanaged, 2.5G Ethernet (100/1000/2500), Full duplex, Power over Ethernet (PoE), Wall mountable
Netgear
NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
Part number:
MS108UP-100NAS
Sale price
$283.64
Regular price
$340.44
Save
$56.80
17%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Multi-Gigabit Ethernet
- Non-Blocking Switching
- PoE Support
- Fanless Design
- PoE Auto-Balance
- Versatile Mounting Options
Description
NETGEAR MS108UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt,.... DC input voltage: 54 V. Power over Ethernet (PoE). Wall mountableSpecifications
| Virtual LAN features | |
|---|---|
| VLAN support | Yes |
| Number of VLANs | 64 |
| Data transmission | |
| Number of VLANs | 64 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Jumbo frames | 12000 |
| Latency (1 Gbps) | 3.593 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 40 Gbit/s |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Mean time between failures (MTBF) | 373643.7 h |
| Fanless | Yes |
| Technical details | |
| Mean time between failures (MTBF) | 373643.7 h |
| Housing material | Metal |
| Rack mounting | No |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Number of VLANs | 64 |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Half duplex | Yes |
| Certificates | |
| Electromagnetic compatibility | CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM |
| Certification | CB, CSA, CCC, BSMI, RCM |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Design | |
| Wall mountable | Yes |
| Housing material | Metal |
| Electromagnetic compatibility | CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM |
| Certification | CB, CSA, CCC, BSMI, RCM |
| Rack mounting | No |
| Power | |
| Power supply included | Yes |
| Input current | 4.7 A |
| DC input voltage | 54 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 230 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Heat dissipation | 923.49 BTU/h |
| Weight & dimensions | |
| Width | 8.27" (210 mm) |
| Depth | 5.51" (140 mm) |
| Height | 1.57" (40 mm) |
| Weight | 31.7 oz (900 g) |
| Other features | |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
