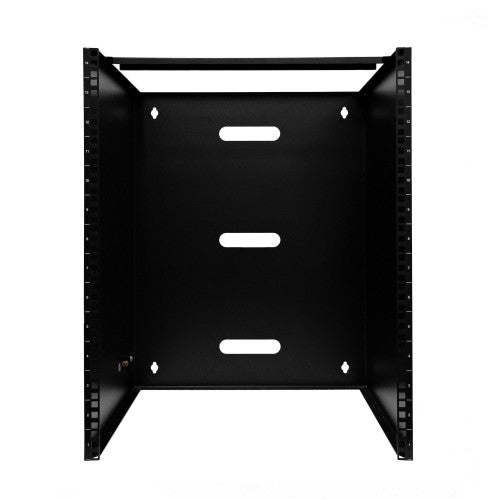

StarTech.com 14U Wall Mount Network Rack - 14 in Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server, IT Equipment, Network Switches - 77lbs/35kg Weight Capacity, Black (RACK-14U-14-BRACKET)
The 14U 14in (35.5cm) deep wall mounting bracket for patch panels delivers a sturdy and dependable equipment storage option, allowing you to wall mount data/IT equipment for a more efficient and accessible operating environment. It's the perfect solution for areas where space is at a premium like SoHo (small office, home office) environment, or space limited server room because it doesn't take any floor space.
Sturdy Construction & Easy Installation
The mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in equipment to a wall, and to organize cabling or equipment in your network closet, wiring closet, back office, or IDF. The sturdy steel construction is especially helpful for durability and stability. Also, because The open frame wall rack's mounting holes are positioned 16in. apart, allowing you a simple and secure wall-stud anchoring to your existing construction framework.
Includes Hardware
M6 square cage nuts and M6 screws are included with the wall-mount bracket, additionally, M5x25 mounting screws are included to save you the hassle of sourcing separate mounting hardware.
The StarTech.com Advantage
StarTech.com
StarTech.com RACK-14U-14-BRACKET rack cabinet Wall mounted rack Black
Part number:
RACK-14U-14-BRACKET
Sale price
$183.61
Regular price
$191.99
Save
$8.38
4%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 14U WALL MOUNT RACK: This 19-inch wide low profile wall mounted rack has a maximum mounting depth of 14 in (35 cm), recommended for networking equipment up to 12 in deep, leaving 2 in for cable routing; Maximum weight capacity of 77 lbs (35 kg)
- EASY TO INSTALL: The 2U wall-mounting patch panel bracket ships fully assembled and comes complete with M6 screws and M6 square cage nuts for easier equipment installation & includes wall mounting hardware; Predrilled wall mounting holes spaced 16"" apart
- COLD-ROLLED STEEL CONSTRUCTION: The wall mounting rack features a 1/16 in (1.5 mm) thick solid steel design for ultimate durability and to ensure a safe and sturdy mounting solution
- EASY CABLE MANAGEMENT: Built with efficiency in mind, the small wall mount patch panel bracket has rear cable opening slot for in-wall cable routing in your network closet, server room, wiring closet, classroom
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 14U wall mount rack backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support
Description
Mount your network equipment such as patch panels or switches to the wallThe 14U 14in (35.5cm) deep wall mounting bracket for patch panels delivers a sturdy and dependable equipment storage option, allowing you to wall mount data/IT equipment for a more efficient and accessible operating environment. It's the perfect solution for areas where space is at a premium like SoHo (small office, home office) environment, or space limited server room because it doesn't take any floor space.
Sturdy Construction & Easy Installation
The mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in equipment to a wall, and to organize cabling or equipment in your network closet, wiring closet, back office, or IDF. The sturdy steel construction is especially helpful for durability and stability. Also, because The open frame wall rack's mounting holes are positioned 16in. apart, allowing you a simple and secure wall-stud anchoring to your existing construction framework.
Includes Hardware
M6 square cage nuts and M6 screws are included with the wall-mount bracket, additionally, M5x25 mounting screws are included to save you the hassle of sourcing separate mounting hardware.
The StarTech.com Advantage
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 22.4" (570 mm) |
| Package width | 16.9" (430 mm) |
| Package height | 27.6" (700 mm) |
| Package weight | 28.7 lbs (13 kg) |
| Mounting depth (max) | 11.8" (30 cm) |
| Width | 19.6" (498 mm) |
| Depth | 14" (356 mm) |
| Height | 24.8" (629 mm) |
| Weight | 11 lbs (5 kg) |
| Maximum weight capacity | 77.2 lbs (35 kg) |
| Packaging content | |
| Quick installation guide | Yes |
| Nuts included | Yes |
| Number of nuts | 56 |
| Screws included | Yes |
| Number of screws | 60 |
| Number of washers included | 56 |
| Features | |
| Product design | 2-post |
| Rack capacity | 14U |
| Type | Wall mounted rack |
| Maximum weight capacity | 77.2 lbs (35 kg) |
| Material | Steel |
| Product colour | Black |
| Packaging data | |
| Quick installation guide | Yes |
| Nuts included | Yes |
| Number of nuts | 56 |
| Package depth | 22.4" (570 mm) |
| Package width | 16.9" (430 mm) |
| Package height | 27.6" (700 mm) |
| Package weight | 28.7 lbs (13 kg) |
| Screws included | Yes |
| Number of screws | 60 |
| Number of washers included | 56 |
| Technical details | |
| Package width | 16.9" (430 mm) |
| Package height | 27.6" (700 mm) |
| Type | Wall mounted rack |
| Rack capacity | 14U |
| Colour | |
| Product colour | Black |
| Material | |
| Material | Steel |
| Logistics data | |
| Master (outer) case width | 20.9" (530 mm) |
| Master (outer) case length | 15" (380 mm) |
| Master (outer) case height | 26" (661 mm) |
| Products per master (outer) case | 1 pc(s) |
