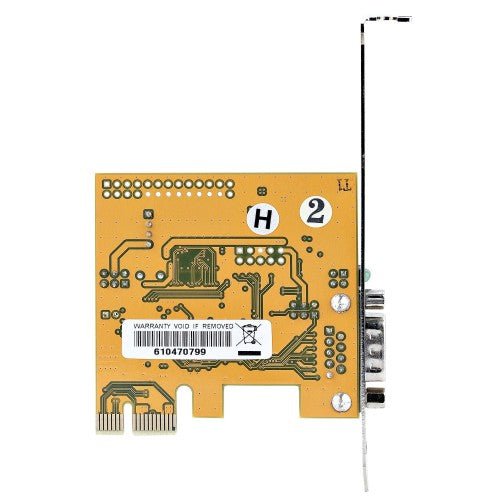

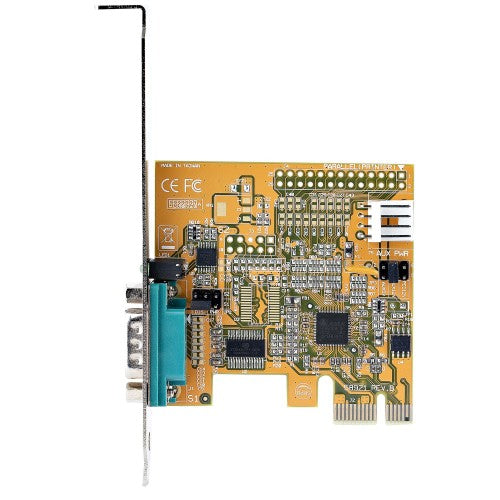

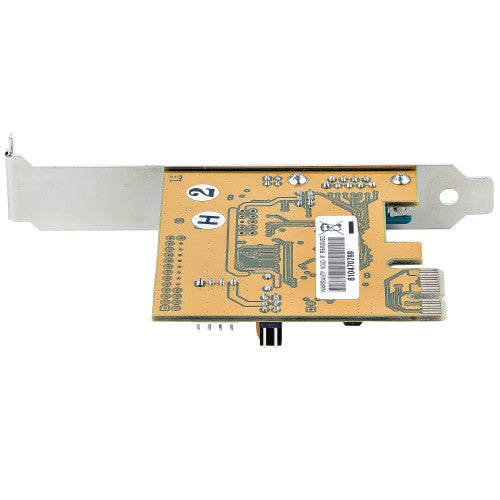

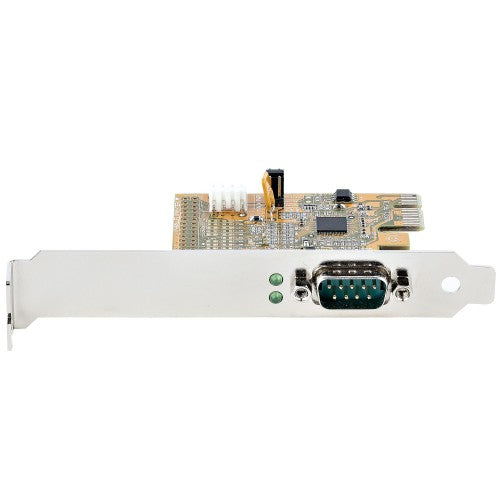

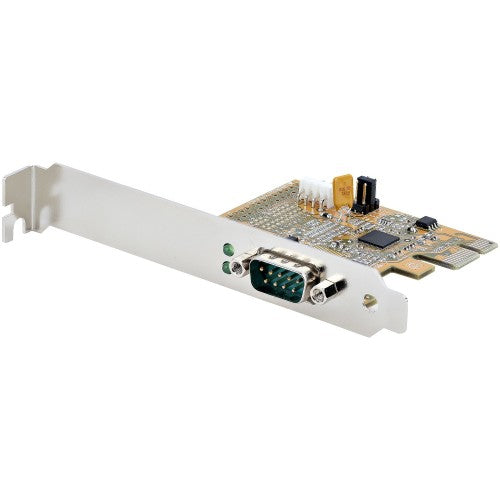

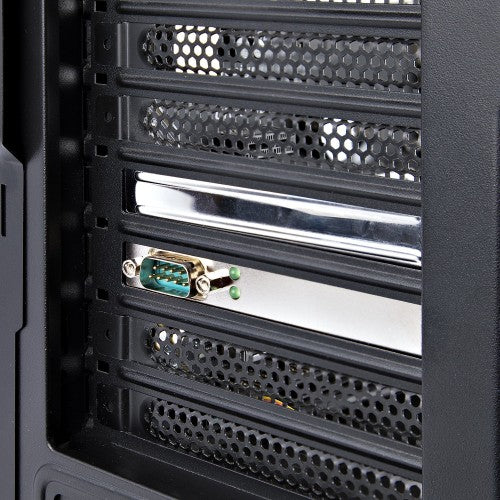

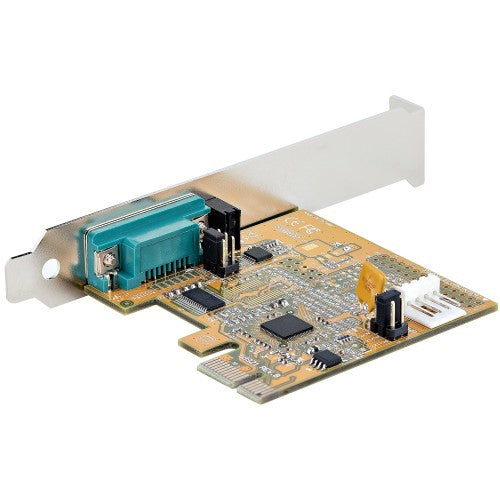

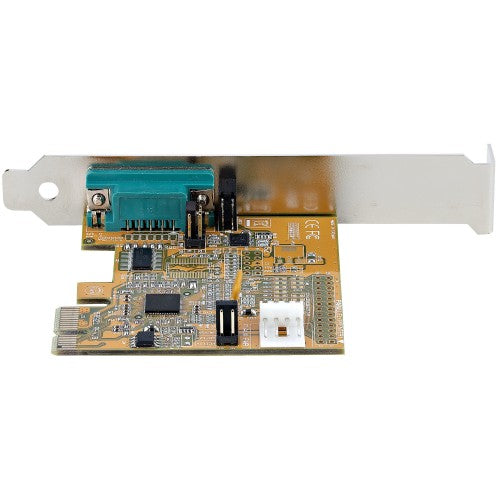

StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card, 16C1050 UART, Standard and Low Profile Brackets, COM Retention, Windows/Linux (11050-PC-SERIAL-CARD)
Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.
Legacy Connectivity
Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.
Connect with Ease
The 1-Port RS-232 card features 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps, low-profile bracket is included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.
11050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
StarTech.com
StarTech.com 11050-PC-SERIAL-CARD interface cards/adapter Internal
Part number:
11050-PC-SERIAL-CARD
Sale price
$46.97
Regular price
$61.99
Save
$15.02
24%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- PCIE TO SERIAL: Connect a serial RS232 (DB9) devices to a computer with this PC serial card. Features support for high performance 16C1050 UART. Monitor activity with the built-in LED status lights on the PCI express DB9 card
- DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc. The UART PCIe card supplies 5V or 12V power over pin 9. Low-profile bracket is included
- APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories. Continue using legacy hardware with this RS232 PCIe card. DB9 port accepts screw locking serial cables
- PC SERIAL CARD SPECS: 16C1050 UART / Max Baud 921.6 Kbps / 256 Byte FIFO / COM Retention / Supports Windows and Linux / Asix AX99100 Chipset / Odd/Even/Mark/Space/None Parity Modes / 5/6/7/8/9 Data Bits / PCIe 2.0 x1 / Low-profile Bracket Included
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
Description
Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.
Legacy Connectivity
Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.
Connect with Ease
The 1-Port RS-232 card features 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps, low-profile bracket is included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.
11050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Host interface | PCIe |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 2.0 |
| Technical details | |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| FIFO (First In, First Out) | 256 B |
| Material | Steel |
| Compliance certificates | CE, RoHS |
| Performance | |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.6 Kbit/s |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Product colour | Yellow |
| Harmonized System (HS) code | 84733020 |
| Colour | |
| Product colour | Yellow |
| Design | |
| Internal | Yes |
| Product colour | Yellow |
| LED indicators | Activity |
| Features | |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.6 Kbit/s |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Parity bit | Even, Mark, No, Odd, Space |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2016, Windows Server 2019 |
| Weight & dimensions | |
| Width | 2.56" (65 mm) |
| Depth | 2.64" (67 mm) |
| Height | 0.709" (18 mm) |
| Weight | 1.48 oz (42 g) |
| Package width | 8.15" (207 mm) |
| Package depth | 5.67" (144 mm) |
| Package height | 1.5" (38 mm) |
| Package weight | 7.05 oz (200 g) |
| Packaging data | |
| Mounting brackets included | Yes |
| Package width | 8.15" (207 mm) |
| Package depth | 5.67" (144 mm) |
| Package height | 1.5" (38 mm) |
| Package weight | 7.05 oz (200 g) |
| Quick installation guide | Yes |
| Logistics data | |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 20.9" (530 mm) |
| Master (outer) case length | 17.3" (440 mm) |
| Master (outer) case height | 13.4" (340 mm) |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Material | Steel |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| Flow control support | Yes |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
