2.4GHz, 300Mbps, 8dbi, 2.6W, IP64, IEEE 802.11b/g/n
500m+ Wireless Data Transmission
O1 integrates with a 8dBi directional antenna to provide an optimized transmission quality. It picks up and maintains a stable signal for a wireless network connection ranging up to 500 meters．
Auto-bridge For Two Device
O1 adopts of auto-bridge technology,two cpe can connect to each other when you power on them face to face. It is very easy to setup.
Professional Outdoor Design
Equipped with IP64 waterproof enclouse and high quality hardware design, O1 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment .
Multiple Application Scenarios
Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long distance wrieless connecton for video surveillance and data transmission.
WISP(Client+Router) Mode
Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.
Smart Signal Indicator LED
Three signal LED Lights represent the currently signal strength that O1 receives from peer device.It is helpful to find the right location to deploy the device and achieve a better performance.
Easy to Manage
O1 also comes with a centralized management software that helps users easily manage all the devices in their network from a single computer--CPE Assistant.
Tenda

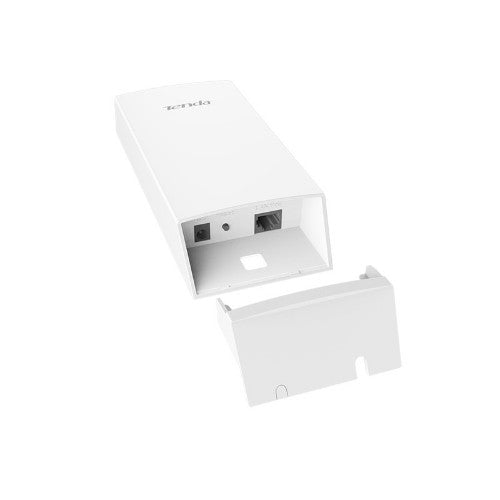

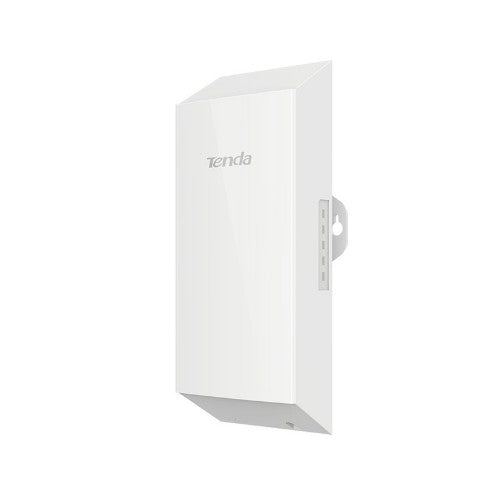

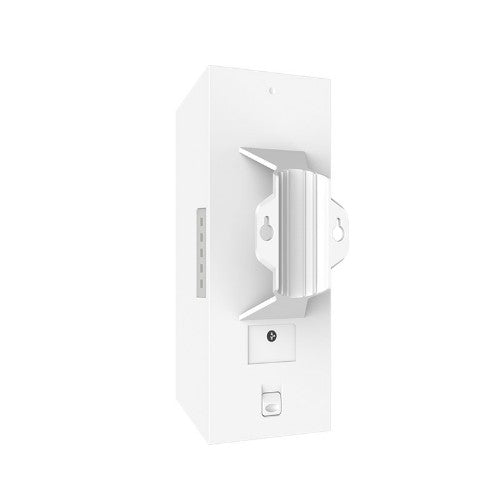

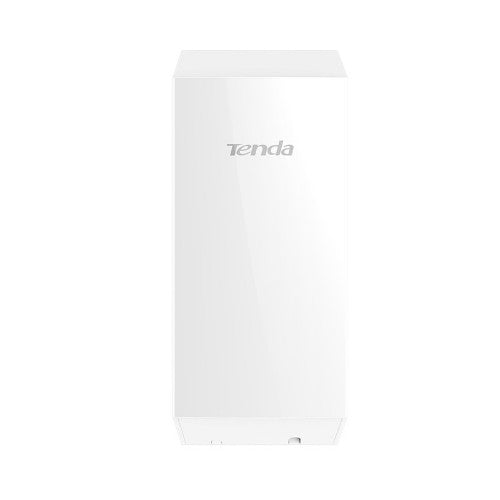

Tenda O1 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
Part number:
O1
Sale price
$29.96
Regular price
$29.99
Save
$0.03
0%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 2.4GHz 11n 300Mbps
- 8dbi directional antenna
- IP64 waterproof enclosure
- AP,Station,WISP operating mode supported
- Up to 30 meters of flexible deployment with included PoE Injector
Description
O1 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 8dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.500m+ Wireless Data Transmission
O1 integrates with a 8dBi directional antenna to provide an optimized transmission quality. It picks up and maintains a stable signal for a wireless network connection ranging up to 500 meters．
Auto-bridge For Two Device
O1 adopts of auto-bridge technology,two cpe can connect to each other when you power on them face to face. It is very easy to setup.
Professional Outdoor Design
Equipped with IP64 waterproof enclouse and high quality hardware design, O1 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment .
Multiple Application Scenarios
Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long distance wrieless connecton for video surveillance and data transmission.
WISP(Client+Router) Mode
Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.
Smart Signal Indicator LED
Three signal LED Lights represent the currently signal strength that O1 receives from peer device.It is helpful to find the right location to deploy the device and achieve a better performance.
Easy to Manage
O1 also comes with a centralized management software that helps users easily manage all the devices in their network from a single computer--CPE Assistant.
Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Reset button | Yes |
| Bandwidth | 2.4 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Certification | FCC/CE/RoHS |
| Maximum data transfer rate | 300 Mbit/s |
| Network | |
| Internal | No |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bandwidth | |
| Bandwidth | 2.4 GHz |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Bandwidth | 2.4 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 300 Mbit/s |
| Security | |
| Security algorithms | WEP, WPA-PSK, WPA2-PSK |
| Protocols | |
| DHCP server | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 2.6 W |
| Output voltage | 9 - 12 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
| International Protection (IP) code | IP64 |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| Internal | No |
| LED indicators | LAN, PoE, WLAN |
| Certification | FCC/CE/RoHS |
| Antenna | |
| Antenna features | Integrated antenna |
| Technical details | |
| Reset button | Yes |
| Certificates | |
| Certification | FCC/CE/RoHS |
| Indication | |
| LED indicators | LAN, PoE, WLAN |
| Weight & dimensions | |
| Width | 3.15" (80 mm) |
| Depth | 2.66" (67.5 mm) |
| Height | 7.49" (190.3 mm) |
| Packaging data | |
| Quick start guide | Yes |
| PoE adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Packaging content | |
| Quick start guide | Yes |
| PoE adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
