5x 10/100Mbps auto-negotiation RJ45, auto MDI/MDIX, 1K MAC, 10BASE-T/100BASE-TX
A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability, heat dissipation performance, ensuring stable switch operation, a long service life, and more reliable outdoor security surveillance.
Stay connected for 7x24
5 * 10/100Mbps auto-negotiation RJ45 ports that support line-speed forwarding and large-capacity cache, ensuring smooth surveillance video playback and stable data transmission for 7x24.
User-friendly design
RJ45 ports and LED indicators are located on the same side and aligned vertically for more intuitively showing network status. The RJ45 ports and the power port are designed in the same orientation to reduce the mounting space requirement, allowing the switch to fit into the slimmest outdoor weak current box.
Tenda

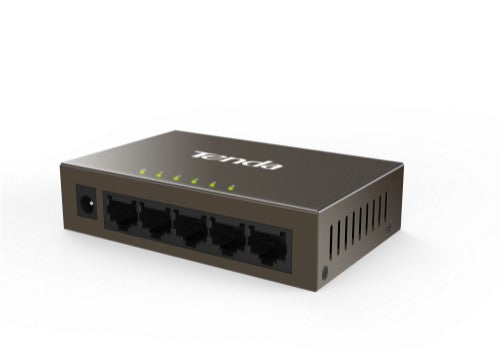

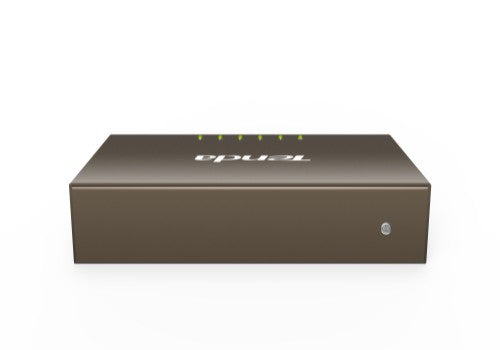

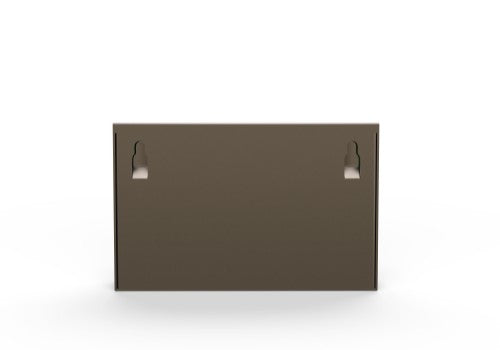

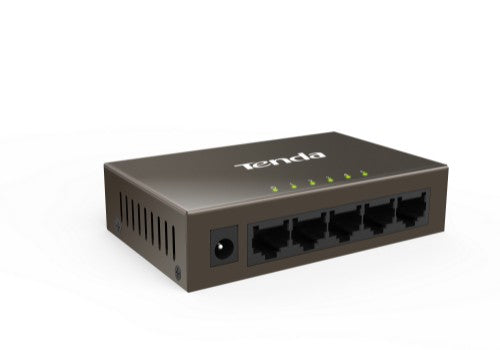

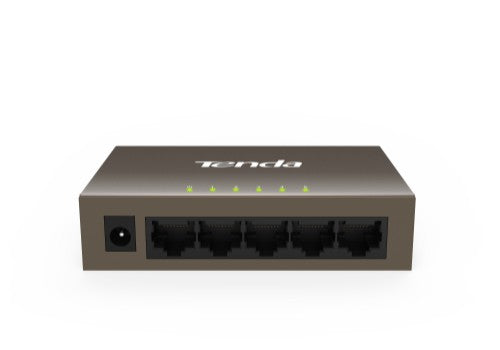

Tenda TEF1005D network switch Unmanaged Fast Ethernet (10/100) Gray
Part number:
TEF1005D
$16.82
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Extraordinary heat dissipationA housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability, heat dissipation performance, ensuring stable switch operation, a long service life, and more reliable outdoor security surveillance.
Stay connected for 7x24
5 * 10/100Mbps auto-negotiation RJ45 ports that support line-speed forwarding and large-capacity cache, ensuring smooth surveillance video playback and stable data transmission for 7x24.
User-friendly design
RJ45 ports and LED indicators are located on the same side and aligned vertically for more intuitively showing network status. The RJ45 ports and the power port are designed in the same orientation to reduce the mounting space requirement, allowing the switch to fit into the slimmest outdoor weak current box.
Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Performance | |
| Stackable | Yes |
| Plug and Play | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power connector | DC-in jack |
| Output voltage | 5 V |
| Output current | 0.6 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 1.6 W |
| Technical details | |
| Product colour | Gray |
| Stackable | Yes |
| Rack mounting | No |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Cable types supported | Cat5, Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Packet forwarding rate (100 Mbps) | 148810 pps |
| Packet forwarding rate (10 Mbps) | 14881 pps |
| MAC address table | 1000 entries |
| Switching capacity | 1 Gbit/s |
| Security | |
| Access Control List (ACL) | Yes |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Design | |
| Product colour | Gray |
| Stackable | Yes |
| LED indicators | Link, Power |
| Certification | CE, FCC, RoHS |
| Rack mounting | No |
| Indication | |
| LED indicators | Link, Power |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 3.94" (100 mm) |
| Depth | 2.52" (64 mm) |
| Height | 0.984" (25 mm) |
| Packaging data | |
| Package width | 4.02" (102 mm) |
| Package depth | 3.19" (81 mm) |
| Package height | 3.19" (81 mm) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
