16-Port Gigabit Ethernet Switch, IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, full-duplex & flow control, NMA auto-negotiation, UPnP, 8K MAC Address Table, 10/100/1000Mbps, 32Gbps Backplane Bandwidth, 16x RJ45

Description

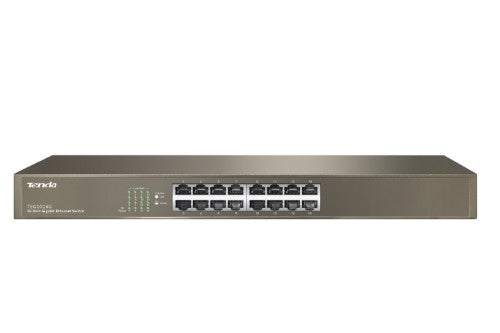

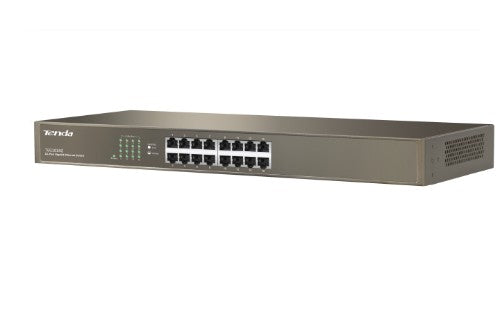

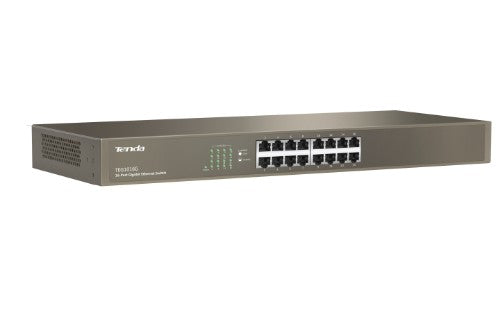

The TEG1016G and TEG1024G are 16 and 24 port 1U rack-mountable Gigabit switches respectively. They support auto MDI/MDIX and store-and-forward switching. The TEG1016G has a 32Gbps backplane bandwidth while the TEG1024G has a 48Gbps backplane bandwidth. These switches are ready for deployment in server rooms or offices with a need to keep serious network traffic flowing.

- Complies with IEEE 802.3x full-duplex and flow control.
- NMA auto-negotiationSupports UPnP.
- Provides 16 (TEG1016G)/24 (TEG1024G) auto-negotiation 10/100/1000Mbps LAN ports.
- Supports auto MDI/MDIX.
- Non-blocking.
- Store-and-forward switchingIntegrated 8000 MAC address table.
- Internal power supply.
- Standard 19” rack-mountable metal case.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
USB 2.0 ports quantity	0
SFP/SFP+ slots quantity	0
PCI-X slots	0
Fiber ports quantity	0
CX4 ports quantity	0
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Network
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
MAC address table	8000 entries
Supported data transfer rates	10/100/1000 Mbps
Maximum data transfer rate	1 Gbit/s
Security
MAC address filtering	Yes
Design
Form factor	1U
Product colour	Blue
LED indicators	Link, Power
Rack mounting	Yes
Certification	CE, RoHS
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output power	20 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Dimensions (WxDxH)	8.19 x 17.3 x 1.73" (208 x 440 x 44 mm)
Connectivity technology	Wired
Bandwidth	32 Gbit/s
Wi-Fi	No
Size (imperial)	19"
Power LED	Yes
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	8.19" (208 mm)
Depth	17.3" (440 mm)
Height	1.73" (44 mm)
Packaging content
User guide	Yes
Technical details
Form factor	1U
Product colour	Blue
Rack mounting	Yes
Performance
Harmonized System (HS) code	85176990
Certificates
Certification	CE, RoHS
Indication
Power LED	Yes
LED indicators	Link, Power
Packaging data
User guide	Yes
Logistics data
Harmonized System (HS) code	85176990
