4x DDR4 ECC/UDIMM 2667MT/s, 1 x OCulinks, PCIe3.0x4 or 4x SATAIII 6Gb/s, 1 x PCIe x 16
Asrock

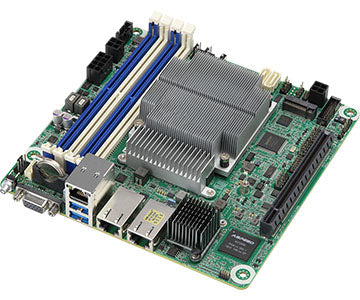

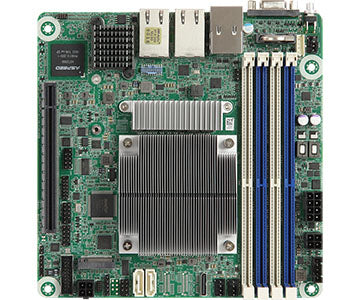

Asrock EPYC3251D4I-2T motherboard mini ATX
Part number:
EPYC3251D4I-2T
$895.23
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports AMD EPYC™ 3251 Processor
- Supports 4x DDR4 ECC/UDIMM, RDIMM up to 2667MT/s; 2DPC
- Supports up to 1 x OCulinks (PCIe3.0x4 or 4x SATAIII 6Gb/s)
- 1 x PCIe x 16 slot
- Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
- Supports 12V DC or ATX Power Source
Description
Specifications
| Technical details | |
|---|---|
| Motherboard chipset family | AMD |
| On-board graphics card | Yes |
| Motherboard form factor | mini ATX |
| Component for | PC |
| Performance | |
| Motherboard chipset family | AMD |
| Motherboard form factor | mini ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Processor cores | 8 |
| Compatible processor series | AMD EPYC |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 64 GB |
| Maximum RDIMM memory | 128 GB |
| Storage controllers | |
| Supported storage drive interfaces | PCI Express 3.0, SATA III |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| Internal I/O | |
| Supported storage drive interfaces | PCI Express 3.0, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 1 |
| CPU fan connector | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel® X550 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Features | |
| Motherboard chipset family | AMD |
| Motherboard form factor | mini ATX |
| Component for | PC |
| Expansion slots | |
| PCI Express x16 slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0 |
| System Management BIOS (SMBIOS) version | 2.8 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Video | |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| Weight & dimensions | |
| Height | 20.5" (520 mm) |
| Weight | 31.4 oz (890 g) |
| Width | 0.67" (17 mm) |
| Depth | 0.67" (17 mm) |
| Other features | |
| Height | 20.5" (520 mm) |
| Weight | 31.4 oz (890 g) |
