AMD Premium X570, AM4 PGA 1331, 4x DDR4 SO-DIMM, SATA III, M.2, 10G LAN, VGA, USB 3.1, Mini ITX, 170.2x170.2 mm
Asrock

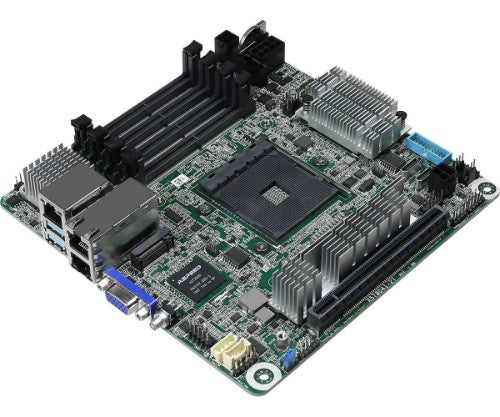

Asrock X570D4I-2T motherboard AMD X570 Socket AM4 mini ITX
Part number:
X570D4I-2T
$464.56
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports AMD Ryzen 3rd Generation Series Processors(Max 105W))
- Supports 4x DDR4 ECC and non-ECC SO DIMM, max. 64 GB
- Supports up 8 x SATA3 by OCulink and 1x M.2 ports
- Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
- Supports 1x PCIe Gen4x16 link (Matisse)
- Supports 2x 10GLAN Intel X550-AT2
Description
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Supported storage drive interfaces | Serial ATA III, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 8 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 3 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Parallel processing technology support | Not supported |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Performance | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | SO-DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2933 MHz |
| Maximum internal memory | 64 GB |
| Storage controllers | |
| Supported storage drive interfaces | Serial ATA III, SATA III |
| Graphics | |
| Parallel processing technology support | Not supported |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 16 MB |

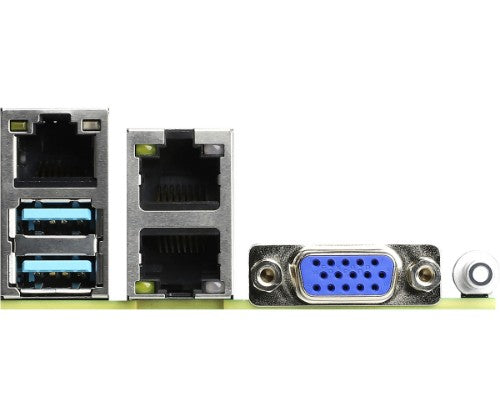

| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel® X550-AT2, Realtek RTL8211E |
| Ethernet interface type | 10 Gigabit Ethernet |
| Features | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0 |
| System Management BIOS (SMBIOS) version | 2.8 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Video | |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Height | 11.2" (285 mm) |
| Weight | 26.8 oz (760 g) |
| Width | 6.7" (170.2 mm) |
| Depth | 6.7" (170.2 mm) |
| Other features | |
| Height | 11.2" (285 mm) |
| Weight | 26.8 oz (760 g) |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
