Chipset AMD X570, AM4 PGA 1331, 4 DIMM, max 32 GB, 10GbE, ASPEED AST2500, HDMI, VGA, micro-ATX, 244 x 244 mm, AMI UEFI BIOS
Asrock

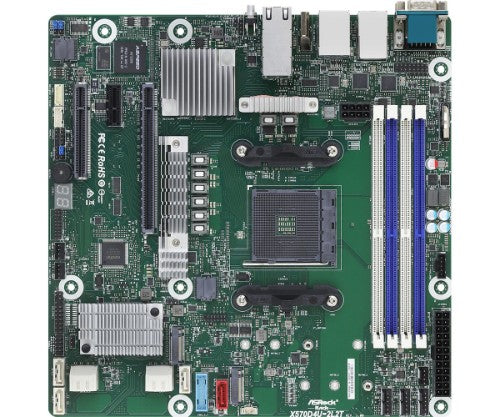

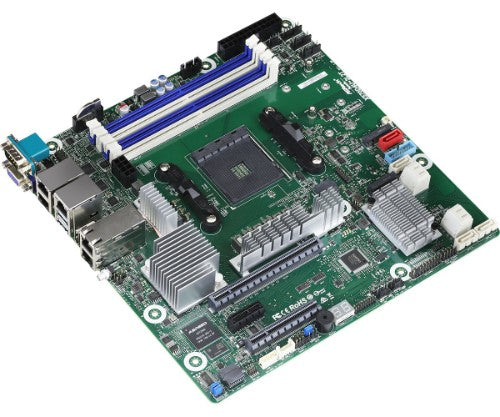

Asrock X570D4U-2L2T motherboard AMD X570 Socket AM4 micro ATX
Part number:
X570D4U-2L2T
$423.87
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- micro-ATX (9.6"x 9.6")
- Supports 3rd Gen AMD Ryzen™ Processors
- 4 DIMMs
- 1 PCIe4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1
- Dual 10 GbE RJ45
- Dual 1 GbE RJ45
- 2 M.2 (PCIe4.0x4/ SATA)
- 8 SATA 6Gb/s
- HDMI
- AST2500 Remote management (IPMI)
Description
Specifications
| Technical details | |
|---|---|
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Supported processor sockets | Socket AM4 |
| Motherboard form factor | micro ATX |
| Performance | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM4 |
| Motherboard form factor | micro ATX |
| Processor | |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2666,3200 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Graphics | |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| Internal I/O | |
| Supported storage drive interfaces | M.2, SATA III |
| TPM connector | Yes |
| Number of SATA III connectors | 12 |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Network | |
| Ethernet LAN | Yes |
| LAN controller | Intel I210, Intel® X550-AT2 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Features | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Supported processor sockets | Socket AM4 |
| Motherboard form factor | micro ATX |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| PCI Express x8 slots | 1 |
| PCI Express x1 slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| ACPI version | 2.0 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Video | |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Height | 12.6" (320 mm) |
| Weight | 2.2 lbs (1 kg) |
| Width | 9.61" (244 mm) |
| Depth | 9.61" (244 mm) |
| Other features | |
| Height | 12.6" (320 mm) |
| Weight | 2.2 lbs (1 kg) |
