EPYCD8-2T, Socket SP3, 8x DDR4 DIMM, PCIe, SATA III, U.2, RJ-45, VGA, USB, M.2, ATX, 305x244 mm
Asrock
Asrock EPYCD8-2T motherboard Socket SP3 ATX
Part number:
EPYCD8-2T
$569.89
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- ATX 12'' x 9.6''
- Single Socket SP3(LGA4094) support AMD EPYC 7002/7001 series processor family
- Supports 8 Channels DDR4 3200/2933/2666/2400 RDIMM, LRDIMM 8 x DIMM slots
- Supports 8x SATA3 6.0 Gb/s (from 2x mini SAS HD), 1x SATA DOM and 2 x M.2
- Supports 2 X 10G LAN by Intel X550
- Supports 4 PCIe3.0x 16, 3 PCIe 3.0x8
- Supports 2 OCulink
Description
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Supported storage drive interfaces | SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 9 |
| Number of chassis fan connectors | 7 |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| PC health monitoring | Fan, Temperature, Voltage |
| Number of processors supported | 1 |
| Number of DIMM slots | 8 |
| Motherboard form factor | ATX |
| Component for | Server |
| Performance | |
| PC health monitoring | Fan, Temperature, Voltage |
| Motherboard form factor | ATX |
| Component for | Server |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD EPYC |
| Processor socket | Socket SP3 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Octa-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2400,2666 MHz |
| Supported RDIMM clock speeds | 2400,2666,2933,3200 MHz |
| Supported RDIMM module capacity | 8GB, 16GB, 32GB |
| Storage controllers | |
| Supported storage drive interfaces | SATA III |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 128 MB |

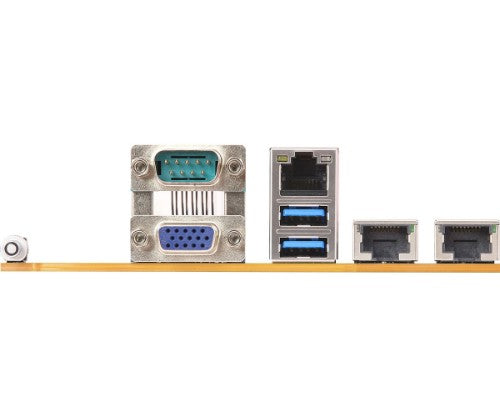

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| COM ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel® X550, Realtek RTL8211E |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Features | |
| PC health monitoring | Fan, Temperature, Voltage |
| Compatible operating systems | Windows Server 2012 R2 (x64), Server 2016 (x64) Linux RedHat Enterprise Linux Server 6.9 (x64) / 7.3 (x64), CentOS 6.9 (x64) / 7. 3 (x64), SUSE Enterprise Linux Server 11 SP4 (x64) / 12 SP2 (x64), Ubuntu 16.04 (x64) / 17.04 (x64), CITRIX XenServer 7.5 VMWare ESXi 6.5 u1, vSphere 6.5 u1 |
| Motherboard form factor | ATX |
| Component for | Server |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0 |
| System Management BIOS (SMBIOS) version | 2.8 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Height | 2.76" (70 mm) |
| Weight | 3.86 lbs (1.75 kg) |
| Width | 12" (305 mm) |
| Depth | 9.61" (244 mm) |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | SATA |
| Other features | |
| Height | 2.76" (70 mm) |
| PCI Express x8 (Gen 3.x) slots | 3 |
| Supported RDIMM clock speeds | 2400,2666,2933,3200 MHz |
| Supported RDIMM module capacity | 8GB, 16GB, 32GB |
| Weight | 3.86 lbs (1.75 kg) |
| Quick installation guide | Yes |
| Number of processors supported | 1 |
| Number of DIMM slots | 8 |
| Compatible operating systems | Windows Server 2012 R2 (x64), Server 2016 (x64) Linux RedHat Enterprise Linux Server 6.9 (x64) / 7.3 (x64), CentOS 6.9 (x64) / 7. 3 (x64), SUSE Enterprise Linux Server 11 SP4 (x64) / 12 SP2 (x64), Ubuntu 16.04 (x64) / 17.04 (x64), CITRIX XenServer 7.5 VMWare ESXi 6.5 u1, vSphere 6.5 u1 |
| Supported LRDIMM module capacity | 128GB, 32GB |
| Supported LRDIMM clock speeds | 2933,3200,2400,2666 MHz |
