Single Socket P+ (LGA 4189), Intel C621A, 8 DIMM slots, DDR4 288-pin, 4 PCIe4.0 x16, Micro-ATX
Asrock

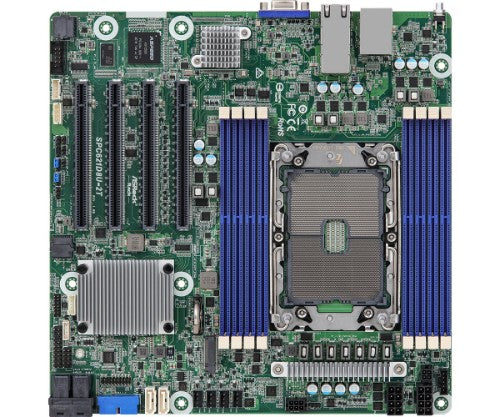

Asrock SPC621D8U-2T motherboard Intel C621A LGA 4189 micro ATX
Part number:
SPC621D8U-2T
Sale price
$687.67
Regular price
$710.70
Save
$23.03
3%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Micro-ATX (9.6" x 9.6")
- Supports 3rd Gen Intel® Xeon® Scalable Processors
- 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel® Optane™ Persistent Memory
- 4 PCIe4.0 x16
- Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- Up to 11 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel® X710-AT2
- Supports ATX PSU or 12V DC-in
- Remote management (IPMI)
Description
Specifications
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C621A |
| PC health monitoring | Fan, Temperature, Voltage |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Performance | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C621A |
| RAID levels | 0, 1, 5, 10 |
| PC health monitoring | Fan, Temperature, Voltage |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 4189 |
| Memory | |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| Maximum RDIMM memory | 64 GB |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| Internal I/O | |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 11 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel X710-AT2, Realtek RTL8211E |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C621A |
| PC health monitoring | Fan, Temperature, Voltage |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 4 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 4.0 |
| System Management BIOS (SMBIOS) version | 3.3 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 9.6" (243.8 mm) |
| Depth | 9.6" (243.8 mm) |
