Single Socket AM4 (PGA1331), AMD B550, 4 DIMM slots, 2x RJ45 (1GbE), ATX
Asrock

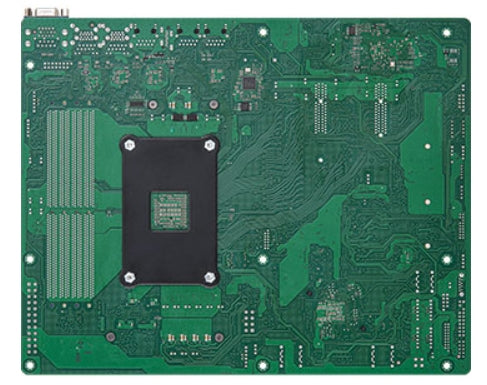

Asrock B550D4-4L motherboard AMD B550 Socket AM4 ATX
Part number:
B550D4-4L
$327.10
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- ATX (12"x 9.6")
- Support AMD Ryzen 5000 Series Desktop Processors
- 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- 1 PCIe 4.0 x16, 1 PCIe 4.0 x4
- Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- 6 SATA 6Gb/s
- 4 RJ45 (1GbE) by Intel® i210
- HDMI
- Remote management (IPMI)
Description
Specifications
| Technical details | |
|---|---|
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| PC health monitoring | CPU, Fan, Voltage |
| Motherboard form factor | ATX |
| Component for | Server |
| Performance | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| RAID levels | 0, 1, 10 |
| PC health monitoring | CPU, Fan, Voltage |
| Motherboard form factor | ATX |
| Component for | Server |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5 |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| ECC | Yes |
| Non-ECC | Yes |
| Maximum internal memory | 32 GB |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| Internal I/O | |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 7 |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |

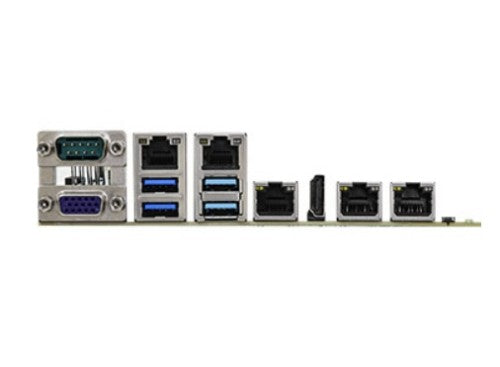

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| IPMI LAN (RJ-45) port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Features | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| PC health monitoring | CPU, Fan, Voltage |
| Motherboard form factor | ATX |
| Component for | Server |
| Expansion slots | |
| PCI Express x4 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.1 |
| System Management BIOS (SMBIOS) version | 2.3 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 12" (305 mm) |
| Depth | 9.61" (244 mm) |
