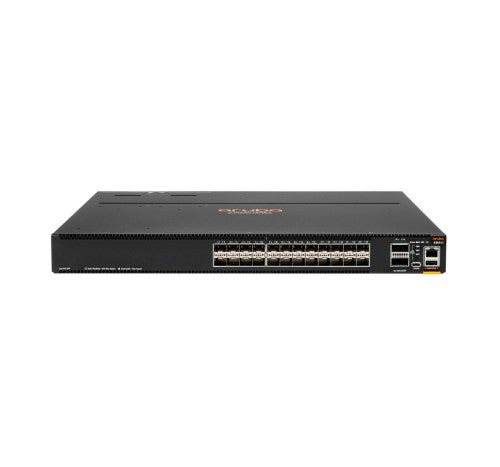

HPE Aruba Networking Aruba 8360-24XF2C v2, Managed, L3, Rack mounting, 1U
HPE
HPE Aruba Networking Aruba 8360-24XF2C v2 Managed L3 1U
Part number:
JL710C#ABA
Sale price
$21,990.16
Regular price
$28,775.00
Save
$6,784.84
24%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
HPE Aruba Networking Aruba 8360-24XF2C v2. Switch type: Managed, Switch layer: L3. Console port: RJ-45/USB Type-C. MAC address table: 212992 entries, Switching capacity: 880 Gbit/s. Networking standards: IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Network | |
| IGMP snooping | Yes |
| IGMP entries | 7000 |
| Networking standards | IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 1000,10000,40000,100000 Mbit/s |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Number of VLANs | 4094 |
| Throughput | 2678 Mpps |
| Packet buffer memory | 32 MB |
| MAC address table | 212992 entries |
| Switching capacity | 880 Gbit/s |
| Jumbo frames support | Yes |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Optical fiber | |
| Fiber optic connector | QSFP+, QSFP28, SFP, SFP+ |
| Performance | |
| Packet buffer memory | 32 MB |
| Processor frequency | 1800 MHz |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32768 MB |
| Built-in processor | Yes |
| Technical details | |
| Form factor | 1U |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 24 |
| QSFP+ module slots quantity | 2 |
| Fiber optic connector | QSFP+, QSFP28, SFP, SFP+ |
| Console port | RJ-45/USB Type-C |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | SNMPv2, SNMPv3 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| Access Control List (ACL) ingress | 65536 |
| IGMP entries | 7000 |
| Access Control List (ACL) egress | 8192 |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | BGP4, MPLS, OSPF, OSPFv3, RIP-2, RIPng |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Memory | |
| Packet buffer memory | 32 MB |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32768 MB |
| Design | |
| Form factor | 1U |
| Rack mounting | Yes |
| Ventilation system | Front-to-back airflow |
| Airflow direction | Front-to-back airflow |
| Number of fans | 3 fan(s) |
| Redundant fans support | Yes |
| Power | |
| Power consumption (max) | 325 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 1280 BTU/h |
| Weight & dimensions | |
| Width | 17.4" (442.5 mm) |
| Depth | 16" (406.4 mm) |
| Height | 1.73" (44 mm) |
| Weight | 17.8 lbs (8.07 kg) |
| Other features | |
| Ethernet LAN data rates | 1000,10000,40000,100000 Mbit/s |
