8-Port Gigabit Desktop Switch
Gigabit Speeds
Gigabit ports provide high-speed network connections to eight devices, and a 16Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Compact Design
With a compact and lightweight metal housing design, this gigabit switch is well-suited for desktop installations.
Fanless
Fanless design lowers energy consumption, and eliminates distracting noise for quiet environments that require silent operation.
Trendnet

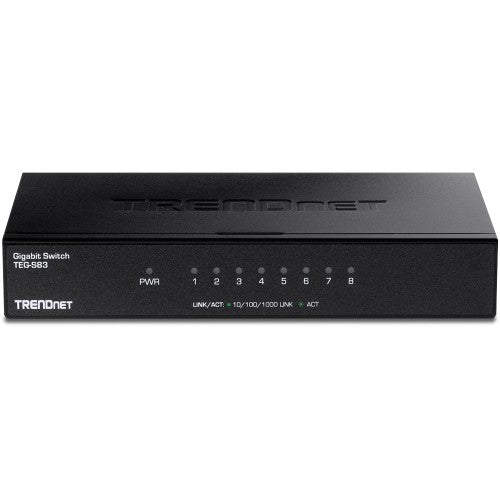

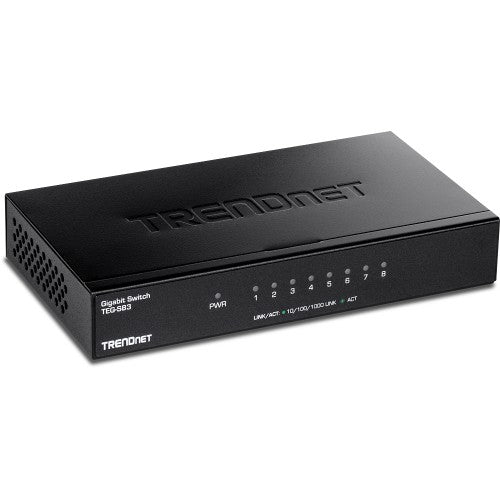

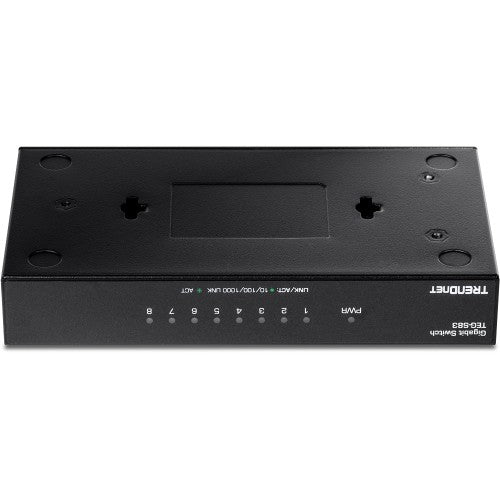

Trendnet TEG-S83 network switch
Part number:
TEG-S83
$25.26
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Plug and play installation
- 8 x Gigabit ports
- 16Gbps switching capacity
- Sturdy metal switch
- Fanless design
- NDAA / TAA compliant (U.S. and Canada only)
Description
The 8-Port Gigabit Desktop Switch, model TEG-S83, provides high-bandwidth performance, ease of use, and reliability. This gigabit switch boosts office network efficiency and eliminates network congestion. It features gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy metal gigabit switch for reliable high-speed network connectivity.Gigabit Speeds
Gigabit ports provide high-speed network connections to eight devices, and a 16Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Compact Design
With a compact and lightweight metal housing design, this gigabit switch is well-suited for desktop installations.
Fanless
Fanless design lowers energy consumption, and eliminates distracting noise for quiet environments that require silent operation.
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Packet buffer memory | 0.1875 MB |
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 11.9 Mpps |
| Design | |
| LED indicators | Yes |
| Rack mounting | No |
| Certification | FCC CE |
| Performance | |
| Mean time between failures (MTBF) | 1451740 h |
| Fanless | Yes |
| Packet buffer memory | 0.1875 MB |
| Power | |
| Power consumption (max) | 3.2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 5 V |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 0.984" (25 mm) |
| Depth | 6.3" (160 mm) |
| Height | 4.29" (109 mm) |
| Weight | 14.6 oz (414 g) |
| Technical details | |
| Mean time between failures (MTBF) | 1451740 h |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 0.1875 MB |
| Certificates | |
| Certification | FCC CE |
| Indication | |
| LED indicators | Yes |
