8 x Gigabit PoE+, 2 x Gigabit SFP 1000Base-FX, LED, 48 – 55 V DC, PoE 240W@56V DC, IP30
Supplies up to 30W of PoE/PoE+ power per port with a 240W PoE power budget
Network Ports
8 x Gigabit PoE+ ports and 2 x Gigabit slots
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware
Switching Capacity
20Gbps switching capacity
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately, models: TI-S24052, TI-S24048)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Wide Operating Temperature
Rated for an operating temperature range of -20° – 65°C (-4° – 149°F)
Grounding Point
Grounding point protects equipment from external electrical surges
Trendnet

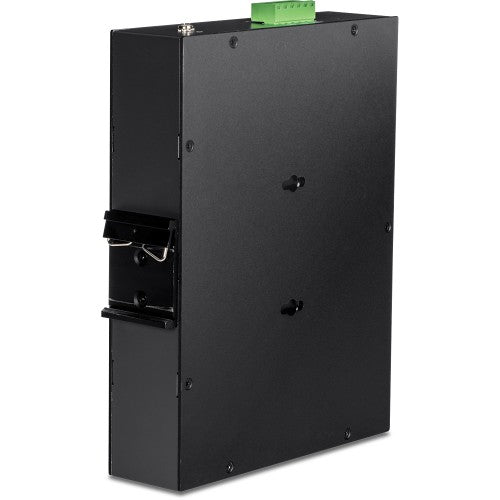

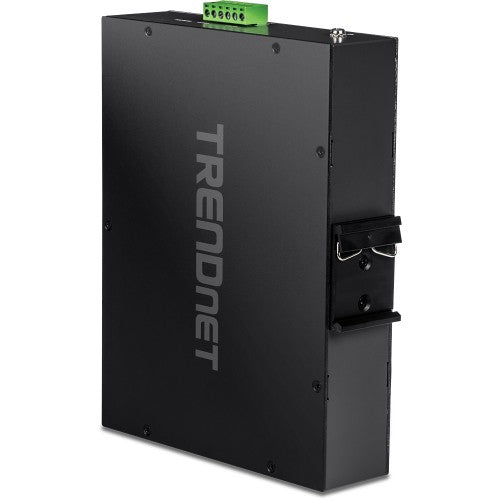

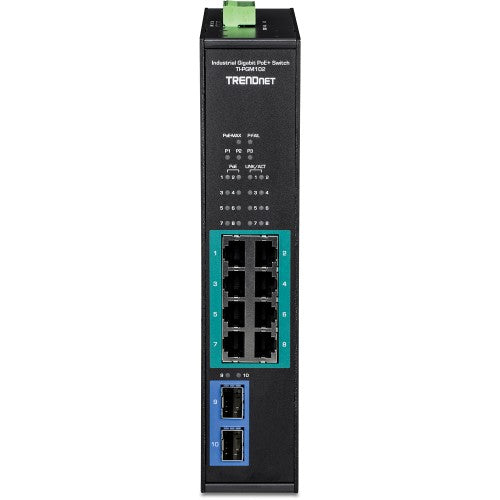

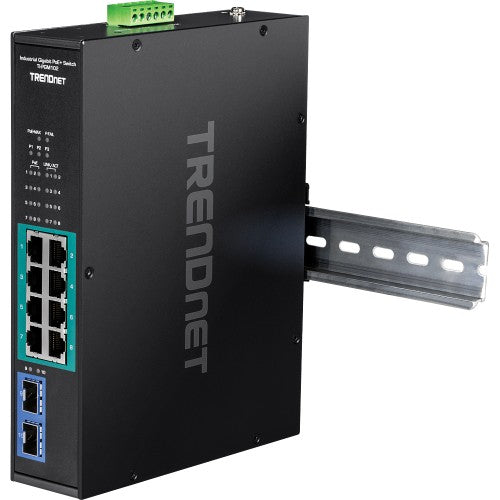

Trendnet TI-PGM102 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
TI-PGM102
Sale price
$226.19
Regular price
$229.99
Save
$3.80
2%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 8 x Gigabit PoE+ ports
- 2 x Gigabit SFP slots
- 240W PoE power budget
- 20Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-Rail and wall mounts
- Wide operating temperature range of -20° – 65°C (-4° – 149°F)
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (models: TI-S24052, TI-S24048)
Description
Full PoE+ Power BudgetSupplies up to 30W of PoE/PoE+ power per port with a 240W PoE power budget
Network Ports
8 x Gigabit PoE+ ports and 2 x Gigabit slots
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware
Switching Capacity
20Gbps switching capacity
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately, models: TI-S24052, TI-S24048)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Wide Operating Temperature
Rated for an operating temperature range of -20° – 65°C (-4° – 149°F)
Grounding Point
Grounding point protects equipment from external electrical surges
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Network | |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 1 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 14.88 Mpps |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Performance | |
| Mean time between failures (MTBF) | 1000000 h |
| Packet buffer memory | 1.5 MB |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 6.38 W |
| Power supply included | No |
| Power protection features | Overload |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 48 - 55 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Power protection features | Overload |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 8.27" (210 mm) |
| Depth | 6.3" (160 mm) |
| Height | 1.77" (45 mm) |
| Weight | 2.43 lbs (1.1 kg) |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 1000000 h |
| Housing material | Metal |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
