ExtremeCloud IQ: Indoor WiFi6 AP, 4x4 radios, 2.5 GbE & 1 GbE port. Integrated light/power sensors and BLE. AI/ML green mode. External antennas, T-Bar, Incl Mt (AH-ACC-BKT-AX-TB). Includes Connect. All regulatory domains World Sku
High Capacity, High-Efficiency Wi-Fi 6 Indoor External Antenna Access Point with Software-Defined Dual 5 GHz Radios with Extended Operational Temperature Range.
High-Performance Enterprise Wi-Fi 6
Designed to leverage the performance improvements delivered with 802.11ac wave 2, 802.11ax borrows key technology from cellular to increase device capacity and improve spectral efficiency, extracting more out of available Wi-Fi spectrum.
Extreme networks

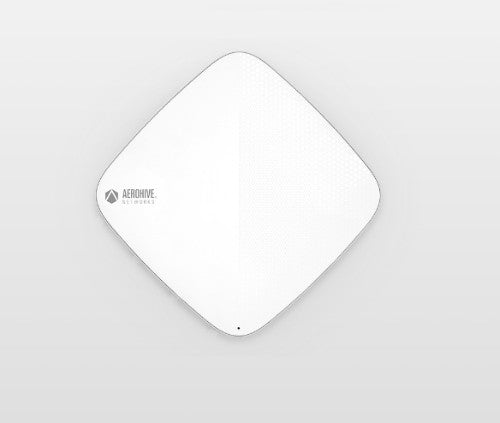

Extreme networks AP510CX-WW wireless access point White Power over Ethernet (PoE)
Part number:
AP510CX-WW
Sale price
$1,298.56
Regular price
$1,822.00
Save
$523.44
29%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- AI-driven Wi-Fi architecture capable of self-organizing, self-learning, self-healing and self-optimizing in the most challenging environments
- Perfect for demanding industrial environments
- Stateful L2-L7 DPI firewall for context-based access security
- Advanced and customizable QoS for traffic optimizationLatest in Ethernet standards (2.5 mGig)
- Extended operational temperature range
- Integrated BLE and USB connectivity for enhanced location-driven services and IoT connectivity
Description
High-Capacity, High- Efficiency Wi-Fi 6 Antenna Access pointHigh Capacity, High-Efficiency Wi-Fi 6 Indoor External Antenna Access Point with Software-Defined Dual 5 GHz Radios with Extended Operational Temperature Range.
High-Performance Enterprise Wi-Fi 6
Designed to leverage the performance improvements delivered with 802.11ac wave 2, 802.11ax borrows key technology from cellular to increase device capacity and improve spectral efficiency, extracting more out of available Wi-Fi spectrum.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Number of users | 1024 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3az |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Network | |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Number of users | 1024 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3az |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Number of users | 1024 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3az |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Trusted Platform Module (TPM) | Yes |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 5.7 dBi |
| Antenna connector type | RP-SMA |
| Antenna direction type | Omni-directional |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 8.86" (225 mm) |
| Depth | 8.86" (225 mm) |
| Weight | 28 lbs (12.7 kg) |
| Height | 1.48" (37.5 mm) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
