15.6'', TFT LCD (LED), PCAP, 1920 x 1080, 16:9, USB, VGA, HDMI, 244.39 x 386.96 x 32.4 mm
The 1502LM Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with critical healthcare features, including adherence to IP-22 and IEC 60601-1 standards. Its compact form factor and sleek design make it ideal for patient entertainment, virtual health, patient monitoring, respiratory and medication dispensing devices, and laboratories.
Easy to Clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.
Interactive Patient Care
Enhance the patient’s experience with the 1502LM medical grade touch screen monitor at the bedside for entertainment applications or educational content keeping them informed during the course of their treatment.
Virtual Health and Patient Monitoring
Combining virtual health solutions with patient monitoring capabilities enables healthcare providers to save time, increase satisfaction and enhance care all at a lower cost. Whether from a medical cart, in a clinic or in a patient room, pair Elo’s medical grade touch screen monitor with the Elo Edge Connect Webcam to engage, educate and personalize care for patients outside traditional office visits.
Purpose-built for Healthcare
The 1502LM offers installation flexibility in a variety of healthcare environments to support increased communication between patients and providers.
Medical Device-Ready
With a full line of touch technologies and display solutions, Elo can customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From patient rooms to laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

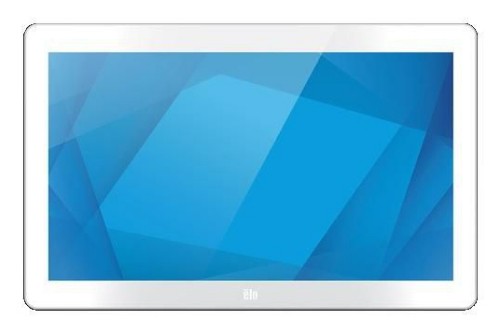

Elo Touch Solutions 1502LM 15.6" LED 250 cd/m² Full HD White Touchscreen
Part number:
E967255
Sale price
$778.20
Regular price
$1,038.53
Save
$260.33
25%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- IP-22 Rating. Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution
- IEC 60601 compliant power supply included
- Integrated Touch. TouchPro® PCAP offers a 10-touch, tablet-like experience with capability for use with wet or dry gloves
- Built-to-Last. Backed by Elo’s 3-year standard warranty with optional EloCare service offerings
Description
Medical Grade Touchscreen MonitorsThe 1502LM Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with critical healthcare features, including adherence to IP-22 and IEC 60601-1 standards. Its compact form factor and sleek design make it ideal for patient entertainment, virtual health, patient monitoring, respiratory and medication dispensing devices, and laboratories.
Easy to Clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.
Interactive Patient Care
Enhance the patient’s experience with the 1502LM medical grade touch screen monitor at the bedside for entertainment applications or educational content keeping them informed during the course of their treatment.
Virtual Health and Patient Monitoring
Combining virtual health solutions with patient monitoring capabilities enables healthcare providers to save time, increase satisfaction and enhance care all at a lower cost. Whether from a medical cart, in a clinic or in a patient room, pair Elo’s medical grade touch screen monitor with the Elo Edge Connect Webcam to engage, educate and personalize care for patients outside traditional office visits.
Purpose-built for Healthcare
The 1502LM offers installation flexibility in a variety of healthcare environments to support increased communication between patients and providers.
Medical Device-Ready
With a full line of touch technologies and display solutions, Elo can customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From patient rooms to laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Specifications
| Display | |
|---|---|
| Panel type | TFT |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Display technology | LED |
| Display diagonal | 15.6" |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 250 cd/m² |
| HD type | Full HD |
| Response time | 30 ms |
| Contrast ratio (typical) | 700:1 |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Touchscreen technology | Projected capacitive system |
| Ports & interfaces | |
| USB connector type | USB Type-C |
| USB port | Yes |
| PC Audio in | Yes |
| HDMI ports quantity | 1 |
| Audio | |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product colour | White |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Purpose | Healthcare |
| International Protection (IP) code | IP22 |
| On Screen Display (OSD) | Yes |
| Power | |
| Power consumption (off) | 0.2 W |
| Power consumption (typical) | 9.5 W |
| Power consumption (standby) | 1.27 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Weight & dimensions | |
| Width (with stand) | 11.2" (284.6 mm) |
| Height (with stand) | 15.2" (387 mm) |
| Depth (with stand) | 7.84" (199.1 mm) |
| Weight (with stand) | 6.79 lbs (3.08 kg) |
| Display width | 9.62" (244.4 mm) |
| Display depth | 1.28" (32.4 mm) |
| Display height | 15.2" (387 mm) |
| Display weight | 3.62 lbs (1.64 kg) |
| Packaging data | |
| Package width | 8.03" (204 mm) |
| Package depth | 13.5" (344 mm) |
| Package height | 17.8" (451 mm) |
| Package weight | 11.2 lbs (5.1 kg) |
| Cables included | AC, HDMI, USB |
| Packaging content | |
| Stand included | No |
| Cables included | AC, HDMI, USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | USB Type-C |
| Stand included | No |
| Panel type | TFT |
| Number of simultaneous touchpoints | 10 |
| Weight (with stand) | 6.79 lbs (3.08 kg) |
| Features | |
| Wall mountable | Yes |
| Other features | |
| USB connector type | USB Type-C |
| Stand included | No |
| Panel type | TFT |
| Number of simultaneous touchpoints | 10 |
| Width (with stand) | 11.2" (284.6 mm) |
| Height (with stand) | 15.2" (387 mm) |
| Display technology | LED |
| Depth (with stand) | 7.84" (199.1 mm) |
| Weight (with stand) | 6.79 lbs (3.08 kg) |
| Energy efficiency scale | A to G |
