1.5kVA, 2U, 120V, single phase, Lithium-Ion
The Panduit® SmartZone™ Intelligent Rack UPS with compact, high capacity, and long life Lithium
Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double
Conversion system that delivers highly efficient and reliable power protection and backup power
for your computer IT equipment. With excellent electrical performance, enhanced intelligent
monitoring and network functions and complying with EMC and safety standards to meet the
continually growing power demands of Data Center, Enterprise and Edge IT equipment.
Panduit

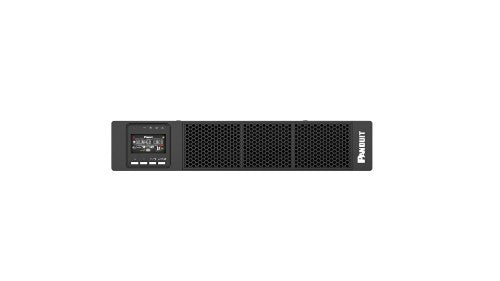

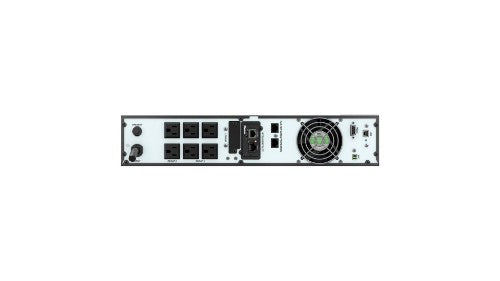

Panduit SmartZone uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1350 W 6 AC outlet(s)
Part number:
U02N11L
Sale price
$1,825.25
Regular price
$2,158.62
Save
$333.37
15%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Rack/Tower convertible
- Wide input voltage range
- Energy savings
- Generator compatible
- Cold start function
Description
SmartZone UPS, 1.5kVA, 2U, 120V, single phase, Lithium-Ion Line Interactive power protection with Intelligent Network CardThe Panduit® SmartZone™ Intelligent Rack UPS with compact, high capacity, and long life Lithium
Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double
Conversion system that delivers highly efficient and reliable power protection and backup power
for your computer IT equipment. With excellent electrical performance, enhanced intelligent
monitoring and network functions and complying with EMC and safety standards to meet the
continually growing power demands of Data Center, Enterprise and Edge IT equipment.
Specifications
| Power | |
|---|---|
| Output frequency | 50/60 Hz |
| Output power factor | 0.9 |
| Output power | 1350 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 125 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Maximum current | 2 A |
| Efficiency | 89.5% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Output power capacity | 1.5 kVA |
| Efficiency (On-line mode) | 96.5% |
| Charging current | 2 A |
| ECO mode | Yes |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 118.1" (3 m) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45, RS-232, RS-485 |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Power plug | NEMA 5-15P |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Surge protection | Yes |
| Power protection features | Overcharge, Overdischarge, Overheating, Overload, Short circuit, Under voltage |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.9 |
| Output power | 1350 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 125 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Maximum current | 2 A |
| Efficiency | 89.5% |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Power protection features | Overcharge, Overdischarge, Overheating, Overload, Short circuit, Under voltage |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 1.5 kVA |
| Efficiency (On-line mode) | 96.5% |
| ECO mode | Yes |
| Input frequency | 50/60 Hz |
| Charging current | 2 A |
| Battery | |
| Battery life (max) | 10 year(s) |
| Battery voltage | 48 V |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery recharge time | 4 h |
| Typical backup time at half load | 19 min |
| Typical backup time at full load | 7.5 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Charging current | 2 A |
| Replacement battery cartridge | ULC048 |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Cooling type | Active |
| Cable length | 118.1" (3 m) |
| Built-in fan | Yes |
| Control type | Buttons |
| Display type | LCD + LED |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, UL ECOLOGO |
| Compliance certificates | CE, REACH, RoHS |
| Cooling | |
| Cooling type | Active |
| Built-in fan | Yes |
| Weight & dimensions | |
| Package width | 21.9" (555 mm) |
| Package depth | 23.2" (590 mm) |
| Package height | 7.95" (202 mm) |
| Weight | 37.7 lbs (17.1 kg) |
| Width | 17.3" (440 mm) |
| Package weight | 50.9 lbs (23.1 kg) |
| Height | 3.41" (86.5 mm) |
| Depth | 18.1" (460 mm) |
| Packaging data | |
| Package width | 21.9" (555 mm) |
| Package depth | 23.2" (590 mm) |
| Package height | 7.95" (202 mm) |
| Package weight | 50.9 lbs (23.1 kg) |
