2.4 / 5 GHz, 802.11 a/b/g/n/ac, 300 / 867Mbps, 4 x 5 dBi, MU-MIMO, 3 x Gigabit LAN, 1 x Gigabit WAN, 350 g
Tenda

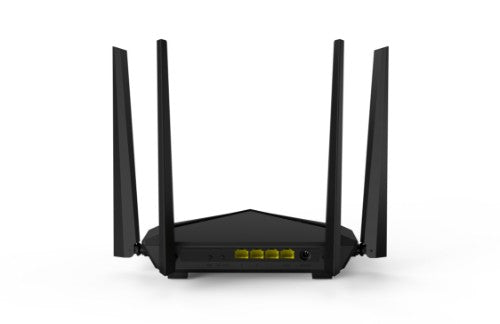

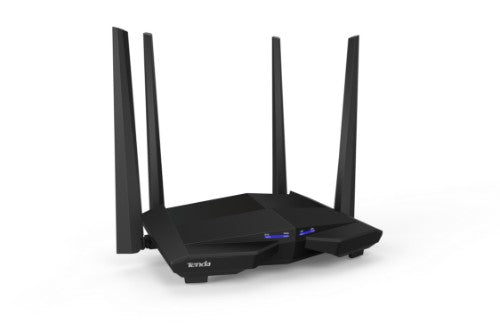

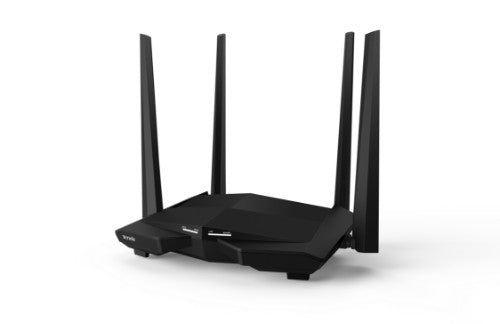

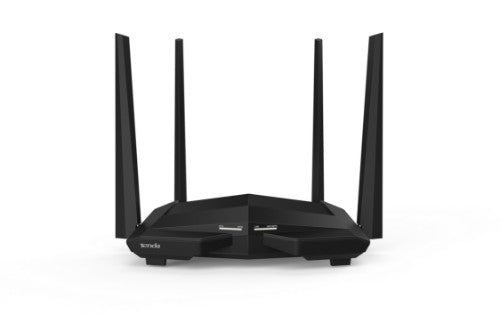

Tenda AC10 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Part number:
AC10
Sale price
$30.40
Regular price
$34.99
Save
$4.59
13%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports VPN for your private network
- Supports one-click bandwidth control
- WiFi Repeater to expand WiFi coverage
- Guest network for higher network security
- Supports L2TP, PPTP and IPSec penetration
- WiFi Schedule for smart life and green environment
Description
AC10 leads the way in next generation routers, offering dual-band Gigabit wireless with all-new 802.11ac Wave 2.0 Wi-Fi. Its powerful 1GHz CPU and 128MB DDR3 provide the best performance in both 2.4GHz and 5GHz. The 5GHz band works at up to 867Mbps, while the 2.4GHz frequency tops 300Mbps, serving an incredible combined bandwidth of 1167Mbps. AC10 AC1200 Smart Dual-band Wireless Router Gigabit Ports/4*5dBi Omnidirectional Antennas/2.4G and 5G Wireless Enhanced Module/ MU-MIMO/Beamforming+/APP Management With 1 GHz CPU made with 28 nm process, AC10 manifests excellent capacity on data processing and energy conservation. It works well with optical fiber with bandwidth ranging from 50 M, 100 M, 200 M to even 1000 M, allowing you to enjoy smooth HD videos and games. All Gigabit ports for full play of your ever-increasing bandwidth of optical fiber AC10 is a high-performance WiFi router designed with full Gigabit WAN and LAN ports,removing the bottleneck of wired ports speed when working with faster bandwidth of optical fiber. Strong dual band WiFi signal for multi-wall penetration With the new generation 802.11ac wave 2.0 standard, AC10 offers a concurrent dual band data rate of as high as 1167 Mbps. Wireless signal boosting technology both on 2.4 GHz and 5 GHz bands broadens your WiFi coverage, and Beamforming+ technology makes WiFi signal of AC10 outstanding behind multiple walls. Innovative MU-MIMO technology With innovative MU-MIMO, the breakthrough of the new generation 802.11 ac standard,AC10 can communicate with multiple devices at a time, shortening latency and improving quantities of connected devices. Four clean-cut antennas for stronger WiFi signal and wider WiFi coverage AC10 boasts four 5 dBi omni-directional antennas. With leading accordion wire design, multiple oscillators and scientific bevel, AC10 balances the signal field and gain, providing you with stronger WiFi signals. Configuration-free for quick setup What if you forget your PPPoE user name or password, or you cannot login to the web UI of the router for setup? AC10 can eliminate your concern by migrating your PPPoE user name and password from your original router. Tenda WiFi app for your smart life Tenda WiFi app allows you to upgrade online, manage your network and devices remotely and get a real-time understanding of usage of your router, making life simple and easy.Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| DSL features | |
| DSL WAN | No |
| Mobile network | |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| 3G | No |
| 4G | No |
| Protocols | |
| DMZ support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Management features | |
| Universal Plug and Play (UPnP) | Yes |
| WPS push button | Yes |
| Reset button | Yes |
| Security | |
| VPN support | PPTP Client, PPTP Server, L2TP Client |
| System event log | Yes |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
| MAC address filtering | Yes |
| Firewall security | Forbid UDP Flood Attack, Forbid TCP Flood Attack, Forbid ICMP Flood Attack, Forbid WAN Ping from Internet, PPTP Pass Through, L2TP Pass Through, IPSec Pass Through |
| Firewall | Yes |
| DMZ support | Yes |
| Filtering | Yes |
| Performance | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Memory card slot(s) | No |
| Weight & dimensions | |
| Package width | 7.8" (198 mm) |
| Package weight | 28.6 oz (810 g) |
| Package height | 2.76" (70 mm) |
| Package depth | 15.4" (390 mm) |
| Width | 7.8" (198 mm) |
| Weight | 12.3 oz (350 g) |
| Height | 2.76" (70 mm) |
| Depth | 15.4" (390 mm) |
| Certificates | |
| Certification | CE, FCC, RoHS, BSMI, NCC, EAC, IC |
| Packaging content | |
| Package type | Box |
| Number of products included | 1 pc(s) |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Network | |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| VPN support | PPTP Client, PPTP Server, L2TP Client |
| Port forwarding | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Static route | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ports & interfaces | |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| Memory card slot(s) | No |
| Design | |
| Product type | Tabletop router |
| On/off switch | Yes |
| LED indicators | LAN, System, WAN, WLAN, WPS |
| Product colour | Black |
| Indication light | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Transmit power | 23 dBmW |
| Features | |
| Certification | CE, FCC, RoHS, BSMI, NCC, EAC, IC |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 2 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Packaging data | |
| Package width | 7.8" (198 mm) |
| Package weight | 28.6 oz (810 g) |
| Package type | Box |
| Package height | 2.76" (70 mm) |
| Package depth | 15.4" (390 mm) |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
