IEEE 802.11a/b/g/n/ac, 250 m, 100+ clients, IP66, 358.3 x 115 x 45.3 mm
Grandstream Networks

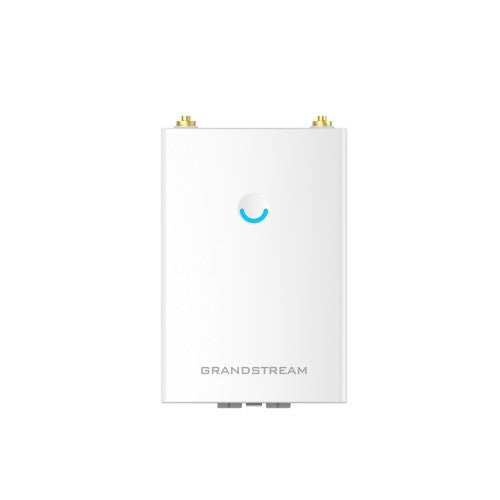

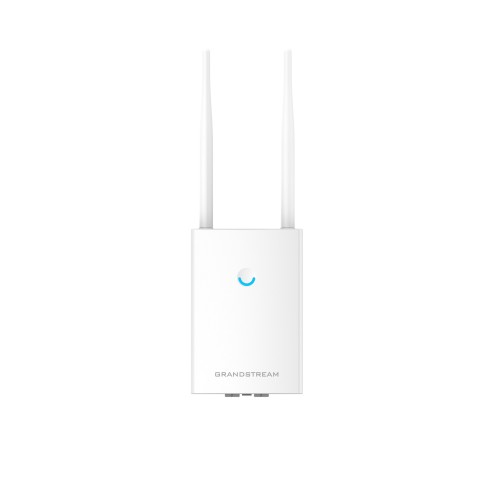

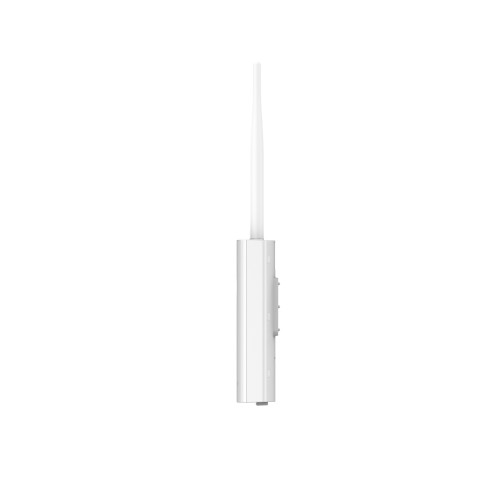

Grandstream Networks GWN7605LR wireless access point 867 Mbit/s White Power over Ethernet (PoE)
Part number:
GWN7605LR
Sale price
$93.01
Regular price
$110.00
Save
$16.99
15%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 1.27Gbps aggregate wireless throughput and 2×Gigabit wireline ports
- Dual-band 2×2:2 MUMIMO with beam-forming technology
- Self power adaptation upon auto detection of PoE or PoE+
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown
- Flexibilty of 2 detachable/ changeable antennas for different application scenarios
- Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management
Description
The GWN7605LR is equipped with a controller-less distributed network management architecture in which the controller is embedded within the product’s Web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7605LR is also supported by GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. Powered by market leading technology for advanced QoS, fast roaming, mesh networks, captive portals, support for 100+ concurrent clients and dual Gigabit network ports, the GWN7605LR is an ideal Wi-Fi access point for low-latency jitter-sensitive real-time applications (such as voice/video-over-Wi-Fi devices & applications) in low-to-medium indoor and outdoor user density scenarios.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 867 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Number of users | 100 user(s) |
| Receiver sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum outdoor range | 9842.5" (250 m) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 867 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Maximum outdoor range | 9842.5" (250 m) |
| Network | |
| Number of users | 100 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Number of users | 100 user(s) |
| Receiver sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum outdoor range | 9842.5" (250 m) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Maximum data transfer rate | 867 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Security | |
| Number of SSID supported | 16 |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols | |
| Supported network protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| Ports & interfaces | |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |
| Power consumption (max) | 10.16 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| International Protection (IP) code | IP66 |
| Housing material | Metal |
| Placement | Wall |
| Product colour | White |
| LED indicators | Yes |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 2 |
| Antenna gain level (max) | 3.5 dBi |
| Technical details | |
| Receiver sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 4.53" (115 mm) |
| Depth | 14.1" (358.3 mm) |
| Weight | 17.6 oz (500 g) |
| Height | 1.78" (45.3 mm) |
| Package width | 9.72" (247 mm) |
| Package depth | 10.2" (258 mm) |
| Package height | 3.39" (86 mm) |
| Package weight | 23.1 oz (655.3 g) |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Package width | 9.72" (247 mm) |
| Package depth | 10.2" (258 mm) |
| Package height | 3.39" (86 mm) |
| Package weight | 23.1 oz (655.3 g) |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -30 - 80 °C |
| Sustainability | |
| Sustainability compliance | Yes |
