802.11ax, 2.4/5 GHz, 3.55 Gbps, MIMO, 1/2.5G LAN, PoE, 205.3x205.3x405.9 mm
The GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers dual-band 4x4:4 MUMIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi cover age range. The GWN7664 is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi Aps. The GWN7664 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 512 concurrent clients and dual Gigabit network ports with PoE/PoE+, the GWN7664 is an ideal Wi-Fi access point for business-grade wireless network deployments with medium-to-high user density.
Grandstream Networks

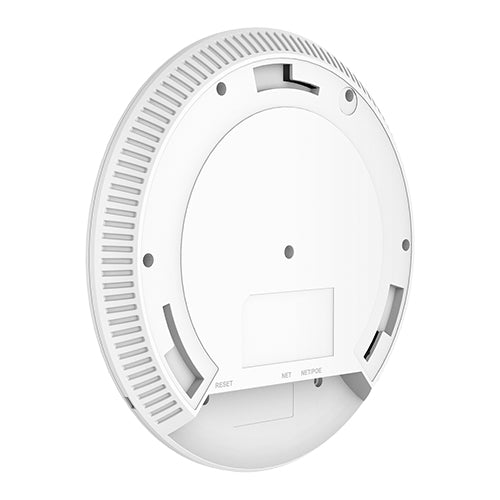

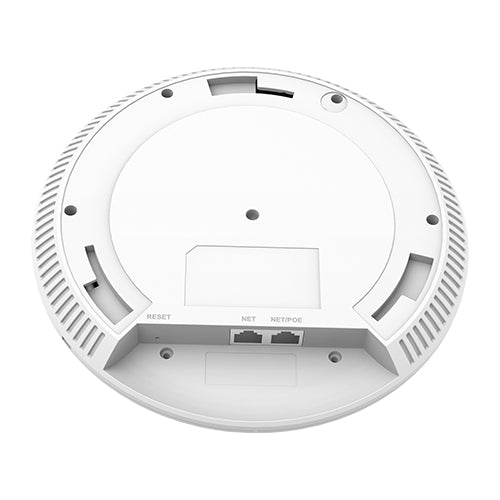

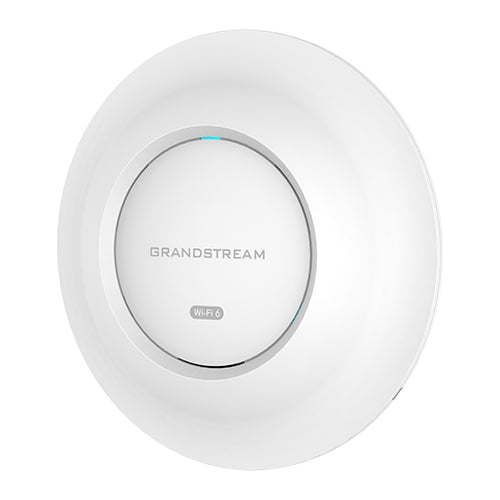

Grandstream Networks GWN7664 wireless access point 3550 Mbit/s White Power over Ethernet (PoE)
Part number:
GWN7664
Sale price
$148.71
Regular price
$275.00
Save
$126.29
46%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput
- Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology
- Up to 175-meter coverage range
- Supports 512 concurrent Wi-Fi client devices
- Includes 1x 1G Port and 1x 2.5G Port
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self power adaptation upon auto detection of PoE or PoE+
- Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management
Description
The GWN7664 offers dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi coverage range, ideal for business-grade wireless network deployments with medium-to-high user density.The GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers dual-band 4x4:4 MUMIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi cover age range. The GWN7664 is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi Aps. The GWN7664 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 512 concurrent clients and dual Gigabit network ports with PoE/PoE+, the GWN7664 is an ideal Wi-Fi access point for business-grade wireless network deployments with medium-to-high user density.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Maximum data transfer rate | 3550 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Transmitting power | 26 dBmW |
| Reset button | Yes |
| Web-based management | Yes |
| Receiver sensitivity | 2.4G 802.11b: -99dBm@1Mbps, -91dBm@11Mbps; 802.11g: -94dBm @6Mbps, -78dBm@54Mbps; 802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11 5G 802.11a: -95dBm @6Mbps, -77dBm @54Mbps; 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11 |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Certification | FCC, CE, RCM, IC |
| Maximum data transfer rate | 3550 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Security | |
| Cable lock slot | Yes |
| Number of SSID supported | 32 |
| Security algorithms | WEP, WPA, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP, WPA3 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Certificates | |
| Certification | FCC, CE, RCM, IC |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Transmitting power | 26 dBmW |
| Receiver sensitivity | 2.4G 802.11b: -99dBm@1Mbps, -91dBm@11Mbps; 802.11g: -94dBm @6Mbps, -78dBm@54Mbps; 802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11 5G 802.11a: -95dBm @6Mbps, -77dBm @54Mbps; 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11 |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Maximum data transfer rate | 3550 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Protocols | |
| Supported network protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | FCC, CE, RCM, IC |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 8 |
| Antenna gain level (max) | 4 dBi |
| Technical details | |
| Transmitting power | 26 dBmW |
| Reset button | Yes |
| Receiver sensitivity | 2.4G 802.11b: -99dBm@1Mbps, -91dBm@11Mbps; 802.11g: -94dBm @6Mbps, -78dBm@54Mbps; 802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11 5G 802.11a: -95dBm @6Mbps, -77dBm @54Mbps; 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11 |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 8.08" (205.3 mm) |
| Depth | 8.08" (205.3 mm) |
| Weight | 25.2 oz (714 g) |
| Height | 16" (405.9 mm) |
| Package width | 10.2" (258 mm) |
| Package depth | 9.72" (247 mm) |
| Package height | 3.39" (86 mm) |
| Package weight | 2.34 lbs (1.06 kg) |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Package width | 10.2" (258 mm) |
| Package depth | 9.72" (247 mm) |
| Package height | 3.39" (86 mm) |
| Package weight | 2.34 lbs (1.06 kg) |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
