NC10U5, Core i5-8265U, 2x SO-DIMM DDR4, 2.5", M.2, WLAN, 1G LAN, HDMI, DP, USB, 65 W, 142x142x42 mm
The NC10 series is powered by Intel's power-saving ULV (ultra-low-voltage) processors of the Whiskey-Lake-U generation and comprises four models with processors from Celeron to Core i7. All four models support two digital video outputs for UHD/4K displays with 60 Hz and one 2.5" drive that is up to 15 mm in height as well as one M.2-2280 NVMe SSD card. Professional users will appreciate Intel Gigabit-LAN and one serial port which indicates what purposes the NC10 series is mainly intended for: Digital Signage, POS, control, office or even multimedia.
HDMI 2.0
The enhanced version of the popular HDMI standard permits even higher screen resolutions. 4K playback in resolutions of 3.840x2.160 and above promise breathtakingly sharp details. And the audio signal is of course still transmitted via the same cable – creating fewer cables.
High-resolution DisplayPort
The DisplayPort connector allows for connections with digital high-resolution displays. Besides picture signal, DisplayPort cables can also lead digital sounds signals in excellent quality.
Rapid system and program start-up thanks to NVMe support
SSDs are already very fast compared to hard disks. But what is possible thanks to M.2 modules with PCIe Express technology really takes your breath away. The NVMe modules process several gigabytes per second and thus ensure the system starts up in just a few seconds with noticeably shorter program start-up times.
Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
The fastest connection to external peripheral devices available to date
The USB 3.0 connectors of this model allow for data transfer of up to 5 Gbit/s (625 MB/s). This enables external devices such as USB hard disks to be connected and run at nearly the same speed as their internal siblings. USB 3.0 is downward compatible so that also devices of previous USB generations can be hooked up.
Intel chipset inside
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
You can rely on SSD
This is where an energy-saving "Solid State Drive" should be used. This drive technology guarantees extremely short access times, the highest data transmission rates and considerably lower energy consumption compared to conventional hard disks. SSDs have no mechanical components at all, are therefore subject to less wear and tear and consequently benefit from a longer service life.
Just 2.5" HDDs
An extremely compact PC housing offers less space for drives, that's why this Mini-PC uses slimline 2.5-inch hard disks. The advantage of this is that there's less noise, less heat generated and reduced power consumption. However small hard disks in a small housing does not have to mean less memory. Modern 2.5" HDDs are every bit as good as their 3.5" brothers.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.
Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.
Securely attached
The practical VESA mounting surface on the back of the device enables it to be attached to monitor arms or wall mounts. The VESA format is standardised, making it suitable for most mounts.
The interface for the fastest of memory media
Internal drives to be used inside this Mini-PC can transfer data at a speed of up to 6 Gbit/s. Hard drives thus run significantly faster and brand-new media technologies such as SSDs can use their full potential. Be sure to look for SATA 6 Gbit/s.
Shuttle

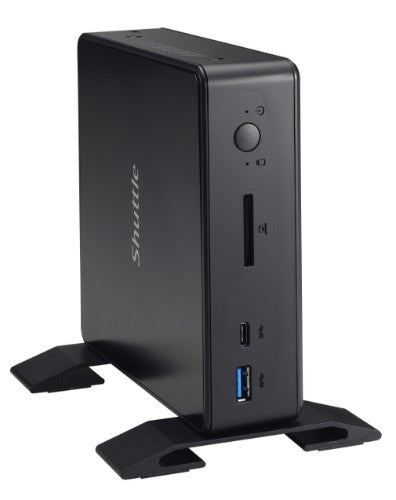

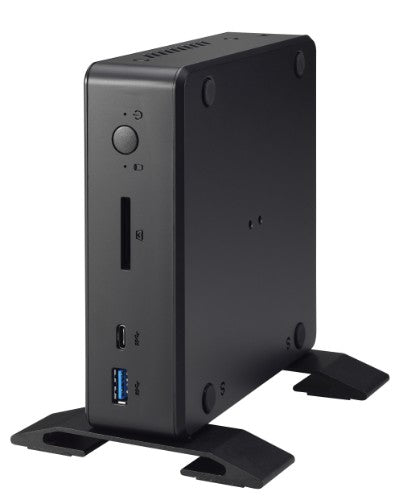

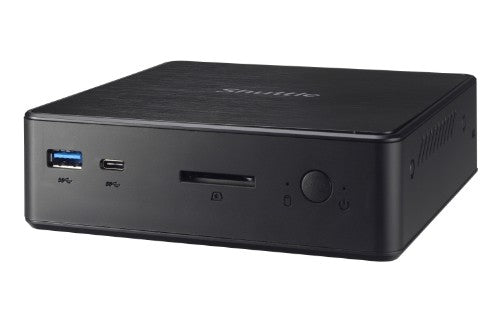

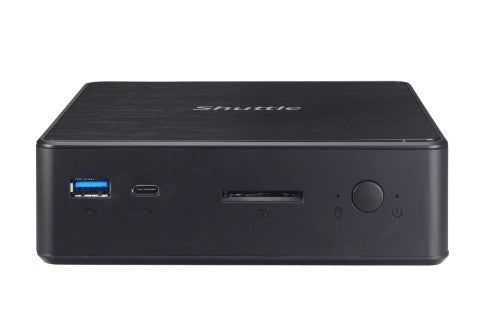

Shuttle NC10U5 PC/workstation barebone Black i5-8265U Intel SoC BGA 1528 1.6 GHz
Part number:
NC10U5
Sale price
$688.58
Regular price
$934.99
Save
$246.41
26%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Fourth generation of Shuttle's XPC nano Series brings Whiskey Lake supportThe NC10 series is powered by Intel's power-saving ULV (ultra-low-voltage) processors of the Whiskey-Lake-U generation and comprises four models with processors from Celeron to Core i7. All four models support two digital video outputs for UHD/4K displays with 60 Hz and one 2.5" drive that is up to 15 mm in height as well as one M.2-2280 NVMe SSD card. Professional users will appreciate Intel Gigabit-LAN and one serial port which indicates what purposes the NC10 series is mainly intended for: Digital Signage, POS, control, office or even multimedia.
HDMI 2.0
The enhanced version of the popular HDMI standard permits even higher screen resolutions. 4K playback in resolutions of 3.840x2.160 and above promise breathtakingly sharp details. And the audio signal is of course still transmitted via the same cable – creating fewer cables.
High-resolution DisplayPort
The DisplayPort connector allows for connections with digital high-resolution displays. Besides picture signal, DisplayPort cables can also lead digital sounds signals in excellent quality.
Rapid system and program start-up thanks to NVMe support
SSDs are already very fast compared to hard disks. But what is possible thanks to M.2 modules with PCIe Express technology really takes your breath away. The NVMe modules process several gigabytes per second and thus ensure the system starts up in just a few seconds with noticeably shorter program start-up times.
Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
The fastest connection to external peripheral devices available to date
The USB 3.0 connectors of this model allow for data transfer of up to 5 Gbit/s (625 MB/s). This enables external devices such as USB hard disks to be connected and run at nearly the same speed as their internal siblings. USB 3.0 is downward compatible so that also devices of previous USB generations can be hooked up.
Intel chipset inside
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
You can rely on SSD
This is where an energy-saving "Solid State Drive" should be used. This drive technology guarantees extremely short access times, the highest data transmission rates and considerably lower energy consumption compared to conventional hard disks. SSDs have no mechanical components at all, are therefore subject to less wear and tear and consequently benefit from a longer service life.
Just 2.5" HDDs
An extremely compact PC housing offers less space for drives, that's why this Mini-PC uses slimline 2.5-inch hard disks. The advantage of this is that there's less noise, less heat generated and reduced power consumption. However small hard disks in a small housing does not have to mean less memory. Modern 2.5" HDDs are every bit as good as their 3.5" brothers.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.
Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.
Securely attached
The practical VESA mounting surface on the back of the device enables it to be attached to monitor arms or wall mounts. The VESA format is standardised, making it suitable for most mounts.
The interface for the fastest of memory media
Internal drives to be used inside this Mini-PC can transfer data at a speed of up to 6 Gbit/s. Hard drives thus run significantly faster and brand-new media technologies such as SSDs can use their full potential. Be sure to look for SATA 6 Gbit/s.
Specifications
| Motherboard | |
|---|---|
| Processor socket | BGA 1528 |
| Motherboard chipset | Intel SoC |
| Processor | |
| Thermal Design Power (TDP) | 15 W |
| L3 cache | 6 MB |
| Built-in processor | Yes |
| Processor model | i5-8265U |
| Processor boost frequency | 3.9 GHz |
| Processor threads | 8 |
| Processor frequency | 1.6 GHz |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor cores | 4 |
| Processor family | Intel® Core™ i5 |
| Motherboard chipset | Intel SoC |
| Processor manufacturer | Intel |
| Processor codename | Whiskey Lake |
| CPU configuration (max) | 1 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Memory | |
| Memory voltage | 1.2 V |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 32 GB |
| Video | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 1 |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics 620 |
| Audio | |
| Audio chip | Realtek ALC662 |
| Network | |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel® I211 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |

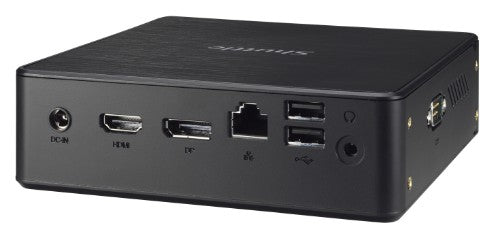

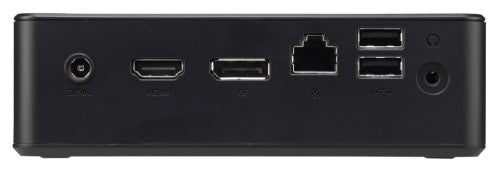

| Ports & interfaces | |
| DisplayPort version | 1.2 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.0a |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Number of M.2 (M) slots | 1 |
| PCI Express configurations | 1x4, 2x2 |
| Design | |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Housing material | Plastic |
| On/off switch | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Safety | CB, BSMI, ETL |
| LED indicators | HDD, Power |
| Cooling type | Active |
| Product colour | Black |
| Certification | CE, FCC, BSMI, RCM, RED, VCCI RoHS, ErP |
| Performance | |
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
| BIOS type | AMI |
| Processor socket | BGA 1528 |
| Motherboard chipset | Intel SoC |
| BIOS memory size | 8 Mbit |
| Audio chip | Realtek ALC662 |
| Harmonized System (HS) code | 84713000 |
| Processor special features | |
| Intel TSX-NI | No |
| Intel® Smart Response Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Thermal Monitoring Technologies | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Embedded options available | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Colour | |
| Product colour | Black |
| Technical details | |
| BIOS type | AMI |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Embedded options available | No |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Quick start guide | Yes |
| Processor cores | 4 |
| Cooling type | Active |
| BIOS memory size | 8 Mbit |
| Sustainability certificates | ENERGY STAR |
| Packaging data | |
| Power cord included | Yes |
| Drivers included | Yes |
| AC adapter included | Yes |
| Package weight | 2.65 lbs (1.2 kg) |
| Certificates | |
| Certification | CE, FCC, BSMI, RCM, RED, VCCI RoHS, ErP |
| Safety | CB, BSMI, ETL |
| Indication | |
| LED indicators | HDD, Power |
| Software | |
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
| Management features | |
| On/off switch | Yes |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 84713000 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Power supply type | External AC adapter |
| Power supply | 65 W |
| Number of power supply units | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 5.59" (142 mm) |
| Depth | 5.59" (142 mm) |
| Height | 1.65" (42 mm) |
| Package weight | 2.65 lbs (1.2 kg) |
| Weight | 14.1 oz (400 g) |
| Packaging content | |
| Power cord included | Yes |
| Drivers included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Other features | |
| Embedded options available | No |
| Country of origin | China |
| Processor ARK ID | 149088 |
