1.77Gbps, Dual-band 2×2:2 MU- MIMO, 250-meter coverage range
Grandstream Networks

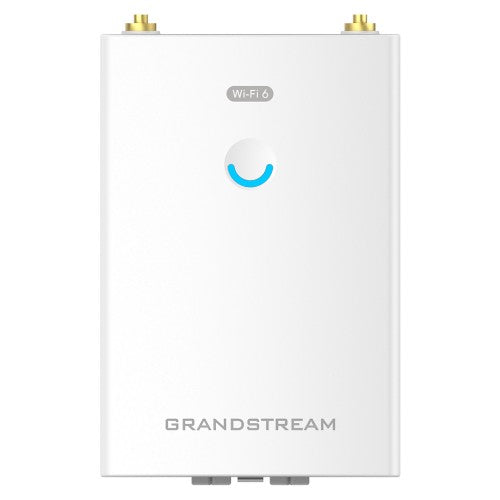

Grandstream Networks GWN7660LR wireless access point 1201 Mbit/s White Power over Ethernet (PoE)
Part number:
GWN7660LR
Sale price
$105.91
Regular price
$139.00
Save
$33.09
24%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
The GWN7660LR is a long-range 802.11ax Wi-Fi 6 access point designed to provide next generation network coverage for indoor and outdoor environments. It offers IP66 weatherproof certified casing, dual-band 2x2:2 MU-MIMO technology and a sophisticated antenna design for extended coverage range of up to 250 meters.Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 1201 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Number of users | 256 user(s) |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum outdoor range | 9842.5" (250 m) |
| Channel bandwidth | 80 MHz |
| Maximum data transfer rate | 1201 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Maximum outdoor range | 9842.5" (250 m) |
| Network | |
| Number of users | 256 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bandwidth | |
| Channel bandwidth | 80 MHz |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Number of users | 256 user(s) |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum outdoor range | 9842.5" (250 m) |
| Channel bandwidth | 80 MHz |
| Maximum data transfer rate | 1201 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Security | |
| Security algorithms | WEP, WPA, WPA2, WPA2-Enterprise, WPA2-PSK, WPA3 |
| Power | |
| Power consumption (typical) | 12.9 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling |
| Product colour | White |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 2 |
| Antenna gain level (max) | 3.5 dBi |
| Antenna connector type | BNC |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Weight & dimensions | |
| Width | 4.53" (115 mm) |
| Depth | 14.1" (358.3 mm) |
| Weight | 24.5 oz (695 g) |
| Height | 1.78" (45.3 mm) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
