A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
Gigabyte

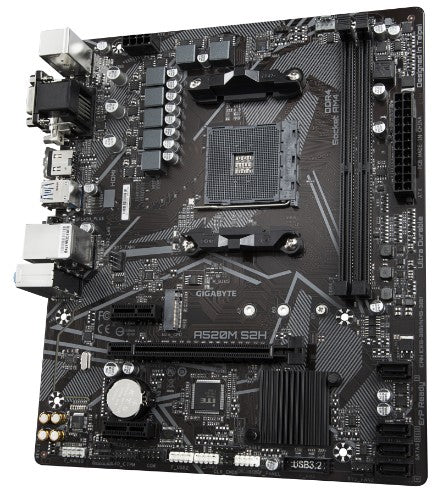

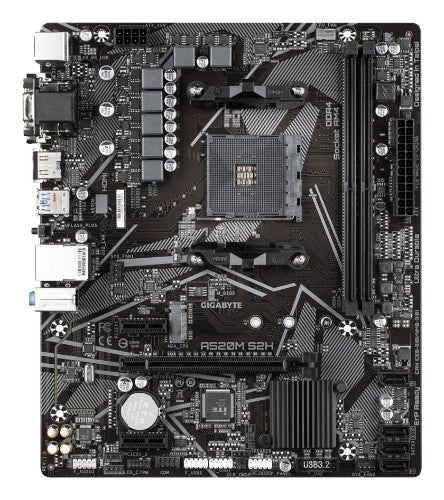

GIGABYTE A520M S2H motherboard AMD A520 Socket AM4 micro ATX
Part number:
A520M S2H
$86.21
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI, DVI-D, D-sub Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| mSATA ports quantity | 0 |
| Power fan connector | Yes |
| Number of SATA connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of chassis fan connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Supported processor sockets | Socket AM4 |
| On-board graphics card | No |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Maximum internal memory supported by processor | 64 GB |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM4 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Maximum internal memory supported by processor | 64 GB |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported processor sockets | Socket AM4 |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz |
| Maximum internal memory | 64 GB |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | No |
| HDCP | Yes |

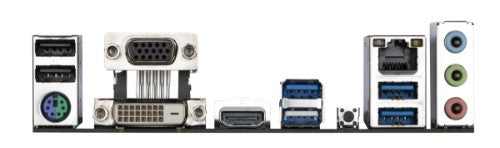

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Supported processor sockets | Socket AM4 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Harmonized System (HS) code | 84733020 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| HDCP | Yes |
| Packaging data | |
| Package width | 10.4" (265 mm) |
| Package depth | 9.25" (235 mm) |
| Package height | 2.05" (52 mm) |
| Package weight | 26.1 oz (740 g) |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 0.106 oz (3 g) |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.00247 oz (0.0700 g) |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Height | 1.38" (35 mm) |
| Package width | 10.4" (265 mm) |
| Package depth | 9.25" (235 mm) |
| Package height | 2.05" (52 mm) |
| Package weight | 26.1 oz (740 g) |
| Width | 9.61" (244 mm) |
| Depth | 8.07" (205 mm) |
| Packaging content | |
| Batteries included | Yes |
| Other features | |
| Height | 1.38" (35 mm) |
| Package width | 10.4" (265 mm) |
| Package depth | 9.25" (235 mm) |
| Package height | 2.05" (52 mm) |
| Package weight | 26.1 oz (740 g) |
| mSATA ports quantity | 0 |
